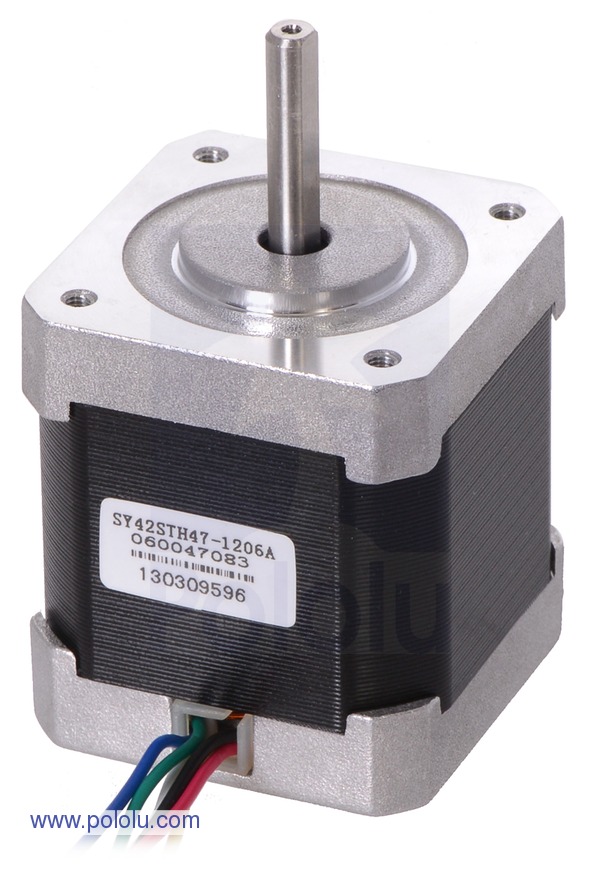

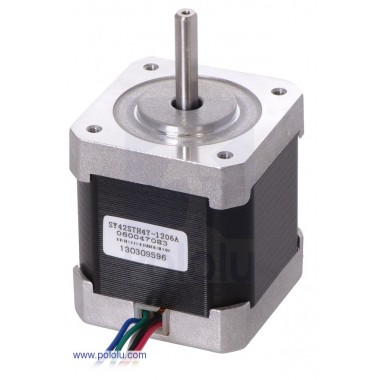

Motor stepper de 200 pasos por vuelta NEMA 17
OFERTA HASTA AGOTAR STOCK. Motor stepper NEMA 17 de 200 pasos por vuelta (1,8°por paso) y 3.2kgcm de torque.
COD: P001200
Peso: 0.370 Kg
Disponibilidad: En Stock
ARS 20297.00
El producto no está disponible para la venta en este momento
Características
Overview

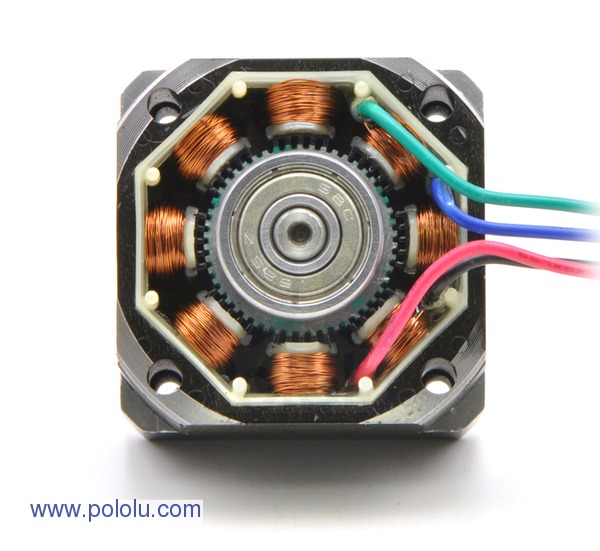

This hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil). We recommend using it as a bipolar stepper motor.
Specifications
- Size: 42.3 mm square × 48 mm, not including the shaft (NEMA 17)
- Weight: 350 g (13 oz)
- Shaft diameter: 5 mm “D”
- Steps per revolution: 200
- Current rating: 1.2 A per coil
- Voltage rating: 4 V
- Resistance: 3.3 Ohm per coil

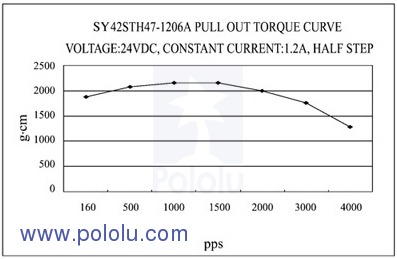

- Holding torque: 3.2 kg-cm (44 oz-in)
- Inductance: 2.8 mH per coil
- Lead length: 30 cm (12 in)

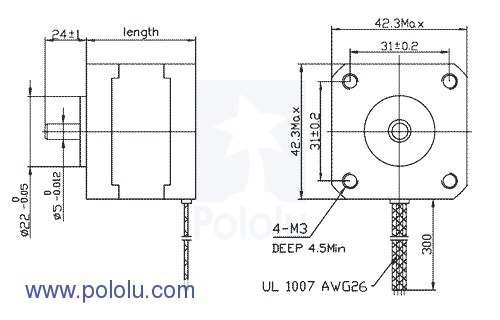

Dimensions
| Size: | 42.3 mm square × 48 mm (NEMA 17) |
|---|---|
| Weight: | 350 g |
| Shaft diameter: | 5 mm |
General specifications
| Shaft type: | 5 mm "D" |
|---|---|
| Steps per revolution: | 200 |
| Current rating: | 1200 mA |
| Voltage rating: | 4 V |
| Holding torque: | 44 oz·in |
| Resistance: | 3.3 Ohm |
| Inductance per phase: | 2.8 mH |
| Number of leads: | 6 |
| Lead length: | 12 in |
