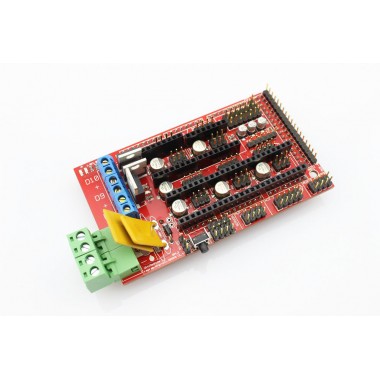

3D Printer RAMPS 1.4 Control Board Arduino Mega Shield

3D Printer RAMPS 1.4 Control Board Arduino Mega Shield

Shield para Arduino Mega para control de impresoras 3D RepRap 1.4. Incluye 5 drivers A4988.

COD: EP3D00914RA

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 45279.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The RAMPS is an all-in-one design to fit the necessary components for a 3D printer into one plug in shield for an Arduino MEGA. The plug in shield design includes plug in stepper drivers and extruder control electronics sockets for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Ramps boards are the heart of most DIY 3D printers on the market and a nice clean compact way to integrate all the systems into a compact enclosure mountable format.

Features

  • Expandable to control other accessories.
  • 3 Mosfets for heater / fan outputs and 3 thermistor circuits.
  • Fused at 5A for additional safety and component protection.
  • Heated bed control with additional 11A fuse.
  • Fits 5 A4988 (or DRV8825) stepper driver boards.
  • Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs.
  • I2C and SPI pins left available for future expansion.
  • All the Mosfets are hooked into PWM pins for versatility.
  • Servo style connectors are used to connect to the end stops, motors, and LEDs. These connectors are rated for 3A, very compact, and globally available.
  • SD Card add on available.
  • LEDs indicate when heater outputs on.
  • Option to connect 2 motors to Z for Prusa Mendel.

Download& External Link

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (30/11/2015 - 16:56)

Hola Agustín, abajo de todo en la descripción del producto hay un link hacia el Arduino Mega. Saludos!

Agustin (30/11/2015 - 12:27)

Hola, quería saber si el kit viene con el arduino mega y si no es asi, donde lo encuentro. Muchas gracias, saludos!

OpenHacks (20/07/2015 - 15:31)

Lautaro, la placa es original e incluye 5 drivers A4988. Saludos!

Lautaro (20/07/2015 - 13:13)

Buenas, la placa RAMPS es original? se vende sin los drivers? Saludos.

Juan Pablo (11/07/2014 - 10:52)

Hola Bruno, Si, los drivers vienen incluidos. El producto viene armado, solo habría que insertar los drivers en los slots. Saludos!

Bruno (08/07/2014 - 13:26)

Buenas tardes, queria saber si viene todo ensablado o es un kit para armar? y si trae los 5 drivers para los motores. Gracias
