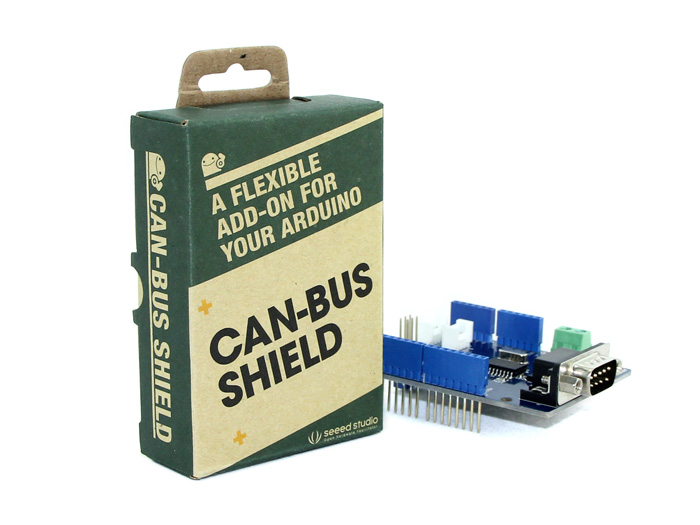

CAN-BUS Shield
Shield Arduino para comunicación CAN BUS con interfaz SPI.
COD: SESLD01105P
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 51320.00
El producto no está disponible para la venta en este momento
Características

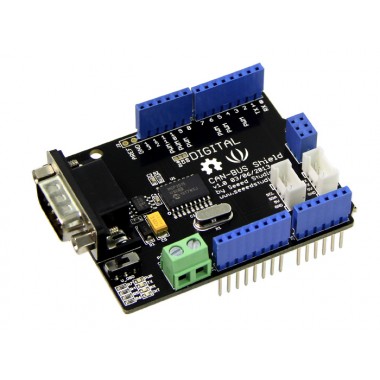

CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 CAN transceiver to give your Arduino/Seeeduino CAN-BUS capibility. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device or data logger.
Features
- Implements CAN V2.0B at up to 1 Mb/s
- SPI Interface up to 10 MHz
- Standard (11 bit) and extended (29 bit) data and remote frames
- Two receive buffers with prioritized message storage
- Industrial standard 9 pin sub-D connector
- Two LED indicators
More information
Galería de Imágenes
Archivos
Wiki (2661 Kb)
CAN-BUS Shield eagle file (61 Kb)Comentarios
Escribir ComentarioOpenHacks (04/02/2016 - 15:27)
Hola Gonzalo, de momento no tenemos ningún módulo que se pueda comunicar con red profibus. Saludos!
Gonzalo (04/02/2016 - 00:43)
Buenas noches, quisiera saber su tienen algún shield o placa para comunicarme con una red profibus. Saludos
