Productos

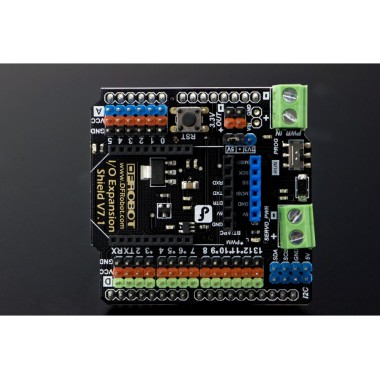

IO Expansion Shield for Arduino V7.1
Módulo de expansión IO para Arduino con interfaz XBee. Utiliza comunicación I2C y soporta operación en 3.3V y 5V.
COD: DFR0265
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 53313.00
El producto no está disponible para la venta en este momento
Características
Introduction
The new IO Expansion Shield V7.1 has arrived, from the best selling family of IO expansion shield for Arduino. For the past few years these expansion shields have been aiding thousands of makers to create,to expand, to share their sparkles of idea and ingenuity, and now comes our new v7.1.
Features
- Compatible with the new Arduino Due
- 3.3V/5V operating voltage select
- Switch for wireless communtcation & programme
- More Easily recognitive interfaces
- Colorful header for illustrating digital or analog pins
- Immersion gold surface
Specification
- Compatible with Arduino UNO,Mega,DUE...
- 3.3V voltage output interface
- I2C interface
- Support Xbee (Xbee pro)
- Support Bluetooth
- Support APC220
- Support SD card read/write
Wiki (376 Kb)
