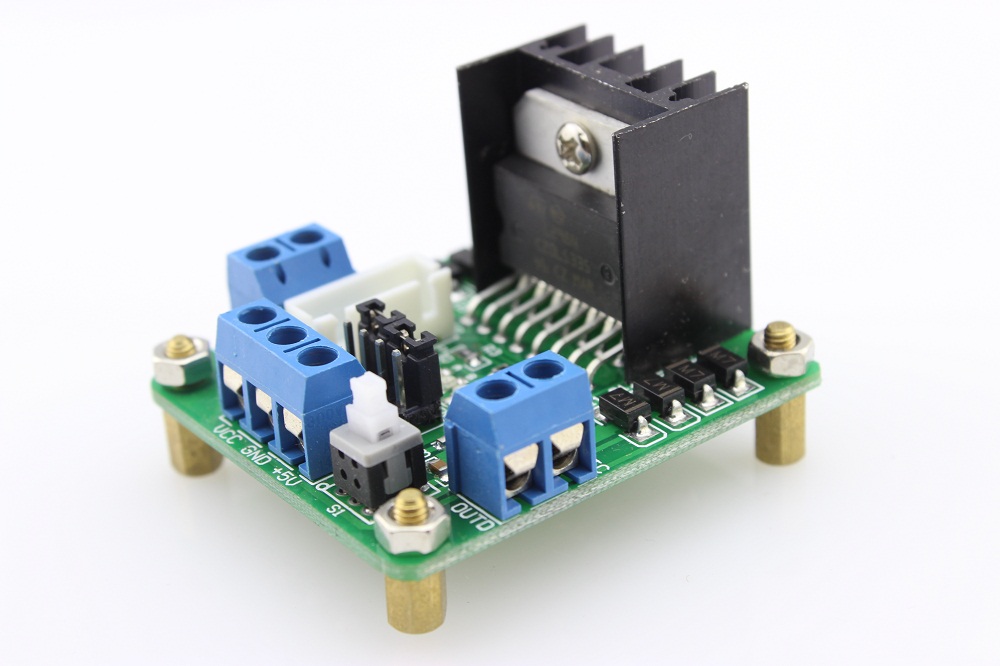

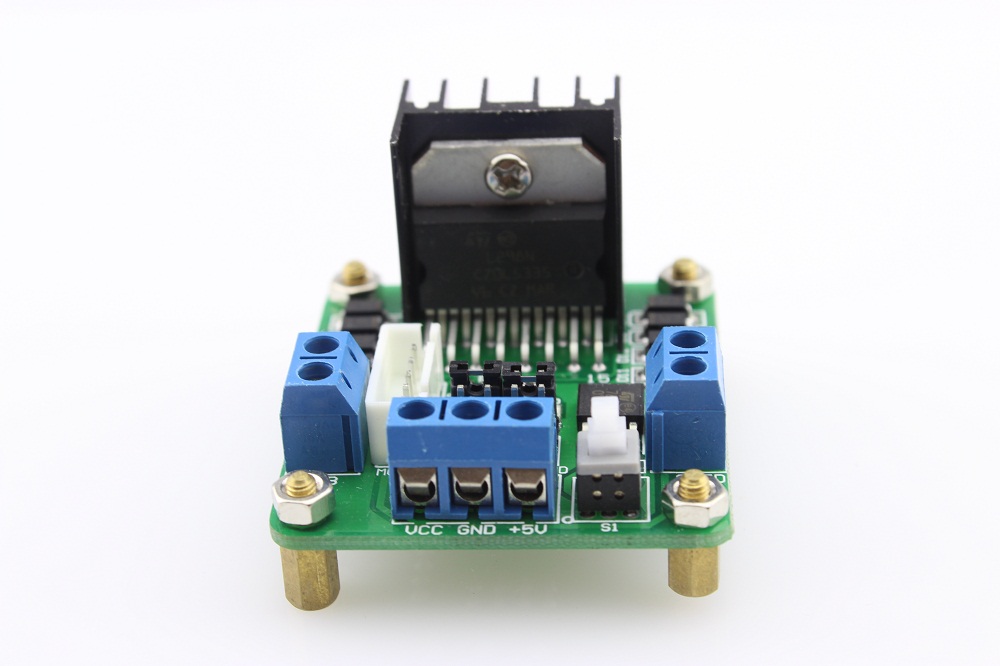

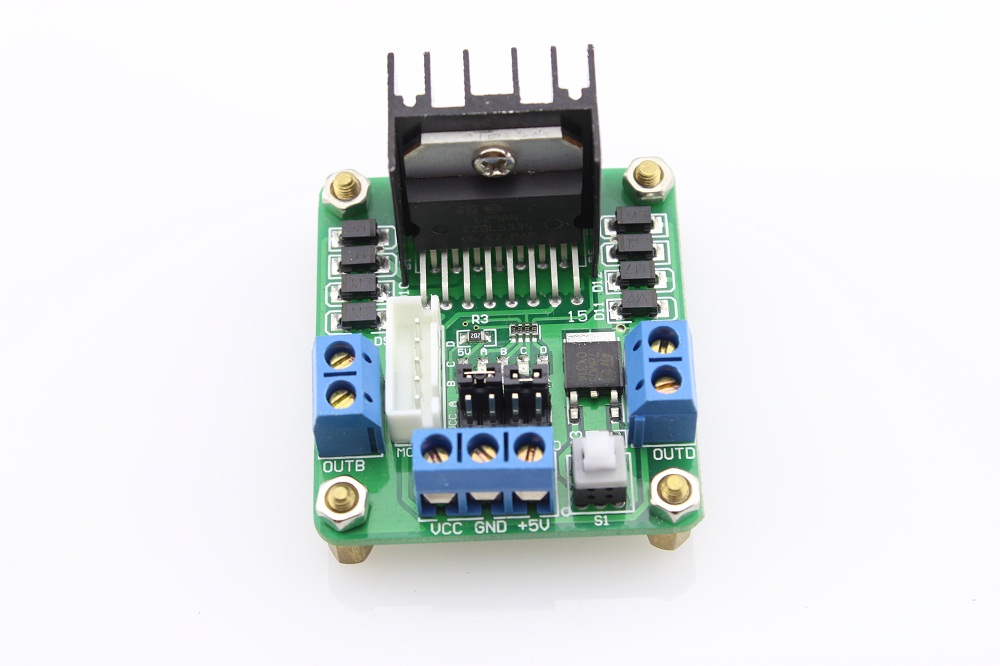

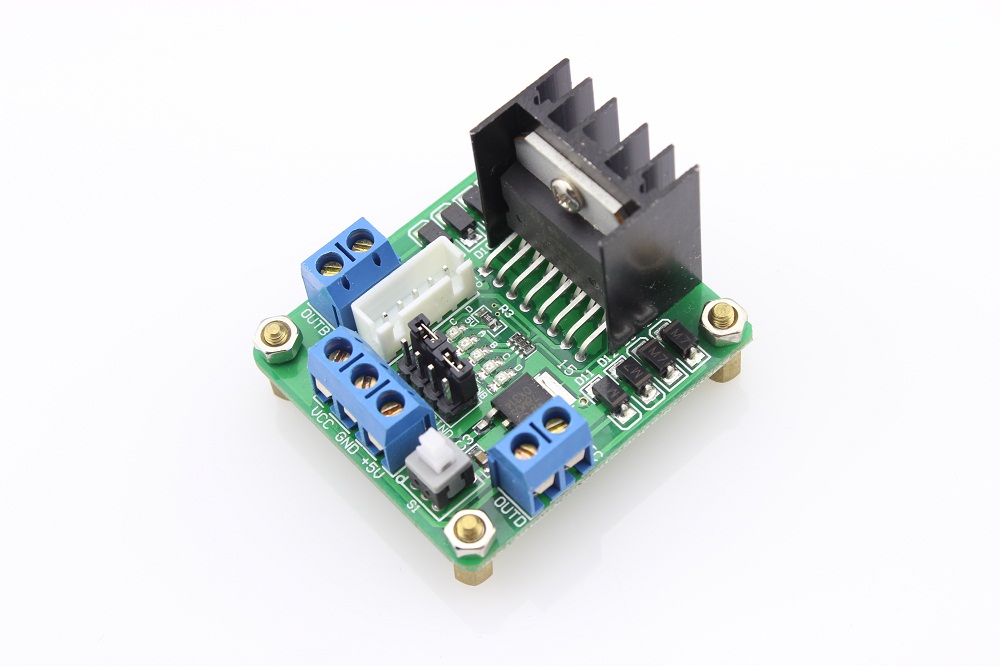

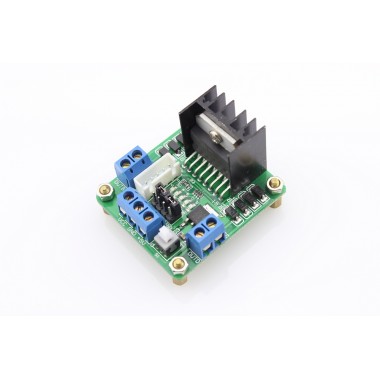

L298 Dual H-Bridge Motor Driver

L298 Dual H-Bridge Motor Driver

Módulo dual driver de motores de tipo puente H, basado en L298. Permite el control de 2 motores independientes de hasta 2A o un motor stepper.

COD: ERDR00298N

Peso: 0.034 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 13187.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This module is based on the very popular L298 Dual H-Bridge Motor Driver Integrated Circuit. The circuit will allow you to easily and independently control two motors of up to 2A each in both directions or one stepper motor.

It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor. It can also be interfaced with simple manual switches, TTL logic gates, relays, etc.

Specification

  • Motor supply: 7 to 24 VDC
  • Control Logic: Standard TTL Logic Level
  • Output Power: Up to 2 A each
  • Enable and Direction Control Pins
  • Heatsink
  • Power-On LED indicator
  • 4 Direction LED indicators
