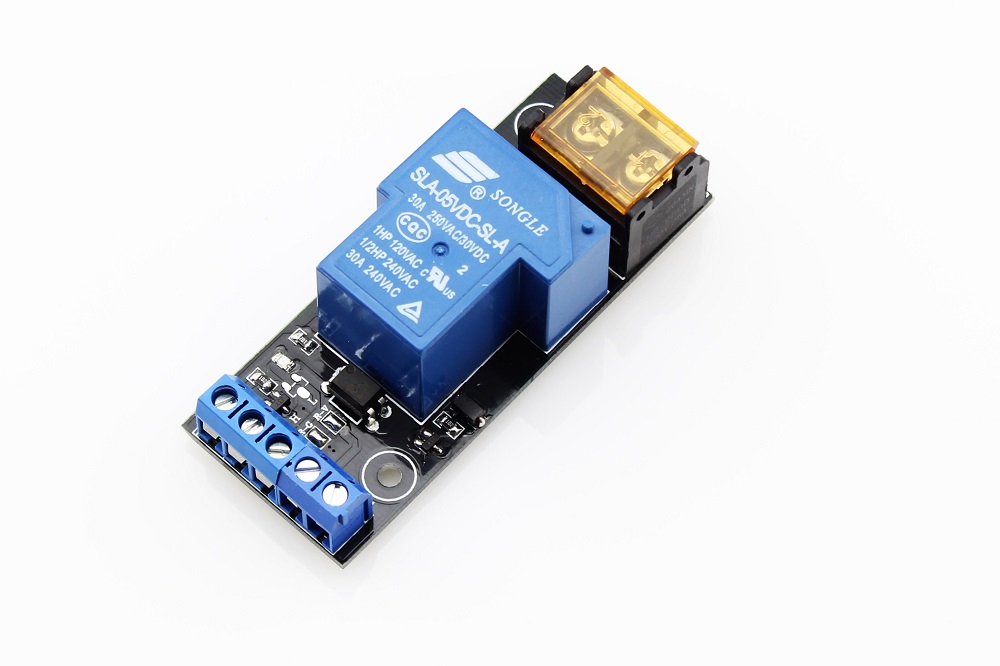

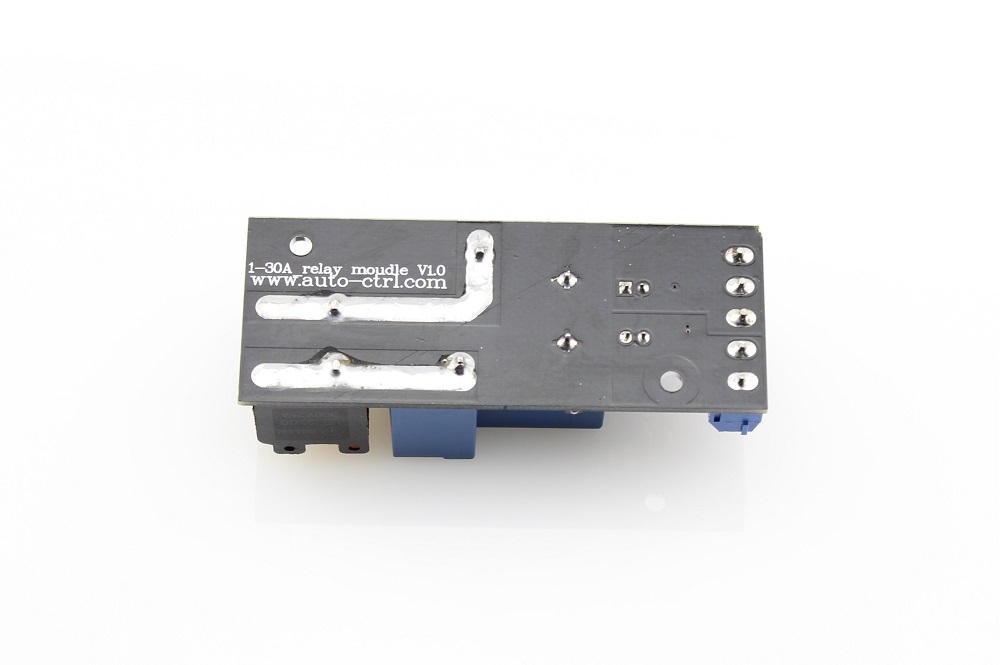

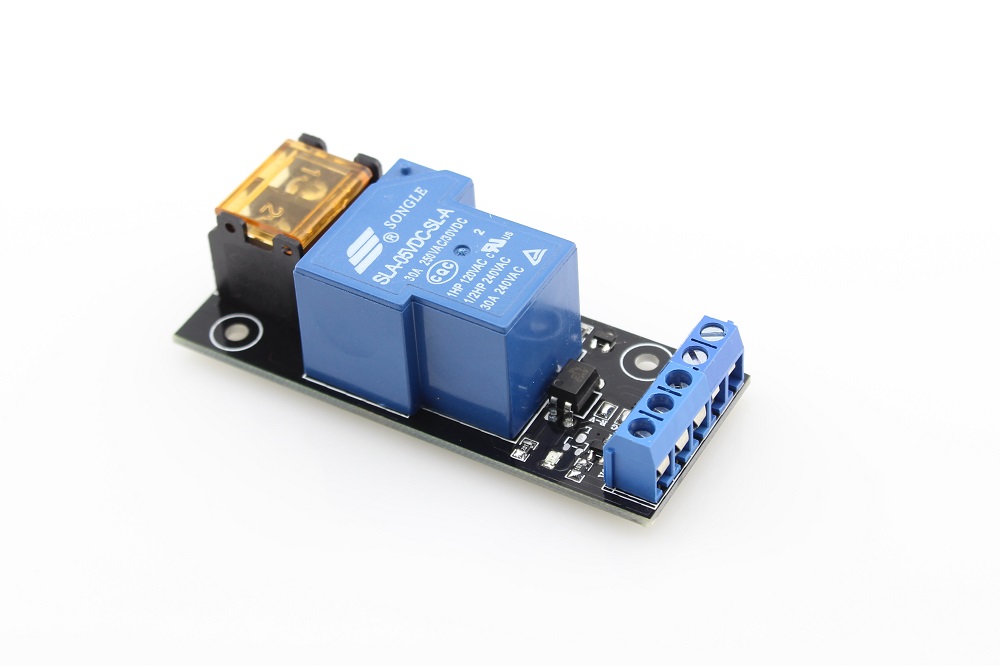

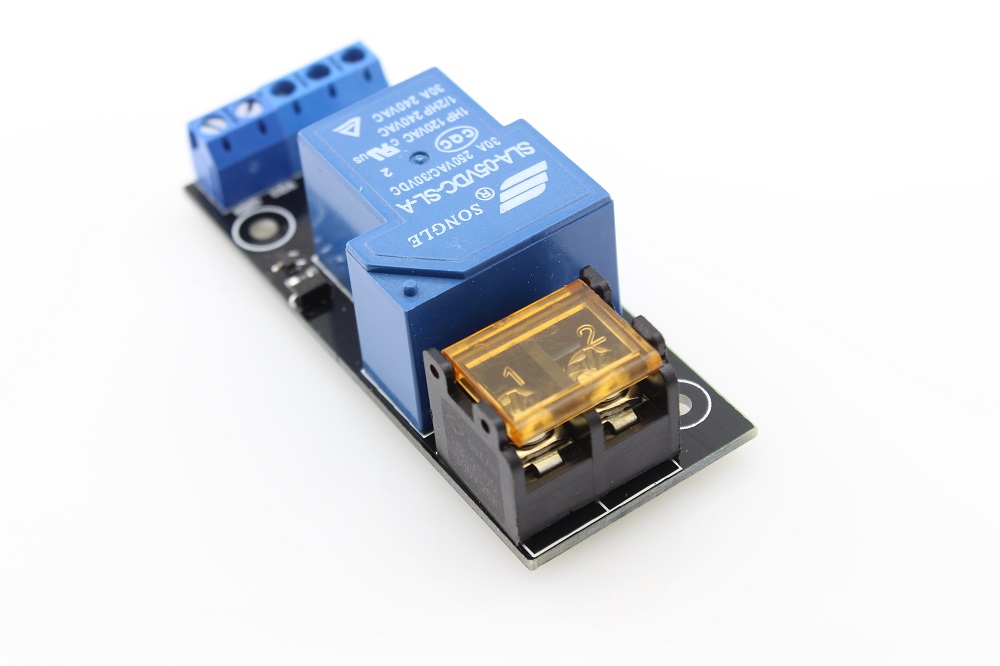

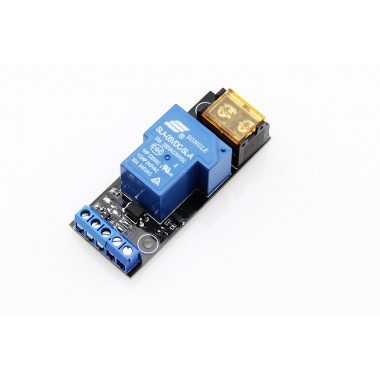

Large Current Relay Module- 30A
Módule relé de hasta 30A/240VAC
COD: EARE01101SL
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 9749.00
El producto no está disponible para la venta en este momento
Características
The Relay is the most common used module in actually application such as home automation, and sometimes you need to control large current such as the air conditioning/water heater. That is what this Large Current Relay Module can be help.
This Large Current Relay Module is a high quality Single Pole Souble Throw Relay(SPST). When the relay not triggered, the 2 outputs is disconnected; when the relay triggered(Logic Low), the 2 outputs connected, the max current can be up to 30A@240VAC or 30A@30VDC, which would be enough for most of the home appliances.
Specification
- Size: 75mm x 30mm x 22mm;
- Control Voltage: 5V
- Nominal Current: 185mA
SLA-05VDC-SL-A Datasheet (71 Kb)

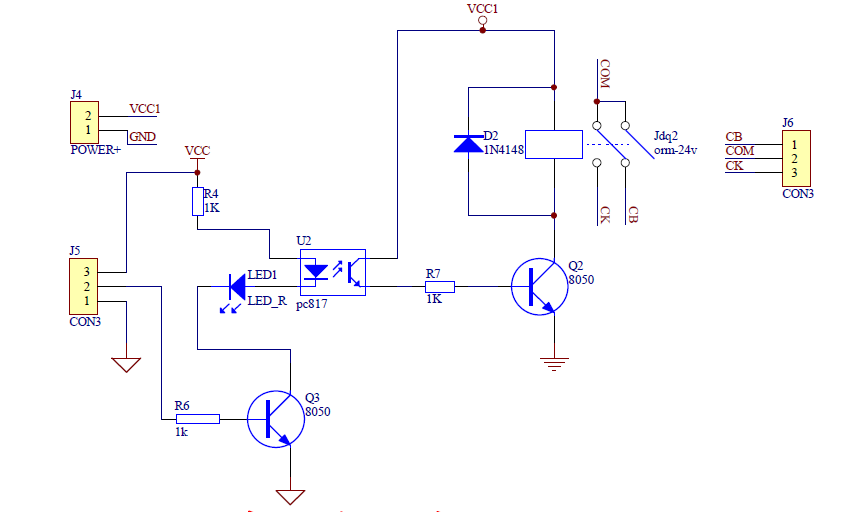

Large Current Relay Module Schematic (29 Kb)
