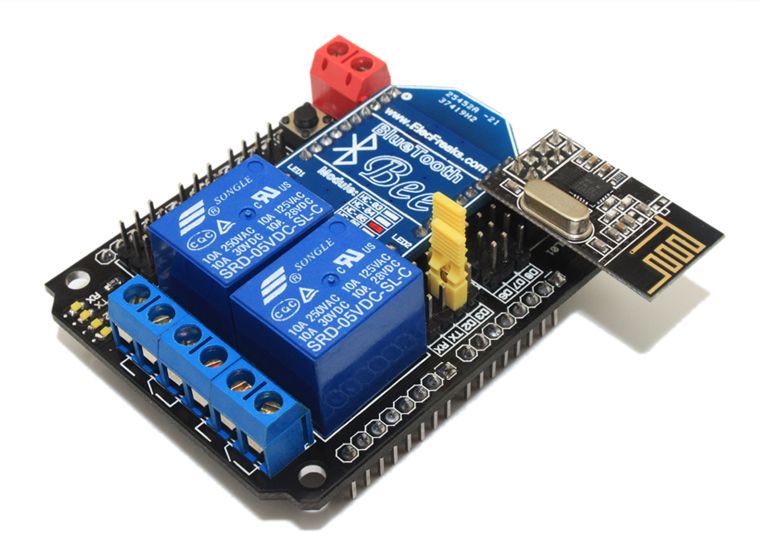

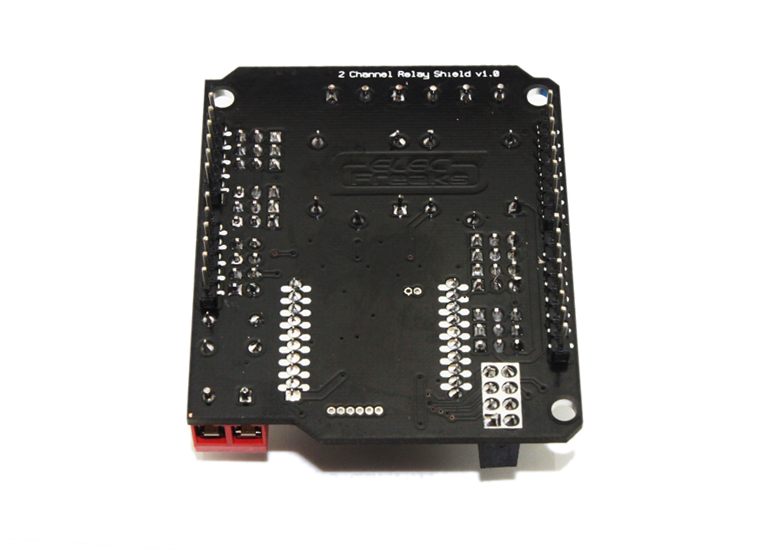

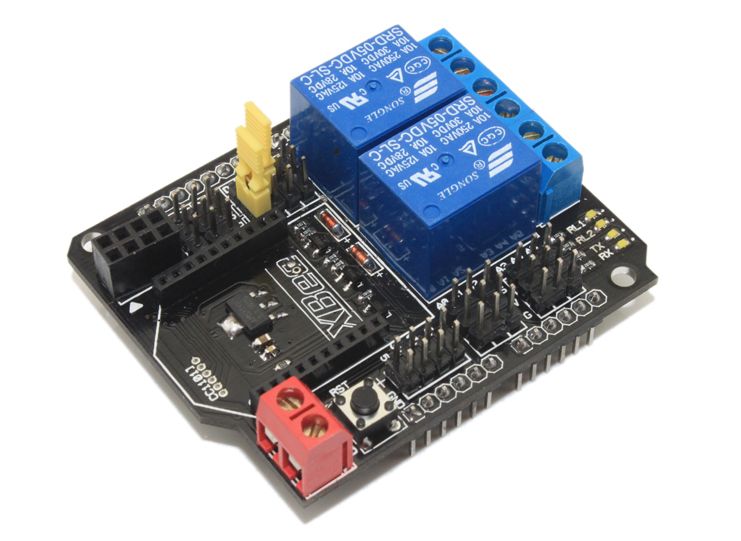

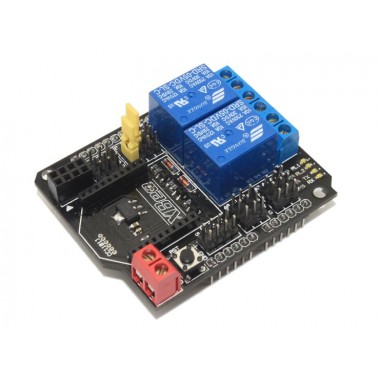

2 channel Relay Shield With XBee/BTBee interface SHD_RL01

2 channel Relay Shield With XBee/BTBee interface SHD_RL01

Shield Arduino con 2 relés. La máxima corriente de conmutación puede ser 10A/250VAC o 10A/30VDC. Puede ser directamente controlado por Arduino a través de las entradas y salidas digitales. Puede ser controlado inalámbricamente con Xbee, si se conecta el módulo apropiado.

COD: EF02023

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 43126.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

The Relay shield is capable of controlling 2 relays. The max switching power could be 10A/250VAC or 10A/30VDC. It could be directly controlled by Arduino through digital IOs with external 9v supply. With buildin xbee/BTBee type socket, it can be wirelessly controlled via Xbee/BTBee(HC-06). Make it an ideal solution for home automation and robotics purpose.

Specification

  • 2 channel Relay
  • With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
  • Wiht 6 sensor and 3 servo interface
  • Contact Rating 10A AC 250V / DC 30V
  • Max Switching Voltage AC 250V / DC 30V
  • Max Switching Current 10A
  • Electrical Life (Min) 100,000 Operations
  • Mechanical Life (Min) 10,000,000 Operations
  • Safety Standard(relay) UL cUL TUV CQC
  • Coil Working Voltage 5VDC

Documents:

    • Schematic



    Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
