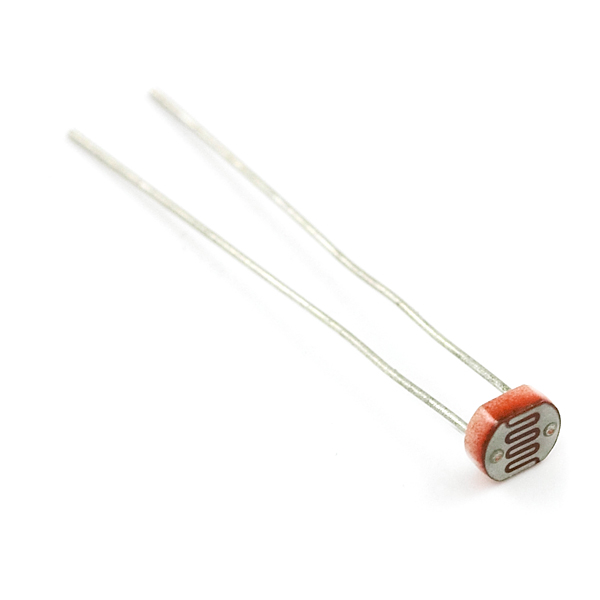

Mini Photocell
LDR -Foto Resistor - Resistencia bajo luz: ~1k Ohm Resistencia a oscuras: ~10k Ohm
COD: SFSEN09088
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 514.00
El producto no está disponible para la venta en este momento
Características

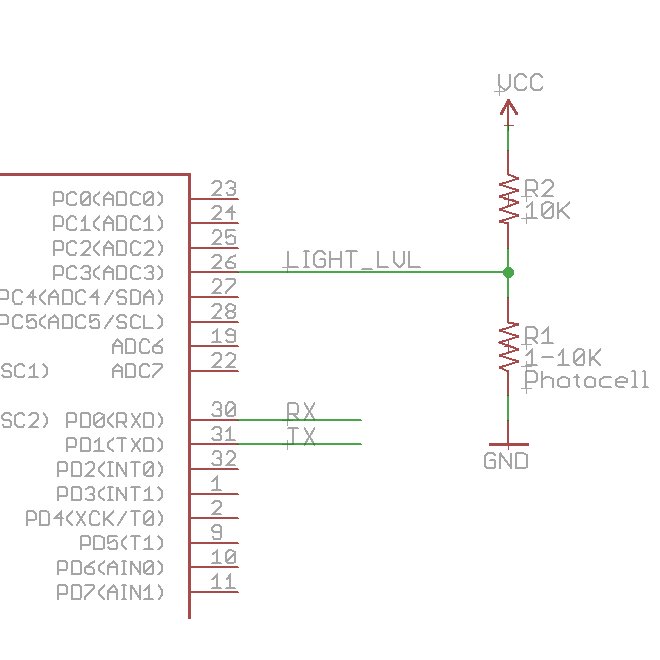

This is a very small light sensor. A photocell changes (also called a photodetector, photo resistor, CdS or photoconductive cell) resistance depending on the amount of light it is exposed to. These little sensors make great ambient light triggers (when light in the room turns on, do something).
Features:
- Light resistance : ~1k Ohm
- Dark resistance : ~10k Ohm
- Max voltage : 150V
- Max power: 100mW

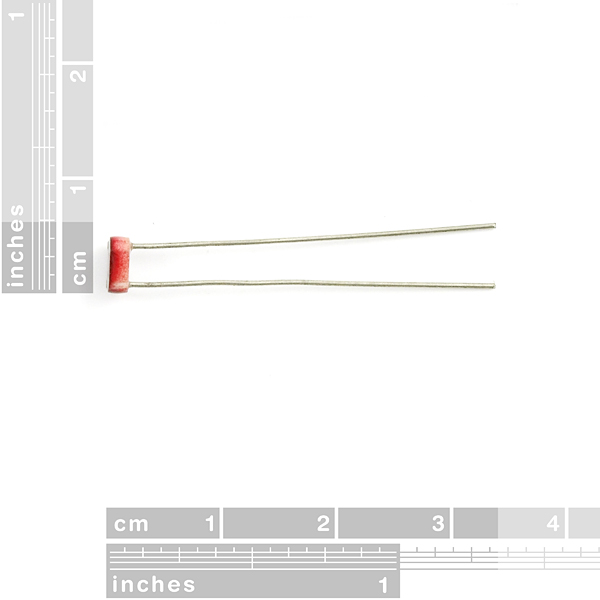

Dimensions:
- 2 x 4 x 5mm
- 4mm between pins
- 31mm lead length
Documents:
sen-09088.pdf (5750 Kb)
