WiiChuck Adapter
Adaptador para conectar el control Wii nunchuk con Arduino
COD: SFDEV09281
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 5542.00
El producto no está disponible para la venta en este momento
Características
Description:

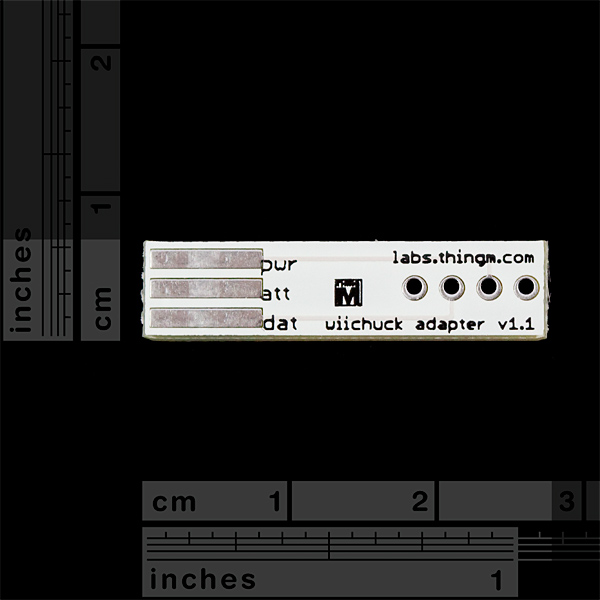

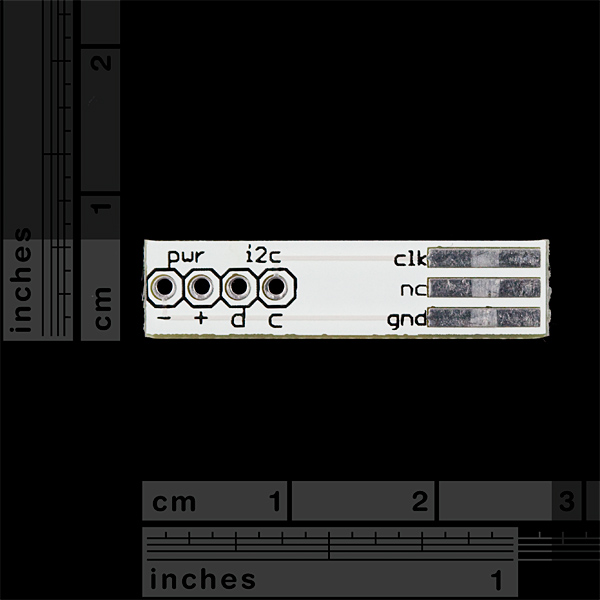

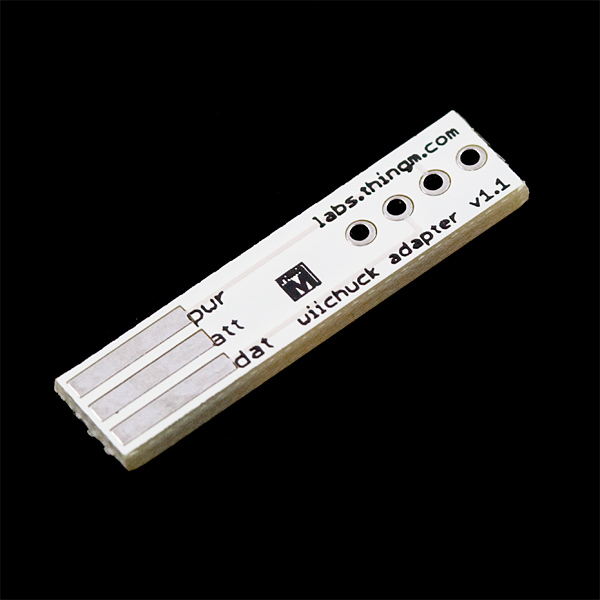

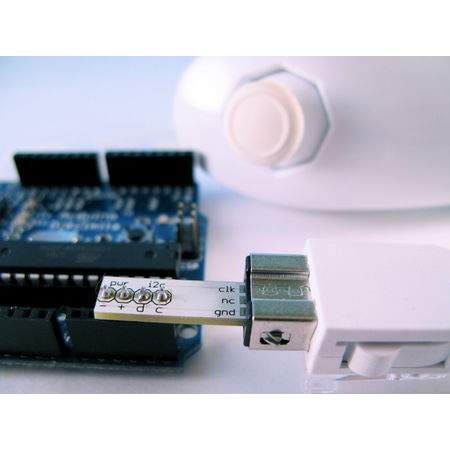

The WiiChuck Adapter is a small PCB that is designed to be inserted into the connector of a Nintendo Wii Nunchuck to provide access to all 4 wires of the remote. The power, ground and two-wire interface of the Nunchuck are all broken out to a 4-pin 0.1" pitch header.
The Wii Nunchuck is loaded with features -- a 2-axis joystick, two buttons and a 3 axis ±2g accelerometer -- and any device capable of I2C can communicate with it! The WiiChuck allows you to interface with the Nunchuck without making a mess and cutting the wires.
Documents:
Arduino Demo (3 Kb)
Adapter Pinout (31 Kb)
