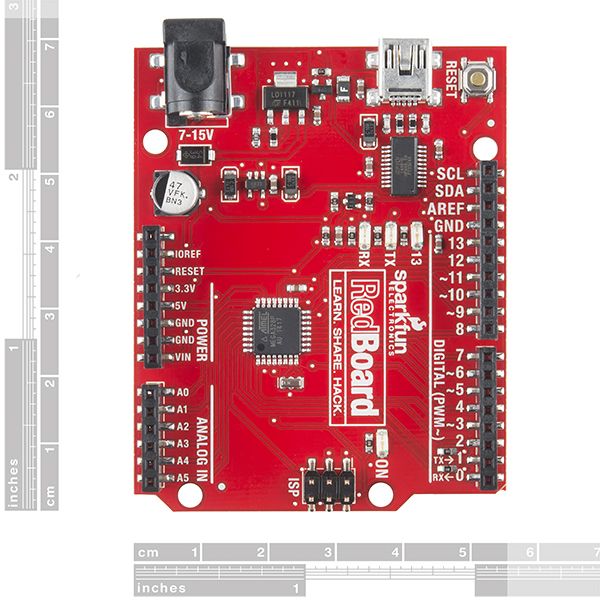

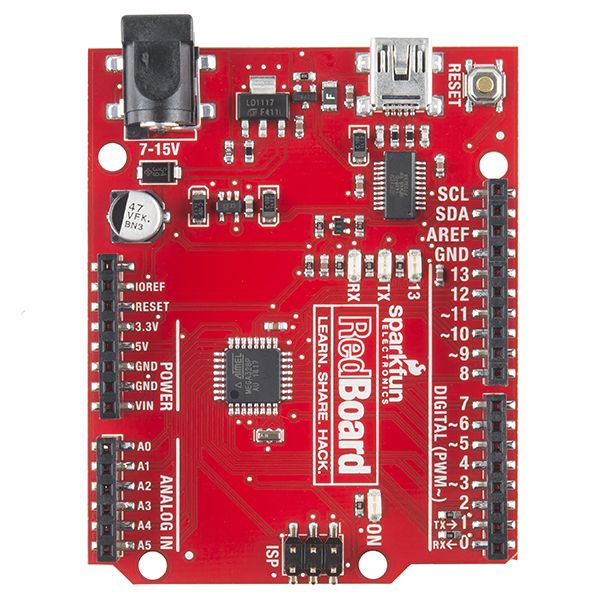

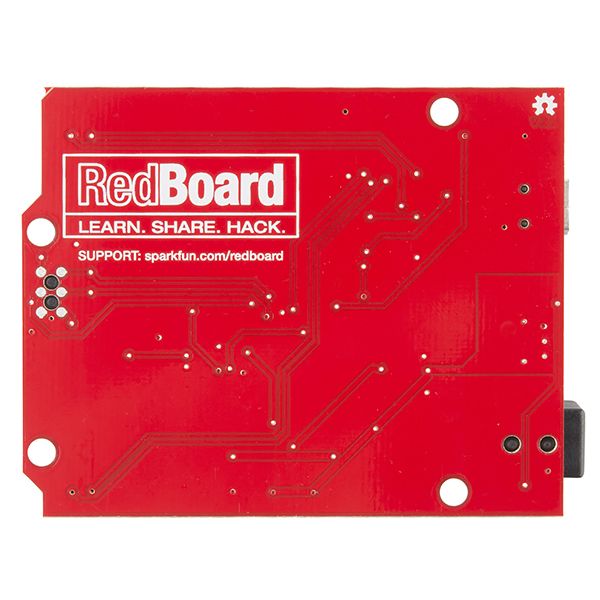

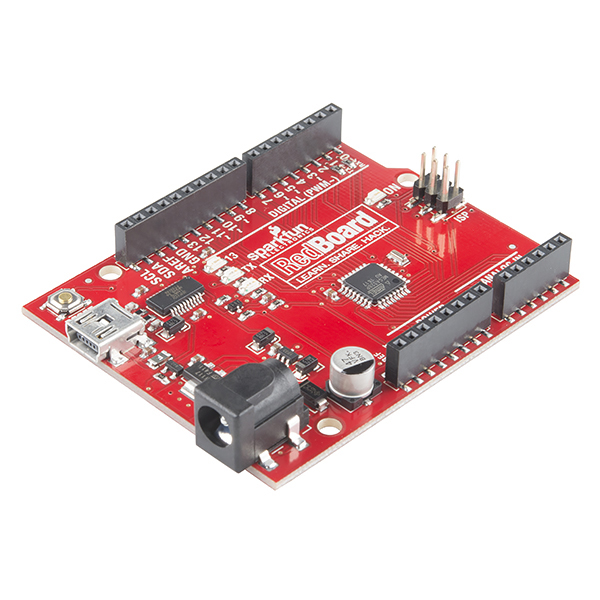

SparkFun RedBoard - Programmed with Arduino
Nuevo modelo RedBoard - Placa compatible con Arduino UNO con bootloader Optiboot y adaptador USB FTDI
COD: SFDEV12757
Peso: 0.031 Kg
Disponibilidad: En Stock
ARS 41723.00
El producto no está disponible para la venta en este momento
Características
At SparkFun we use many Arduinos and we’re always looking for the simplest, most stable one. Each board is a bit different and no one board has everything we want, so we decided to make our own version that combines all our favorite features. The SparkFun RedBoard combines the simplicity of the UNO’s Optiboot bootloader (which is used in the Pro series), the stability of the FTDI (which we all missed after the Duemilanove was discontinued) and the R3 shield compatibility of the latest Arduino UNO R3.
This version adds an SMD ISP header for use with shields.
You can power the RedBoard over USB or through the barrel jack. The on-board power regulator can handle anything from 7 to 15VDC. Check out the related items below for a compatible wall-wart power supply.
Not sure which Arduino or Arduino-compatible board is right for you? Check out our Arduino Buying Guide!
Features:
- ATmega328 microcontroller with Optiboot (UNO) Bootloader
- USB Programming Facilitated by the Ubiquitous FTDI FT231X
- Input voltage - 7-15V
- 0-5V outputs with 3.3V compatible inputs
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- ISP Header
- 32k Flash Memory
- 16MHz Clock Speed
- All SMD Construction
- R3 Shield Compatible
- Red PCB!
Documents:
- Schematic
- Eagle Files
- FTDI Drivers
- Product Video
- Hookup Guide
- RedBoard vs Uno Comparison
- GitHub (Design Files)
