PiTFT - Assembled 480x320 3.5 TFT+Touchscreen for Raspberry Pi
Display táctil resistivo de 3.5" y 480x320 pixels y 16-bit de color (para Raspberry Pi, modelos A,B y B+, y Raspberry Pi 2 modelo B).
COD: D002097
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 88586.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION

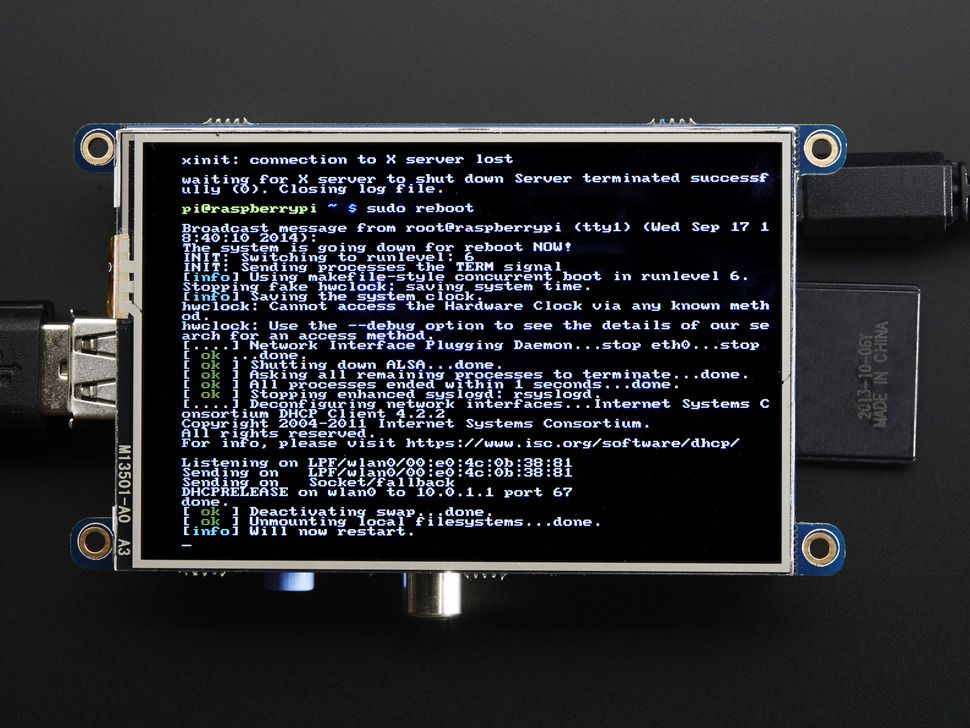

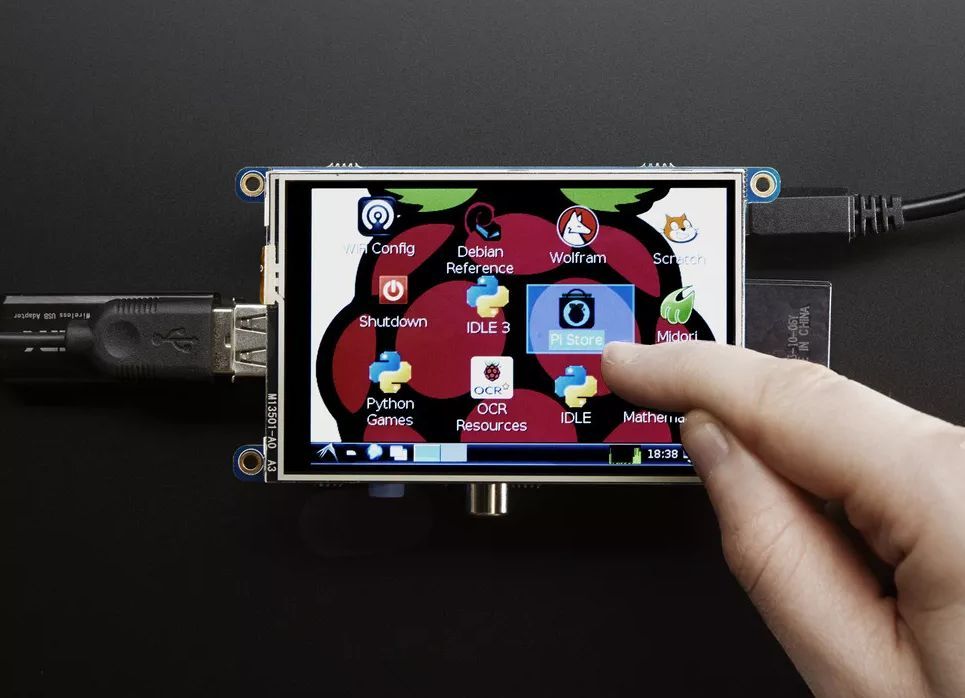

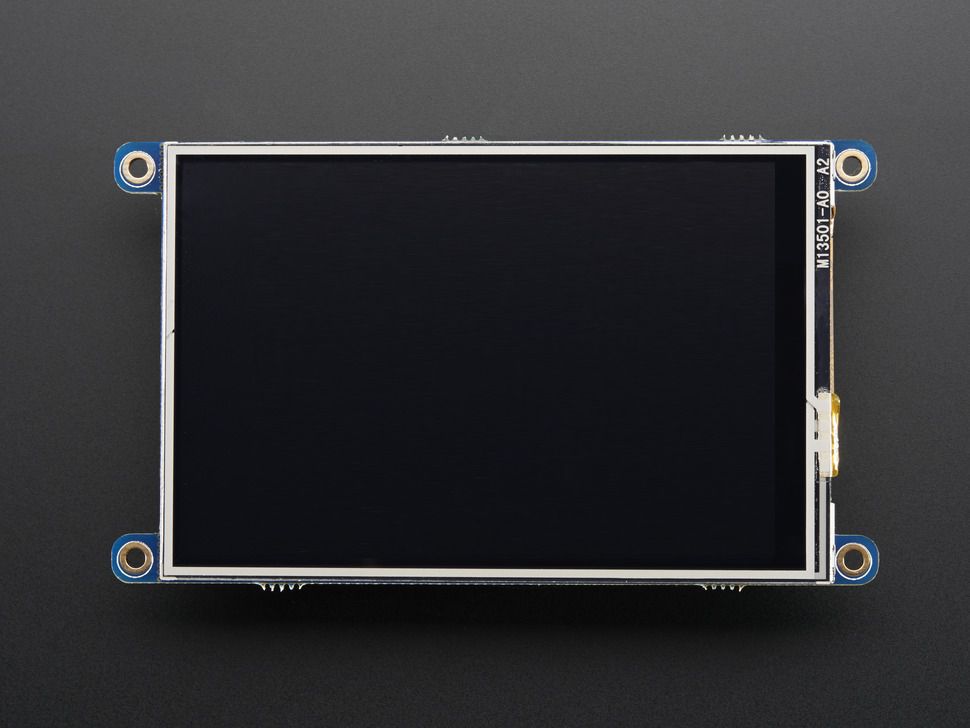

Is this not the cutest, little display for the Raspberry Pi? It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay so is slightly larger than our popular original. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!

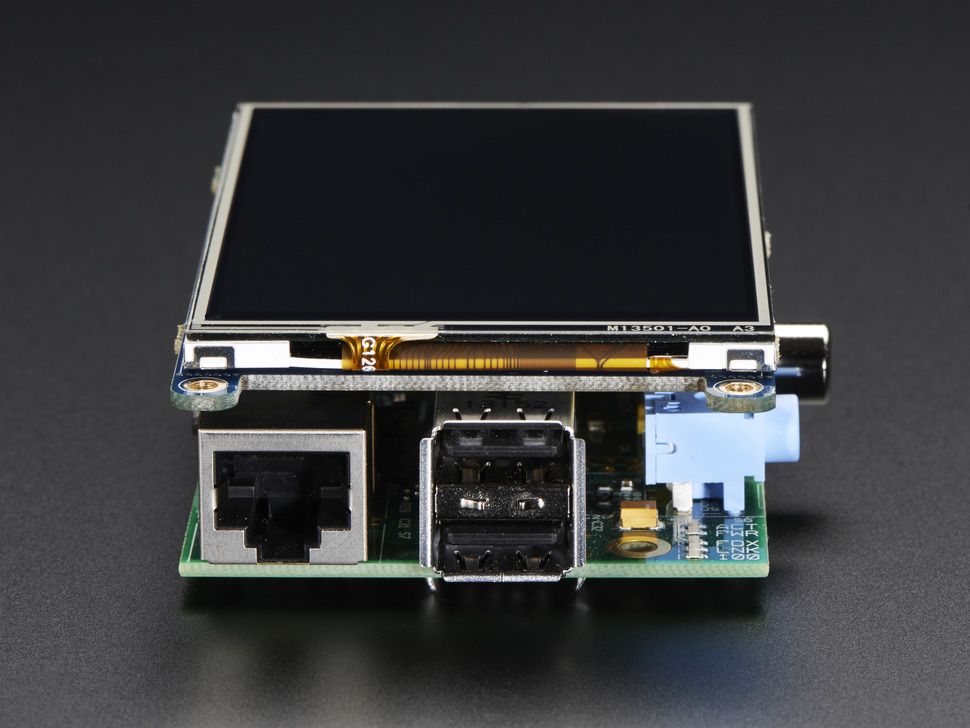

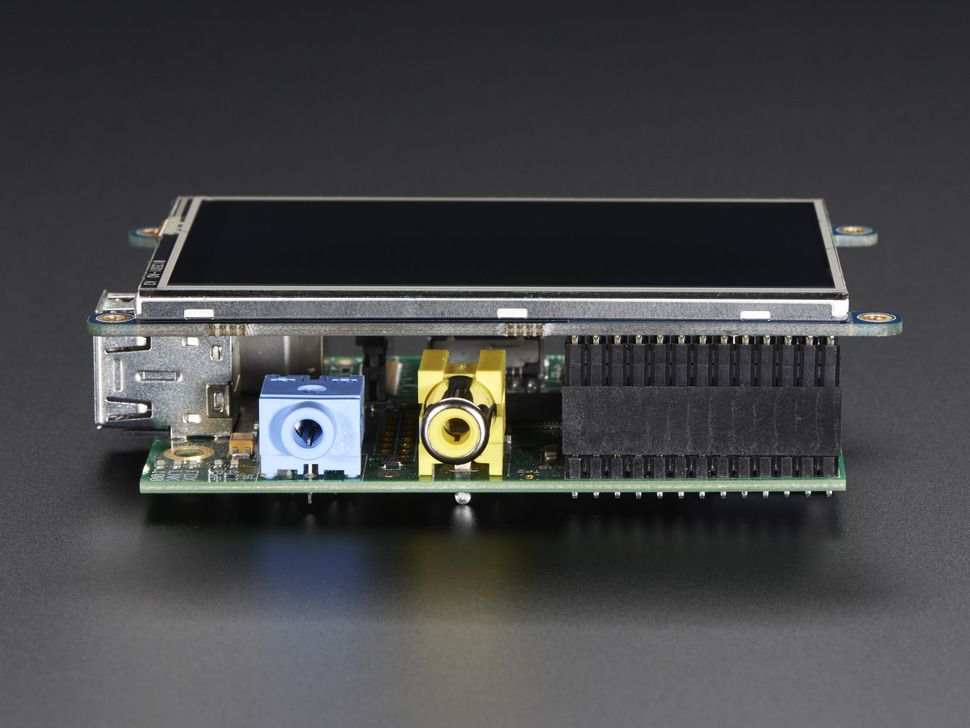

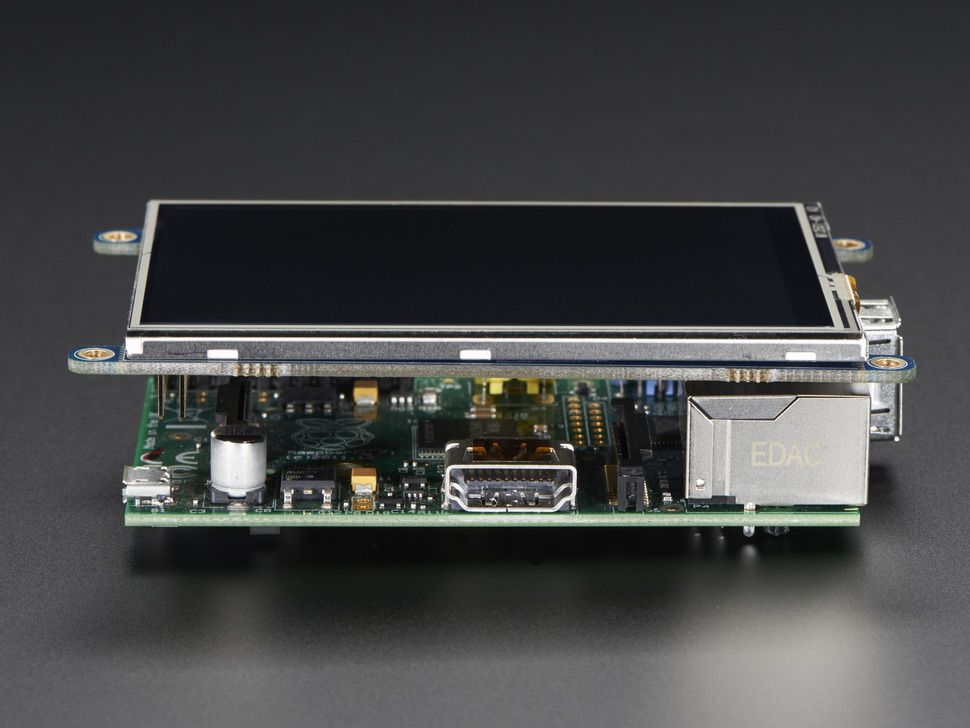

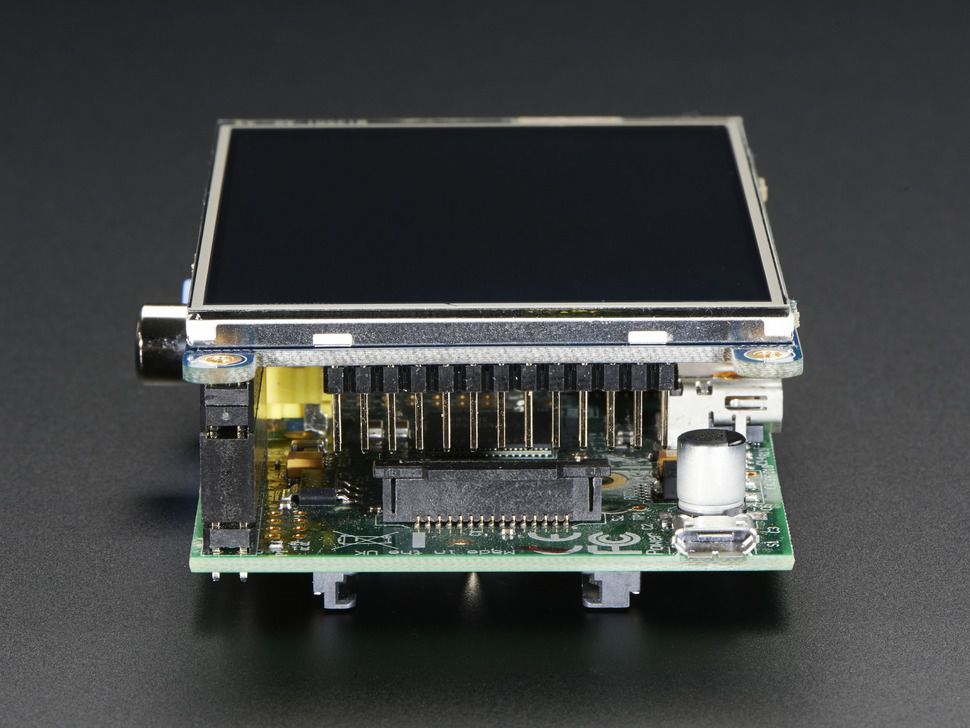

It's designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Raspberry Pi 2 Model B or Pi 1 Model B+ as long as you don't mind the PCB overhangs the USB ports by 5mm.

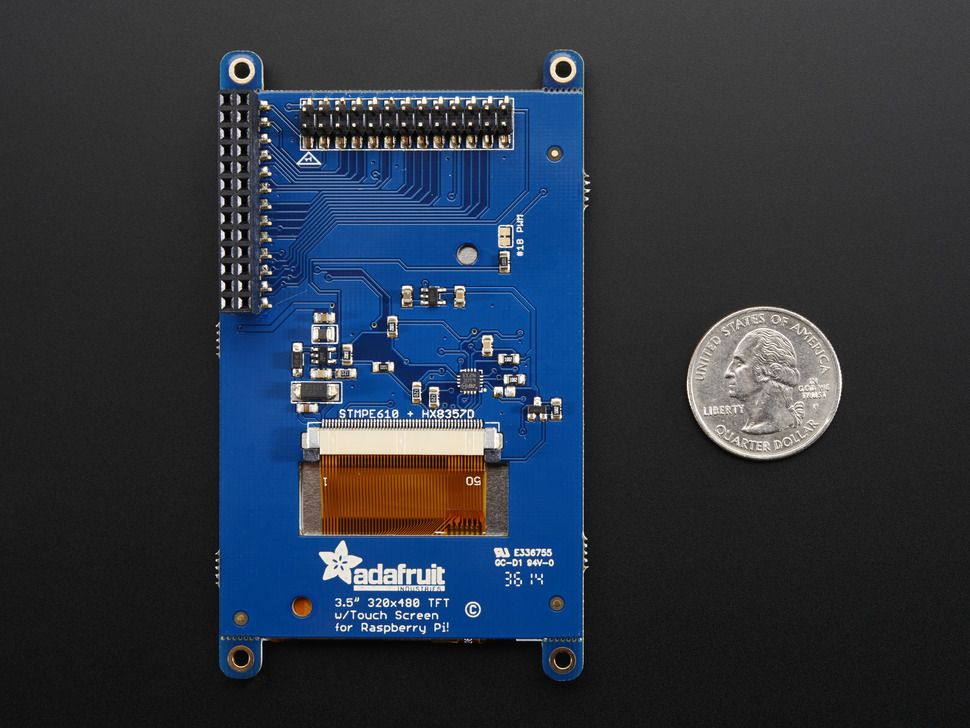

Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. GPIO #18 can be used to PWM dim the backlight if you like. All other GPIO are unused. There's a 2x13 header on the bottom, you can connect a standard Pi GPIO cable to it to use any of the other pins ask you like.

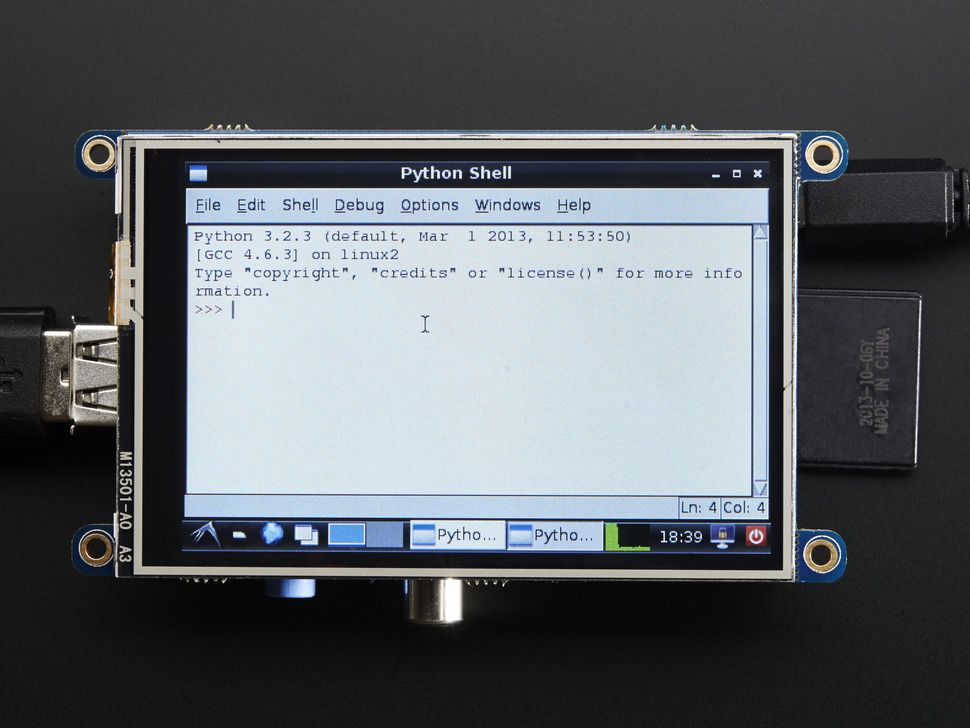

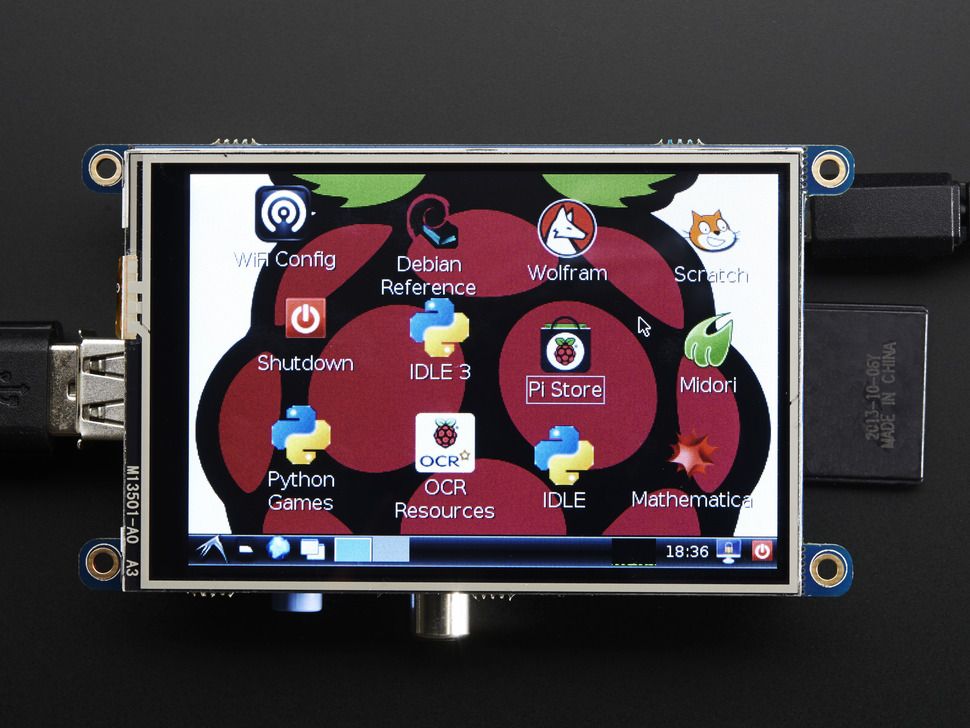

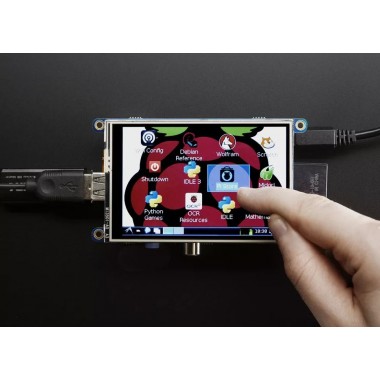

Best of all, it comes fully assembled and ready to plug into your Pi! You can use this as a display for running the X interface, or pygame. You can also have an HDMI display seperately connected. There's four mounting ears that can be used to attach the display & Pi to a bezel, or snap them off with pliers (they're perforated) for a slick exactly-the-same-size-as-a-Pi look.
TECHNICAL DETAILS
- Display current draw is mostly based on the backlight, with full-on backlight the current draw is ~100mA.
