IMU 10DOF MPU6050+HMC5883L+BMP085

IMU 10DOF MPU6050 HMC5883L BMP085

Combina giróscopo, acelerómetro, DMP, brújula y sensor de presión y temperatura.

COD: ESMO8810DOF

Peso: 0.002 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 34143.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This IMU 10DOF is a motion tracking module. Its design is based on the sensor MPU6050,HMC5883L and BMP085.The sensor MPU6050 which is the world’s first integrated 6-axis Motion Tracking device, that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP).The Honeywell’s HMC5883L which is a 3-axis digital compass. The BMP085 is a high-accuracy chip to detect barometric pressure and temperature.You can uses it in your DIY or your product,for example, Quadcopter, Self-Balancing Robot and so on.

Features

  • Three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs
  • Three 16-bit ADCs for digitizing the accelerometer outputs
  • A 12-bit ADCs for digitizing the magnetometer outputs
  • Gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps)
  • Accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g
  • Wide Magnetic Field range:+/-8 Oe
  • Pressure range:300 to1100hPa (+9000m to -500m above sea level)
  • I2C interfaces
  • Power supply: 3-5v

Applications

  • TouchAnywhere™ technology (for “no touch” UI Application Control/Navigation)
  • MotionCommand™ technology (for Gesture Short-cuts)
  • Motion-enabled game and application framework
  • Location based services, points of interest, and dead reckoning
  • Handset and portable gaming
  • Motion-based game controllers
  • 3D remote controls for Internet connected DTVs and set top boxes, 3D mice
  • Wearable sensors for health, fitness and sports
  • Enhancement of GPS navigation

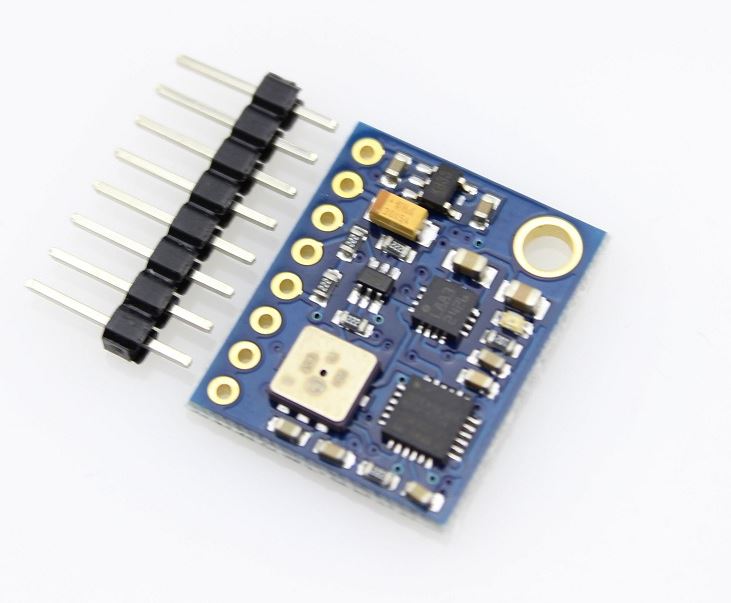

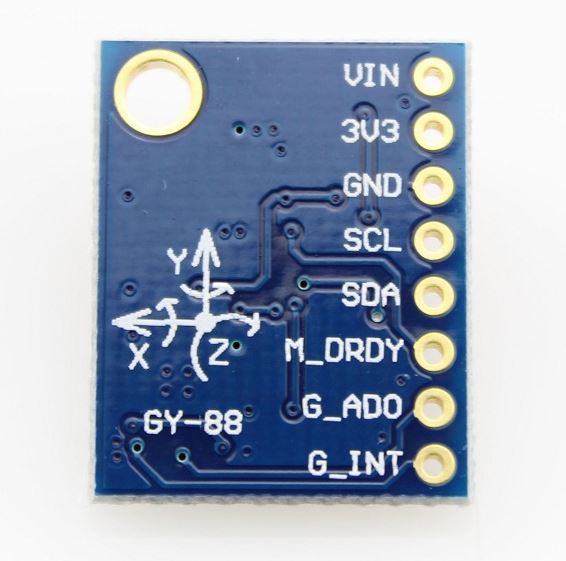

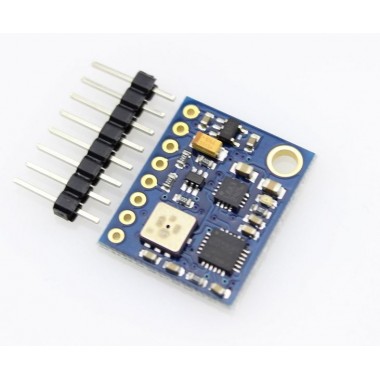

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (17/10/2016 - 16:13)

Hola Julio, en este link podes encontrar ejemplos de uso: http://www.fut-electronics.com/wp-content/plugins/fe_downloads/Uploads/IMU_10DOF_Kalman_Filter.pdf . Saludos!

julio compañy (17/10/2016 - 08:40)

puede conseguirse documentacion practica como esquematicos o fuente de ejemplo de uso de esta imu ? gracias
