Energy Monitor Shield V2

Energy Monitor Shield V2

Shield compatible con Arduino diseñado para crear sistemas de monitoreo energético. Incluye transceptor nRF24L01. Posee capacidad de conectar display OLED (no incluido).


Peso: 0.025 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 50665.00


El producto no está disponible para la venta en este momento

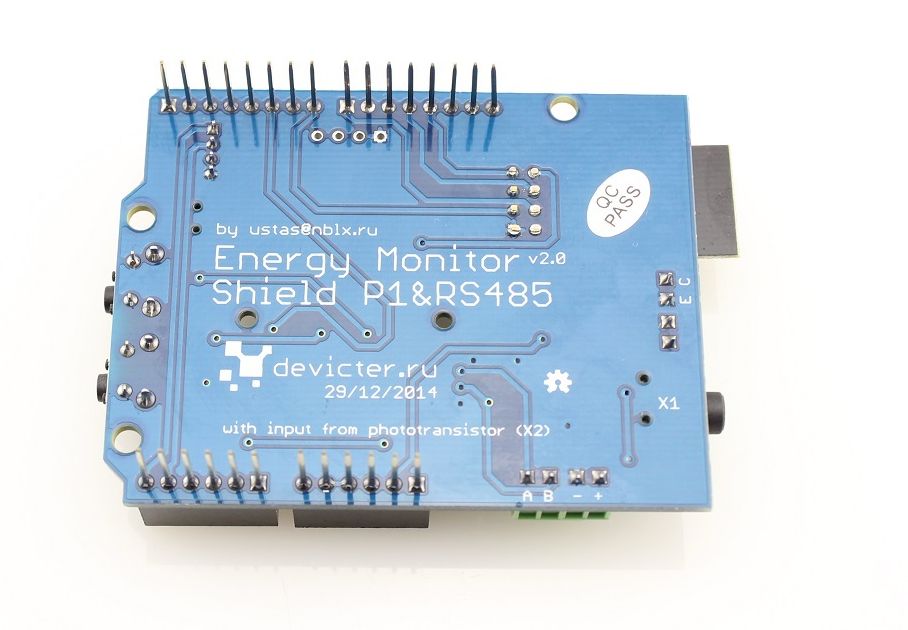

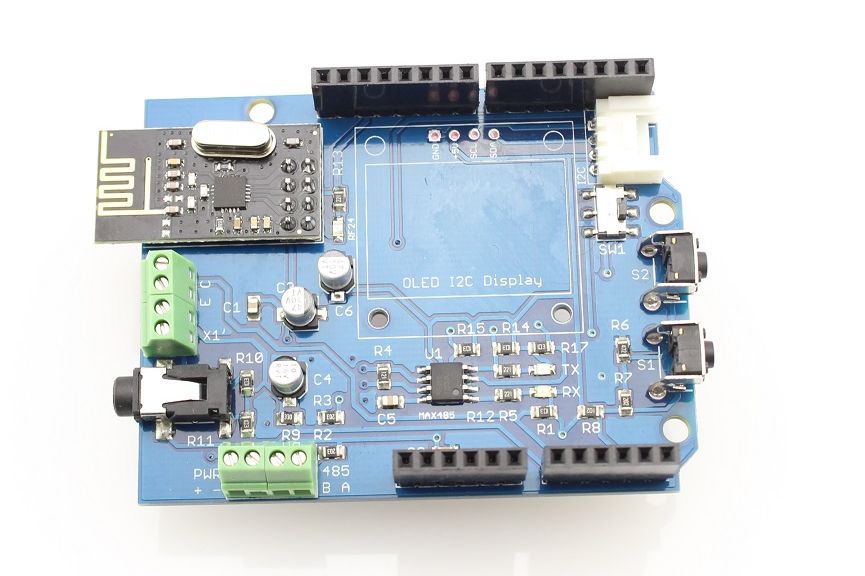

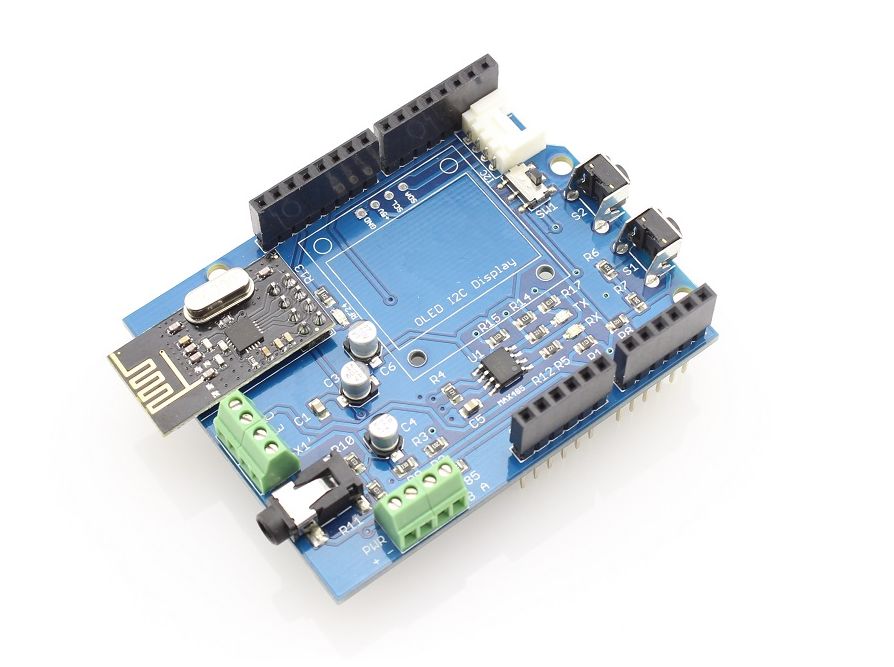

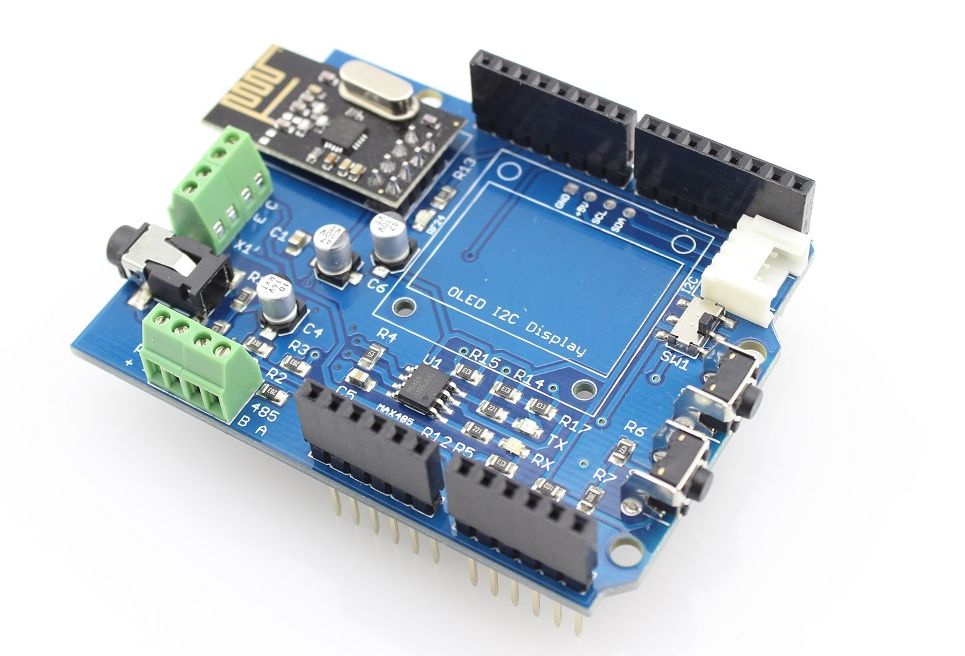

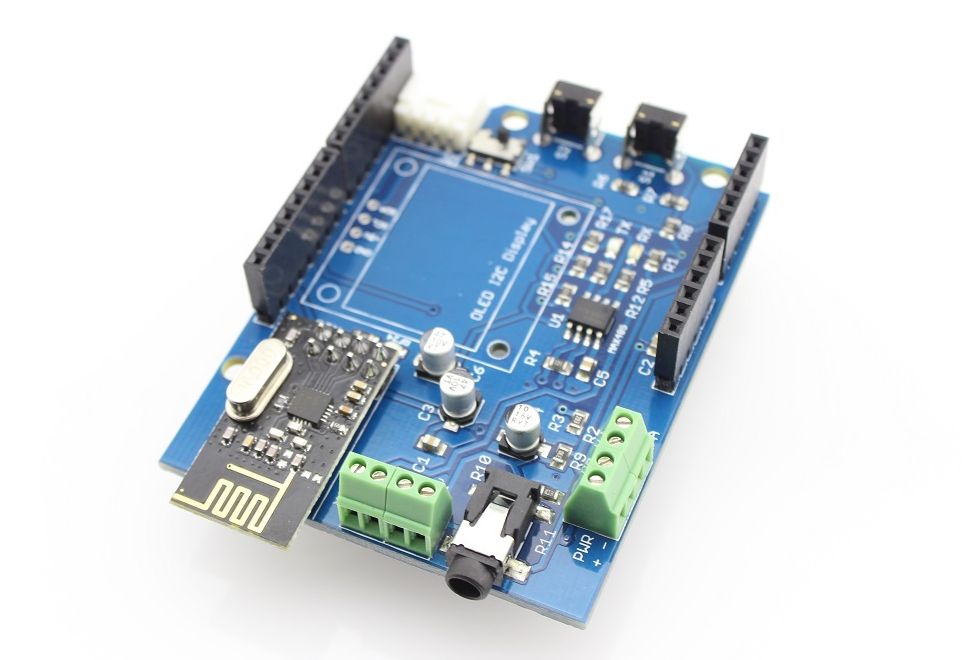

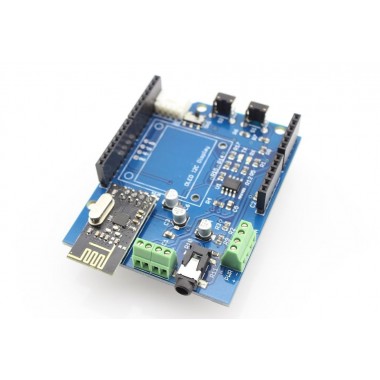

Energy Monitor Shield V2 is Arduino-compatible expansion card designed for building energy monitoring system with the ability to connect I2C OLED-display and built-in wireless transceiver nRF24L01 +. Unlike version 1, has on-board interface phototransistor to read data from the built-in LEDs of different counters and interface RS485.


  • Connecting one sensors AC (30-100A)
  • Support I2C OLED-display
  • Terminal for connecting the phototransistor VTT7122H
  • Interface RS485
  • Two buttons to control (enabled one analog pin)
  • Transceiver for 2.4G nRF24L01 + soldered on the motherboard
  • GROVE-compatible connector: I2C
  • Fully compatible with Ethernet Shield (Wiznet 5200 + SD)

Packing List

  • Energy Monitor Shield V2 P1 X 1
