Triple Axis Magnetometer Breakout - HMC5883L
LIQUIDACION HASTA AGOTAR STOCK. Triple Axis Magnetometer Breakout - HMC5883L
COD: SFSEN10530
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 15156.00
El producto no está disponible para la venta en este momento
Características

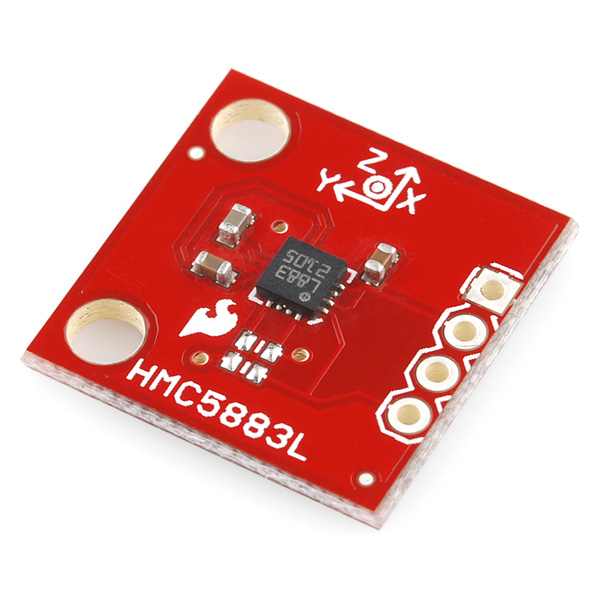

Description: This is a breakout board for Honeywell's HMC5883L, a 3-axis digital compass. Communication with the HMC5883L is simple and all done through an I2C interface. There is no on-board regulator, so a regulated voltage of 2.16-3.6VDC should be supplied.

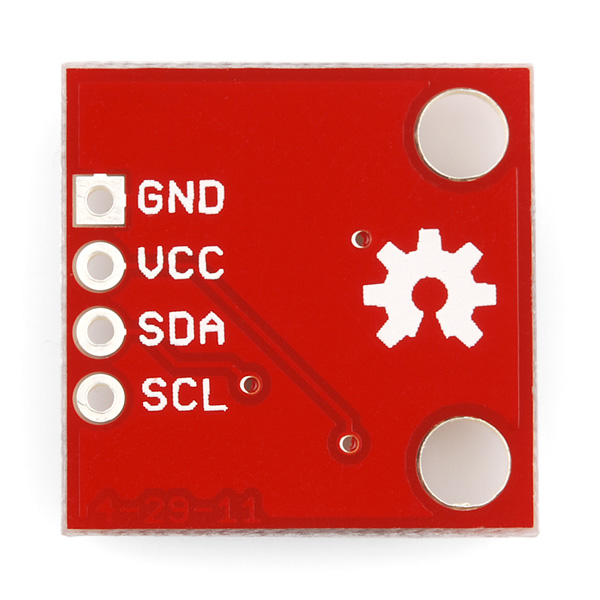

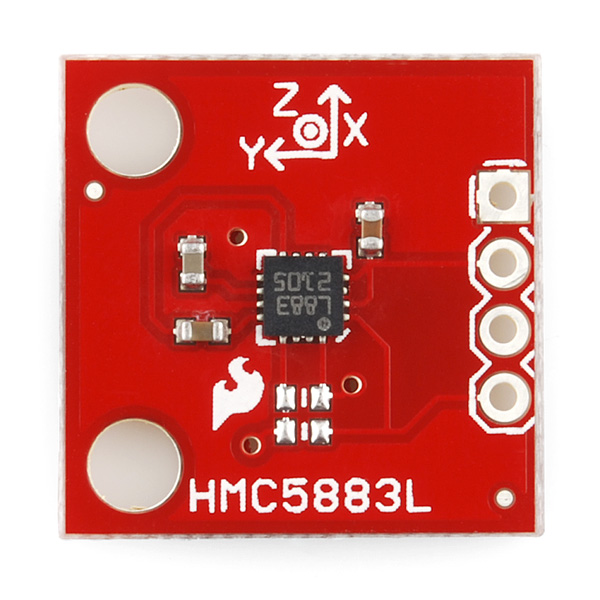

The breakout board includes the HMC5883L sensor and all filtering capacitors as shown. The power and 2-wire interface pins are all broken out to a 0.1" pitch header.
Features:
- Simple I2C interface
- 2.16-3.6VDC supply range
- Low current draw
- 5 milli-gauss resolution

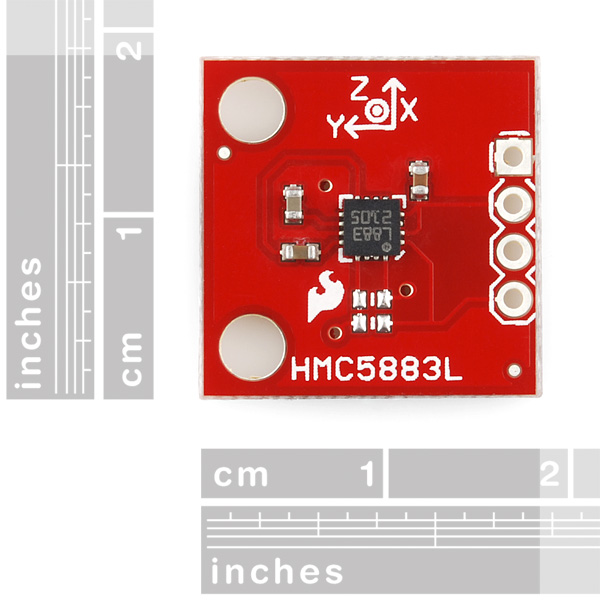

Dimensions: 0.7x0.7" (17.78x17.78mm)
Documents:
- Schematic
- Eagle Files
- Datasheet (HMC5883L)
- Example code (Arduino)
- Bildr Tutorial
- Digital Compass How-To Video
Schematic (32 Kb)
Eagle Files (43 Kb)
