SparkFun Electric Imp Breakout
Breakout para para plataforma IoT "Electric Imp"
COD: SFBOB12886
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 25764.00
El producto no está disponible para la venta en este momento
Características

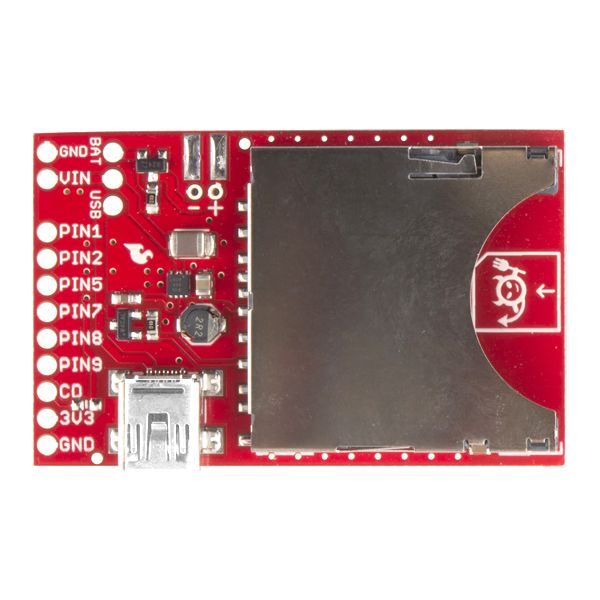

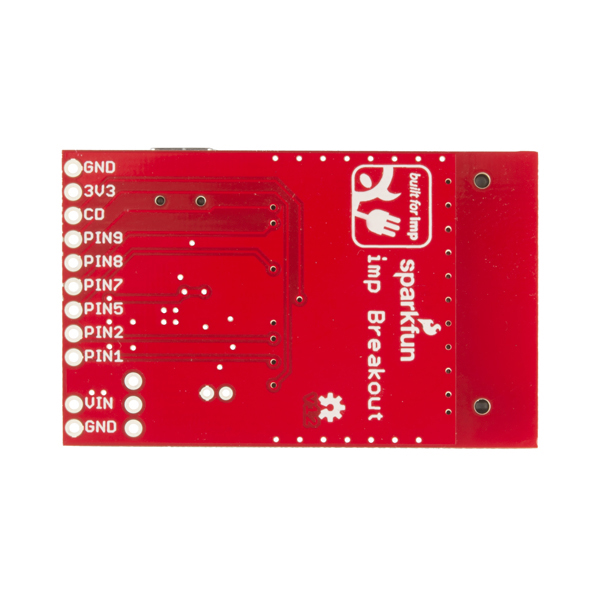

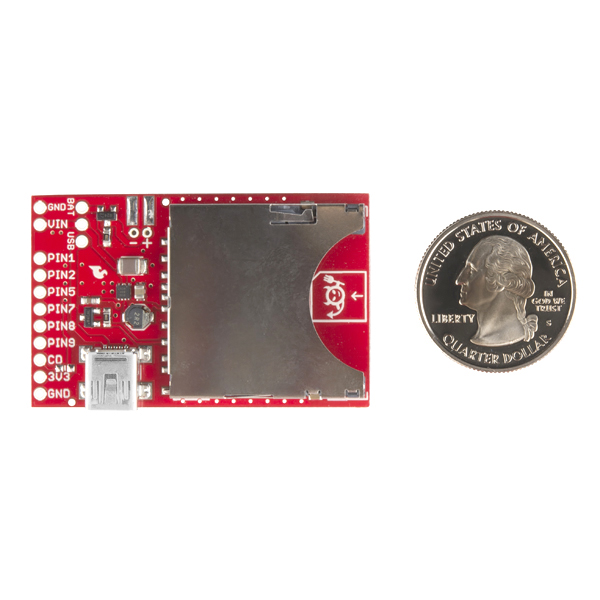

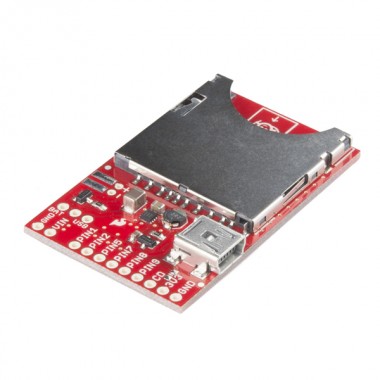

If you aren’t familiar with the Electric Imp, it essentially provides an easy, integrated way to connect almost any hardware device both to other devices and to internet services. The SparkFun Electric Imp Breakout Board allows you to explore the capabilities of the Imp by providing standard 0.1" headers to solder to as well as the necessary CryptAuthEE IC to identify your prototype to the Imp Cloud service!
This is just the development board, so you’ll need to buy the Imp separately.

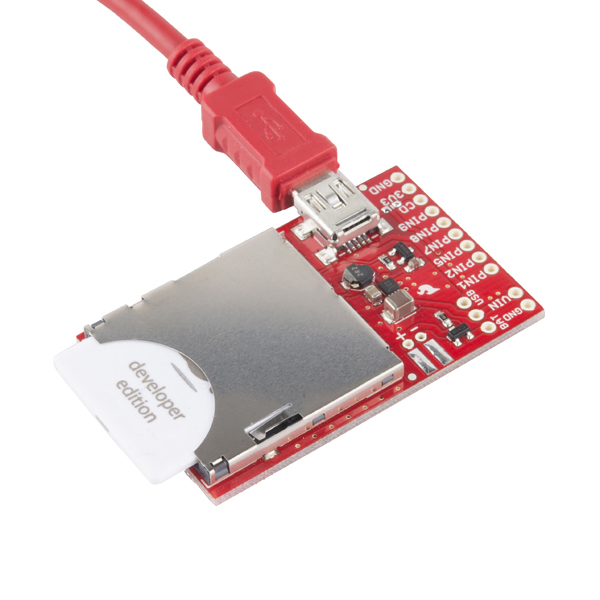

Note: If you want to use the mini-USB or battery inputs for power, you will need to populate the 3-pin jumper and set it to either ‘BAT’ or ‘USB’. Otherwise, you can just simply power the board using VIN and GND without the use of a jumper.
Documents:
- Hookup Guide
- Electric Imp Site
- Electric Imp Wiki
- GitHub (Design Files)
electric-imp-breakout-v12.pdf (84 Kb)
electric-imp-breakout-v12.zip (282 Kb)
