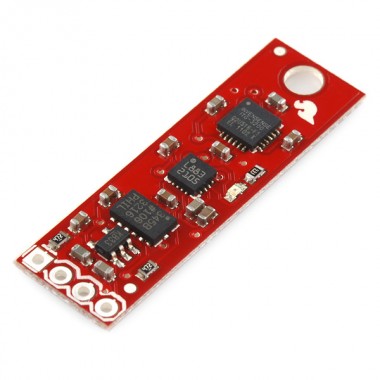

Sensor Stick - 9 Grados de Libertad
Combo de sensores de navegación, que incluye un acelerómetro, un magnetrómetro y un giróscopo en el mismo circuito impreso.
COD: SFSEN10724
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 114804.00
El producto no está disponible para la venta en este momento
Características

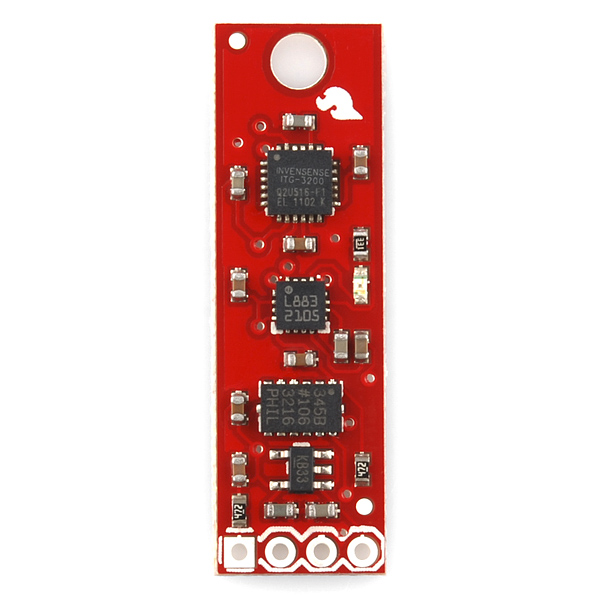

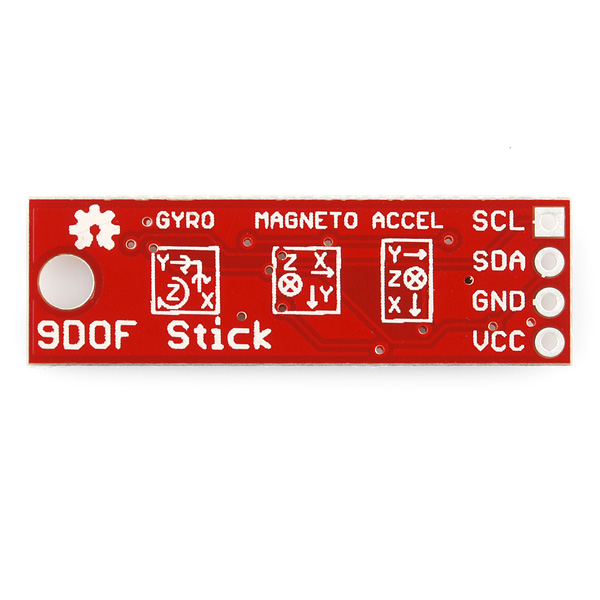

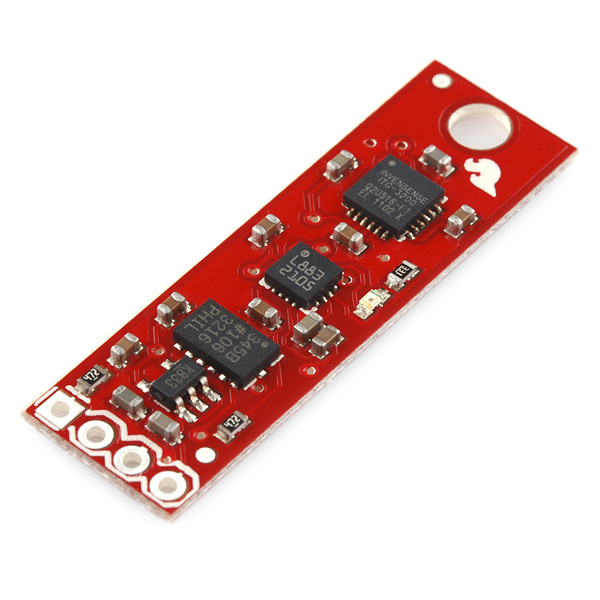

Description: The 9DOF Sensor stick is a very small sensor board with 9 degrees of freedom. It includes the ADXL345 accelerometer, the HMC5883L magnetometer, and the ITG-3200 gyro. The 'stick' has a simple I2C interface and a mounting hole for attaching it to your project. Also, the board is a mere 0.036" thick (0.093" overall), allowing it to be easily mounted in just about any application.

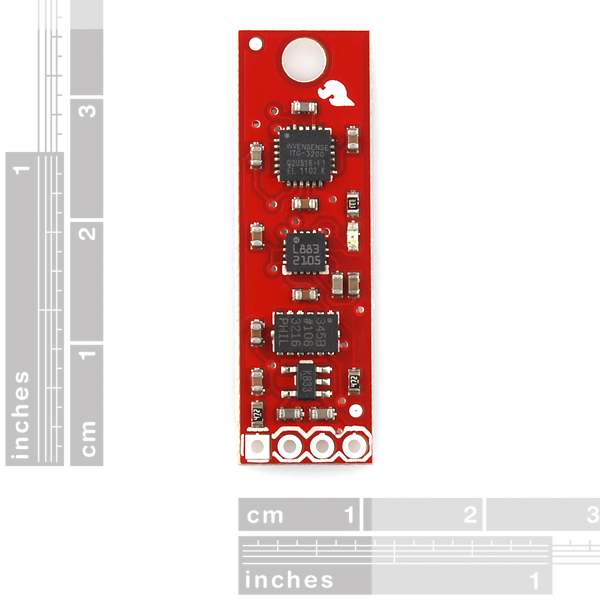

Dimensions: 1.37x0.42"
Documents:
- Schematic
- Eagle Files
- Datasheet (ADXL345)
- Datasheet (HMC5883L)
- Datasheet (ITG-3200)
- AHRS/Head-tracker Tutorial (Thanks Peter!)
Replaces: SEN-10321
Schematic (46 Kb)
Eagle Files (50 Kb)
