ESP8266 based WiFi module FCC/CE

ESP8266 based WiFi module FCC/CE

Módulo Wi-Fi basado en ESP8266, con separación entre pines de 2mm (formato XBee)

COD: ECWI82668FC

Peso: 0.003 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 11103.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

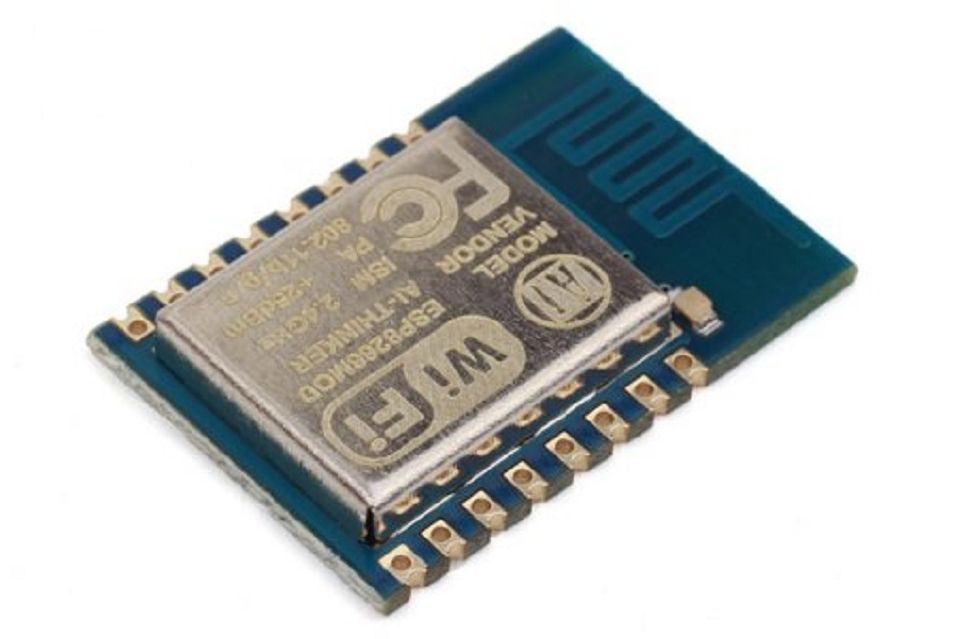

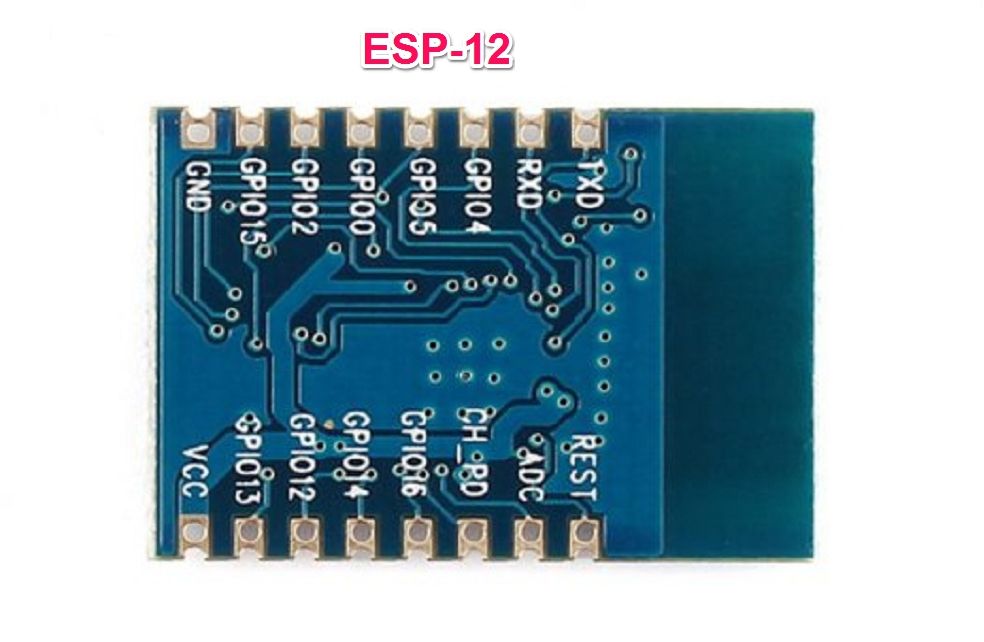

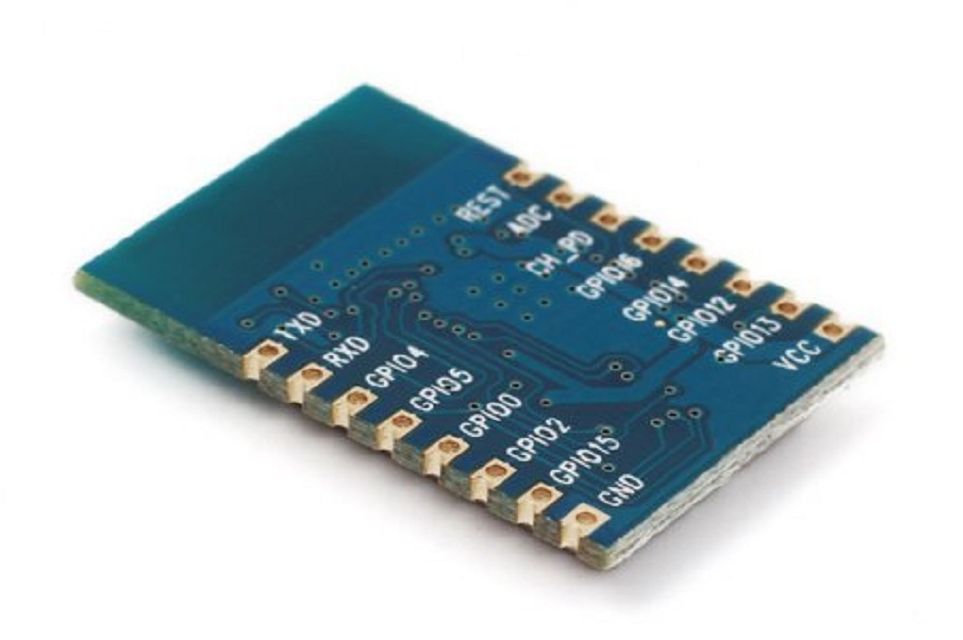

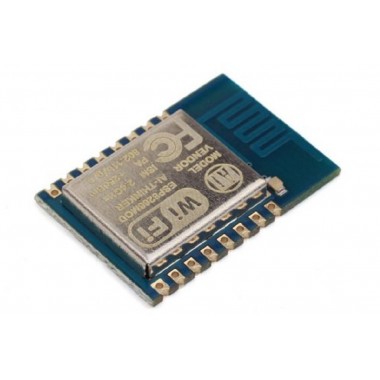

ESP-12 (ESP8266 ) is an ultra-low power UART-WiFi module. It has excellent dimensions and ULP technology compared to other similar modules. The module is special design for mobile devices and Internet of Things . Once firmware is upgraded to the appropriate version, a compatible Android device can run the IOT.APK to do the following:control the PWM, I/O pin, or Serial communication. For example,you can use this module transmit date with it serial port.It is easy to communication with other device.
When searching for this over a WiFi network, the device name is "AI-THINKER" and the password is "ai-thinker". In the photos you can see an Android phone running a control app, the APK download is available from here.

Features

  • Metal casing
  • support wireless 802.11 b/g/n standard
  • support the STA/AP/STA + AP three work modes
  • support rich Socket the AT command
  • support UART/GPIO data communication interface
  • support Smart Link intelligent networking
  • support the STA/AP/STA + AP three work modes
  • built-in 32-bit MCU and can be applied as processor
  • low power consumption, suitable for battery-powered applications
  • Single 3.3 V power supply

Specification







Wiki & External links

Galería de Imágenes

Archivos

Comentarios

Escribir Comentario

OpenHacks (07/12/2016 - 12:17)

Hola Pablo, no tenemos. Estos módulos ya están ruteados y brindan acceso a los pines, sumando también otras funcionalidades: https://www.openhacks.com/page/productos/id/1338/title/NodeMCU-v2---Lua-based-ESP8266-development-kit#.WEgn6tXhCUk https://www.openhacks.com/page/productos/id/1985/title/NodeMcu-Lua-WIFI-Development-Board-For-ESP8266-Module#.WEgn8NXhCUk . Saludos!

Pablo (07/12/2016 - 12:15)

Hola, quería saber si ustedes tienen tiras de pines con separación de 2 mm para agregarle a este módulo. Gracias
