FTDI Cable 5V

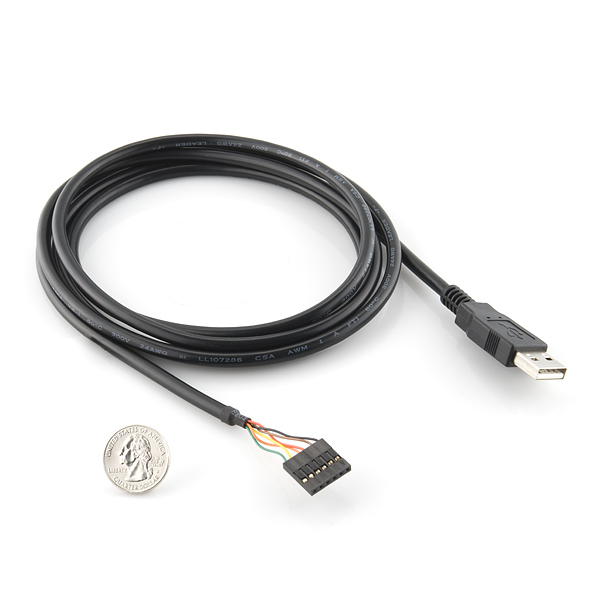

El cable FTDI es un conversor USB a Serial, y provee la manera mas simple de conectar dispositivos con interfaces TTL 5V a USB.
COD: SFDEV09718
Peso: 0.067 Kg
Disponibilidad: Sin Stock
ARS 126903.00
El producto no está disponible para la venta en este momento
Características
The FTDI cable is a USB to Serial (TTL level) converter which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this FTDI cable are configured to operate at 5V.

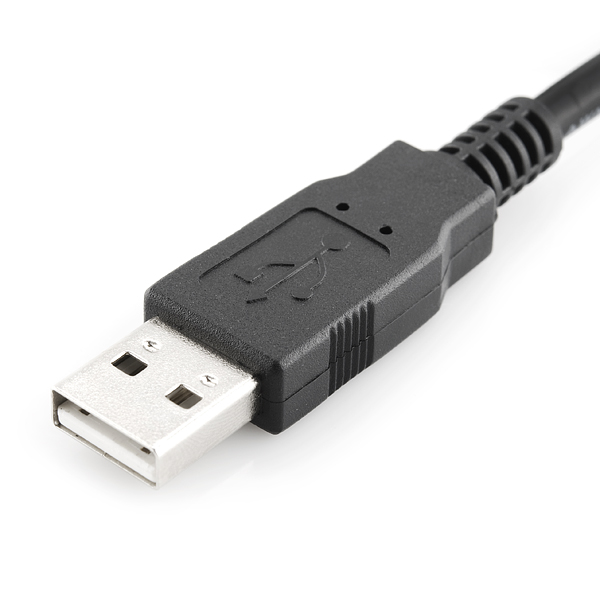

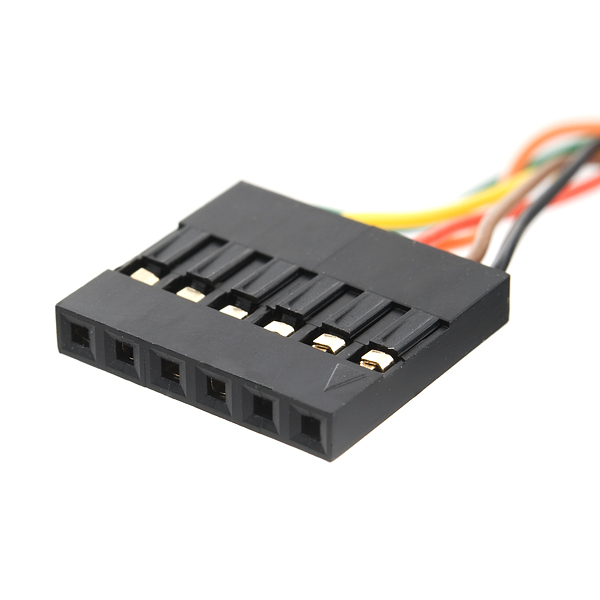

The FTDI cable is designed around an FT232RQ, which is housed in a USB A connector. The other side of the cable is terminated with a 0.1" pitch, 6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
This cable has the same pinout and functionality as our FTDI Basic Breakout board; you can use it to program your Arduino Pro, Pro Mini and Lilypad. For use with those boards, align the black and green wires of the FTDI cable with the ‘BLK’ and ‘GRN’ labels on the PCB.
There are pros and cons to the FTDI Cable vs the FTDI Basic. The FTDI Basic has great LED indicators, but requires a Mini-B cable. The FTDI Cable is well protected against the elements, but is large and cannot be embedded into a project as easily. The FTDI Basic uses DTR to cause a hardware reset where the FTDI cable uses the RTS signal.
Documents:
- How to Install FTDI Drivers
- FTDI Drivers
- FTDI Cable Schematic
Galería de Imágenes
ftdi_cable_5v.pdf (19 Kb)Comentarios
Escribir ComentarioOpenHacks (26/10/2015 - 15:45)
Hola Matías, se puede. La conexión debería ser: TX(naranja) con Rx (Ard), RX(amarillo) con TX(Ard), Gnd(negro) con GND(Ard), Vcc(rojo) a 5V y DTR(verde) con Reset a través de un capacitor de 100nF, (a veces funciona igual sin utilizarlo). No se puede programar si el micro está en la board del Arduino UNO (que ya tiene conversor USB-UART. Saludos!
Matías (26/10/2015 - 10:14)
Buenos días, quisiera saber si con éste dispositivo es posible la transferencia de programas de la pc a un atmega328ppu (arduino Uno r3). Es decir, si es posible la conexión entre ambos. Muchas gracias!
