SparkFun Block for Intel® Edison - Console
Una de las maneras simples de alimentar y comunicarte con tu Intel® Edison.
COD: SFDEV13039
Peso: 0.001 Kg
Disponibilidad: Sin Stock
ARS 43045.00
El producto no está disponible para la venta en este momento
Características

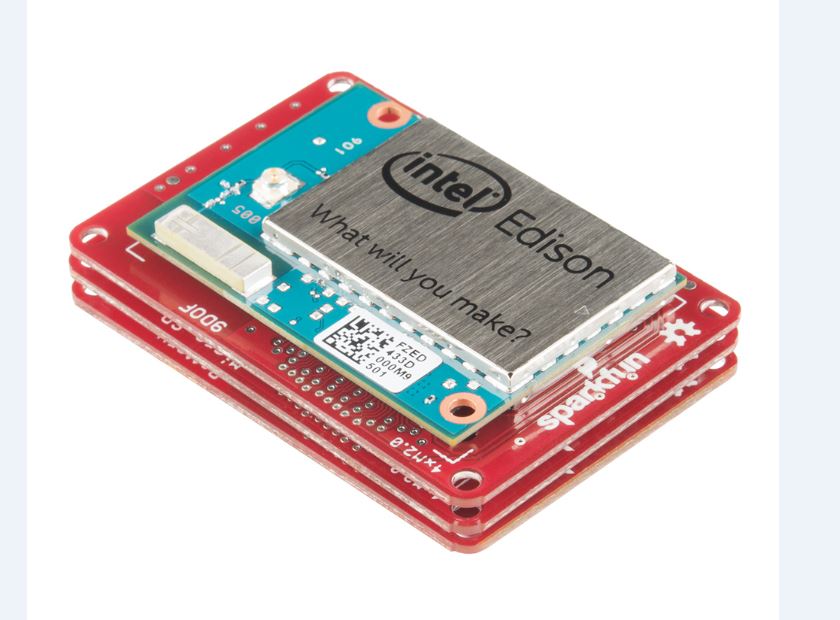

The Intel® Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel® Atom™ SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like “Blocks” which can be stacked on top of each other. It’s no wonder how this little guy is lowering the barrier of entry on the world of electronics!

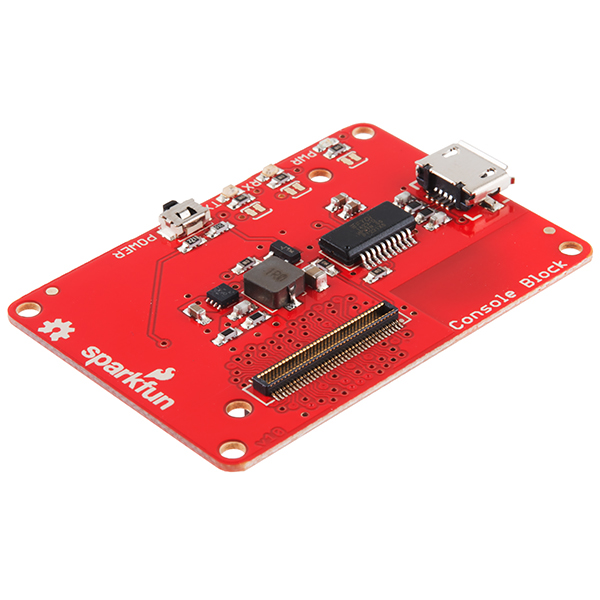

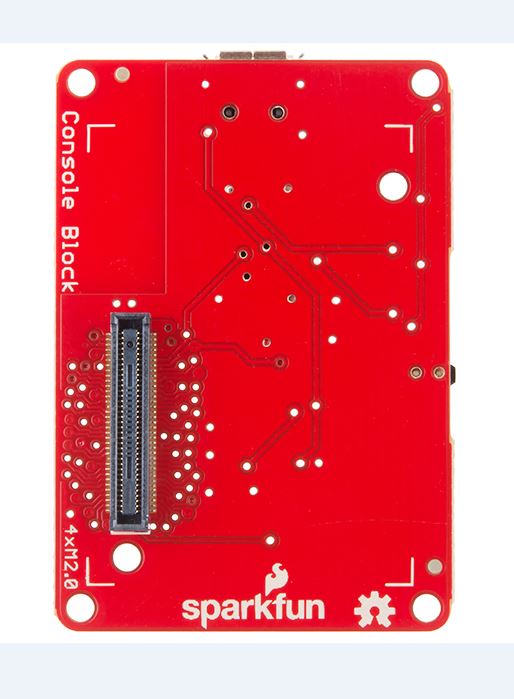

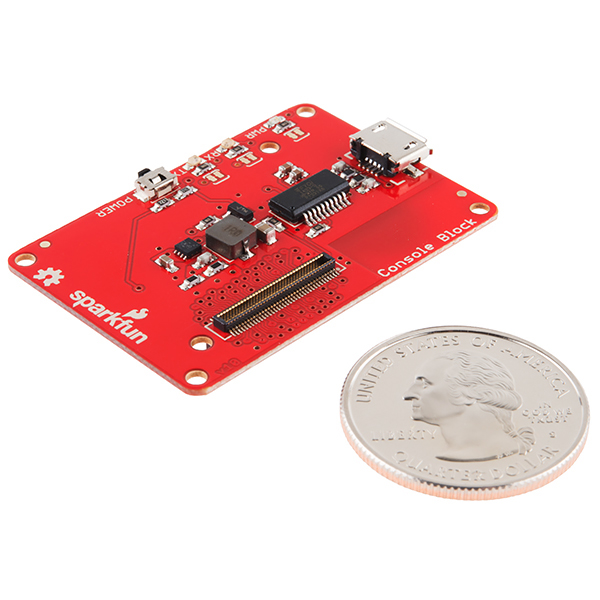

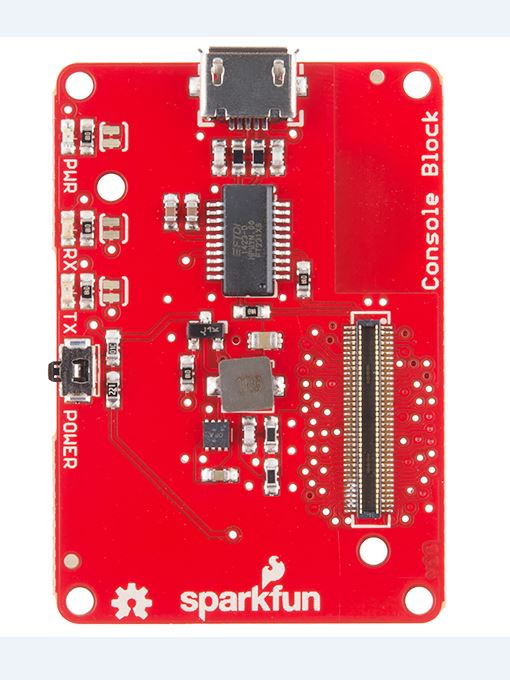

The Console Block is one of the simplest ways to power and communicate with an Intel® Edison. This is a minimal solution to get started using the Intel® Edison. This board can supply 4V and up to 1.5A of current to power the Edison passed through it’s VSYS line and any other expansion boards you may add to your stack. Utilizing the FTDI 231X, this creates a USB to serial bridge that is level shifted to the proper 1.8V required by the Edison.
If you are looking to add a little more stability to your Intel® Edison stack, check out this Hardware Pack. It will provide you with increased mechanical strength for stacking Blocks on your Edison!
Documents:
- Schematic
- Eagle Files
- Console Block Hookup Guide
- Intel® Edison Tutorials
- Intel® Edison Product Brief
- Getting Started
- Software Downloads
- Board Support Package
- Intel® Edison Product Page
- GitHub (Design Files)
p.pdf (143 Kb)
console_block.zip (144 Kb)
