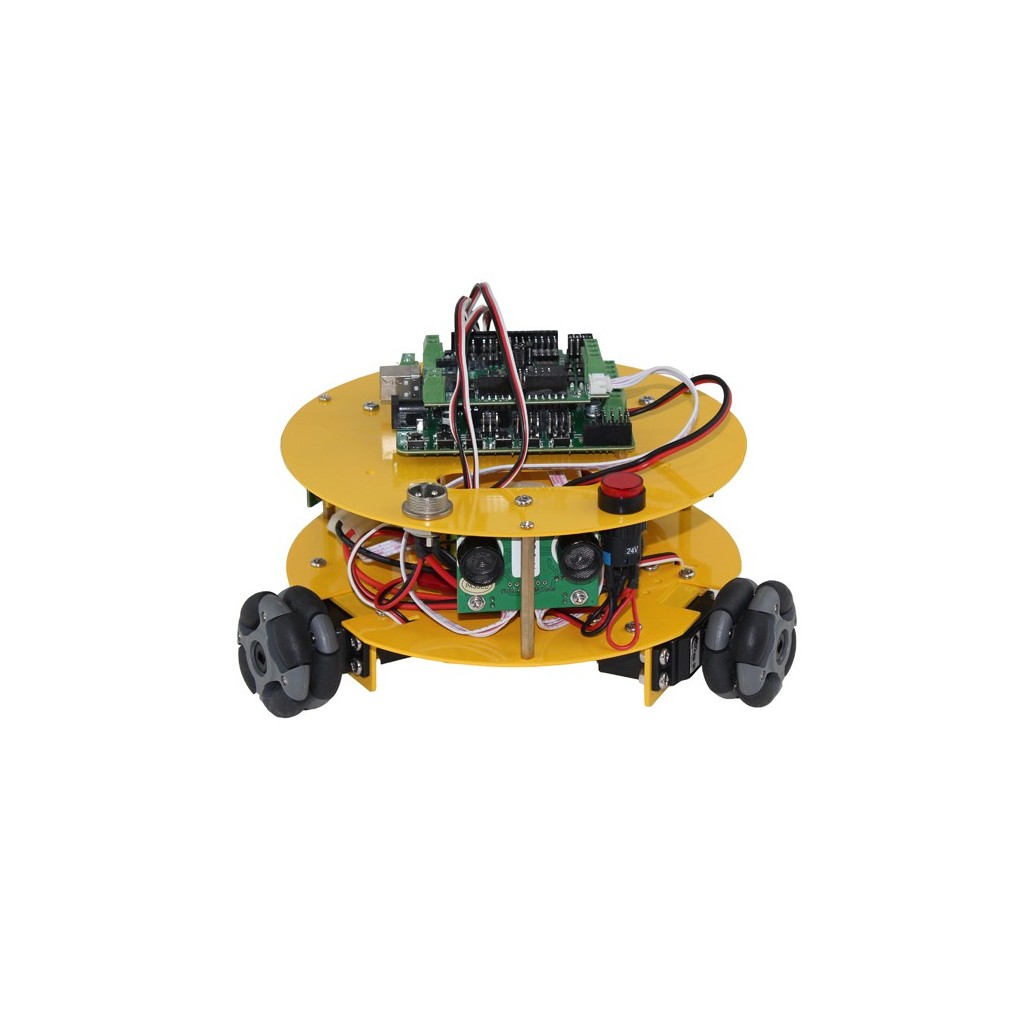

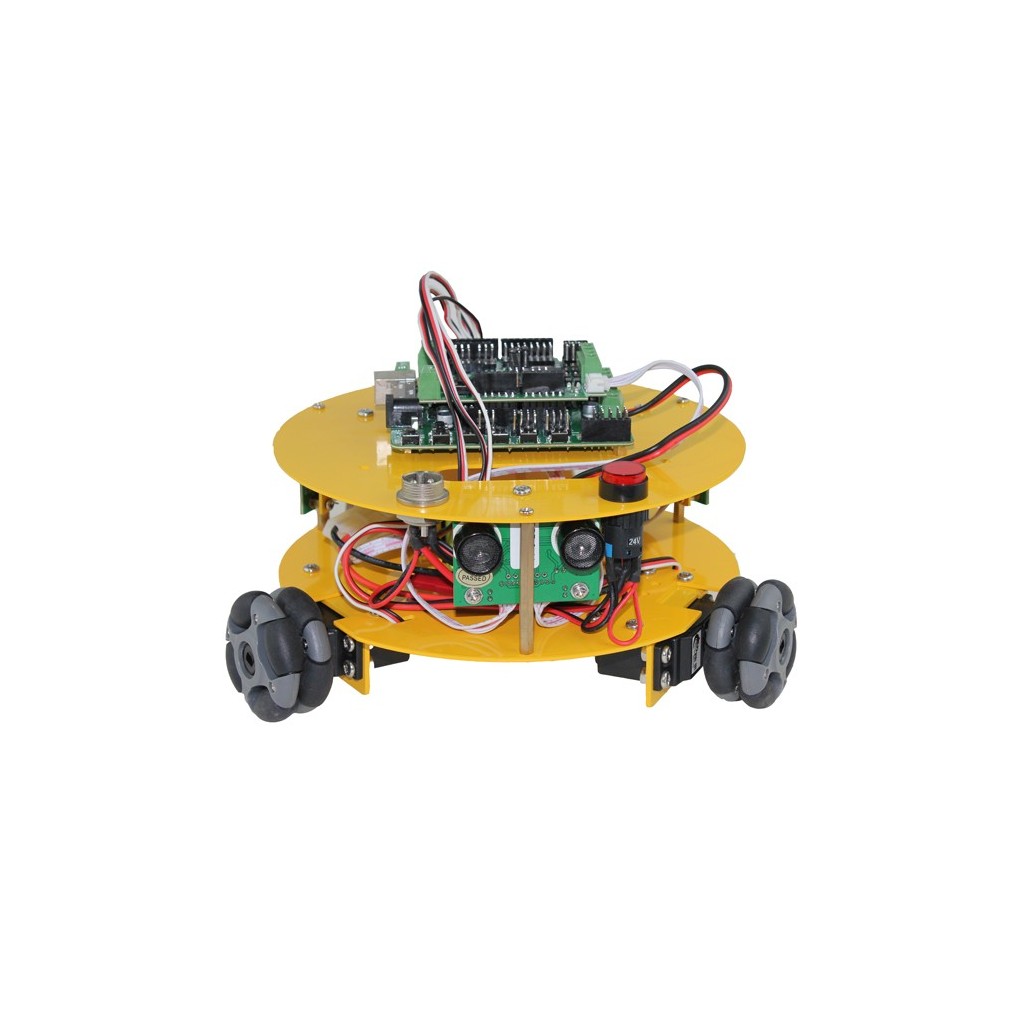

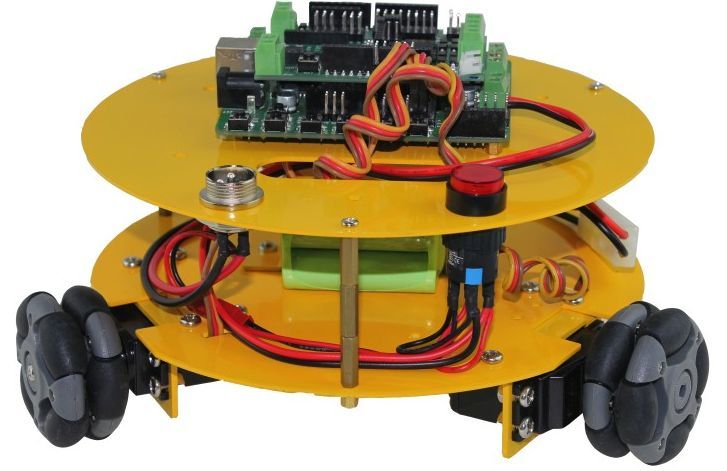

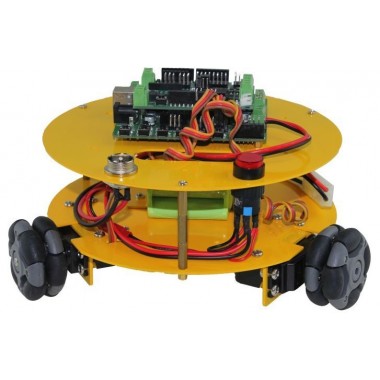

3WD 48mm Omni wheel mobile robot kit
Cuenta con tres ruedas omnidireccionales que le permiten moverse hacia adelante, atras, derecha e izquierda sin cambiar la dirección y velocidad. Cuenta con 3 sensores ultrasónicos para detectar obstáculos. Motorización: 3 servos de rotación continua. Se suministra montado y probado, con batería y cargador.
COD: NR10014
Peso: 0.500 Kg
Disponibilidad: Sin Stock
ARS 497768.00
El producto no está disponible para la venta en este momento
Características
The 3WD 48mm Omni wheel mobile robot kit using three omni wheels with drive moving forward, backward, left, and right without change the directions and speeds. Includes microcontroller and motors, it is programmable. Programming is performed by connecting to your PC and writting programs. There are still pre-drilled holes of screw and its firm aluminum alloy body makes it convenient and possible to add more levels.
Features:
- 3 wheel drive

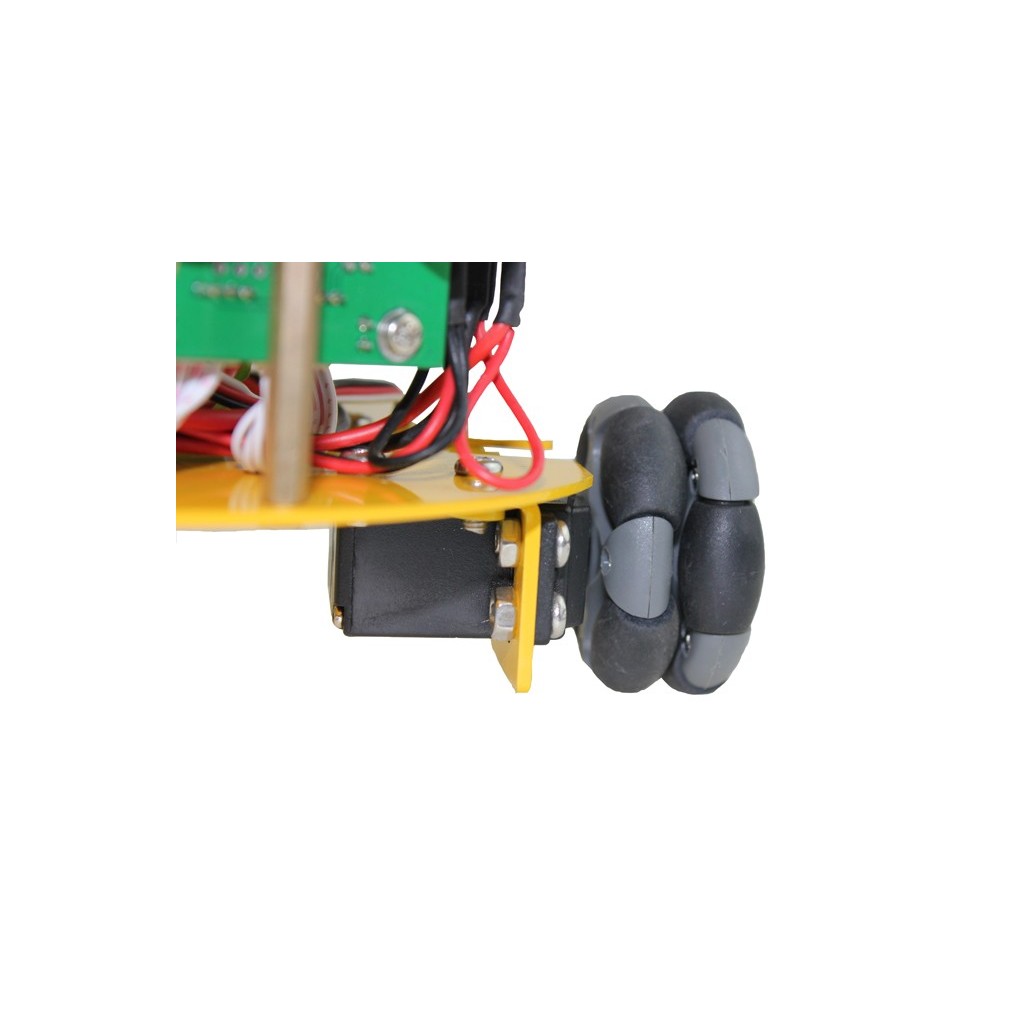

- Omni wheel
- Aluminum alloy fram
- Capable of rotation

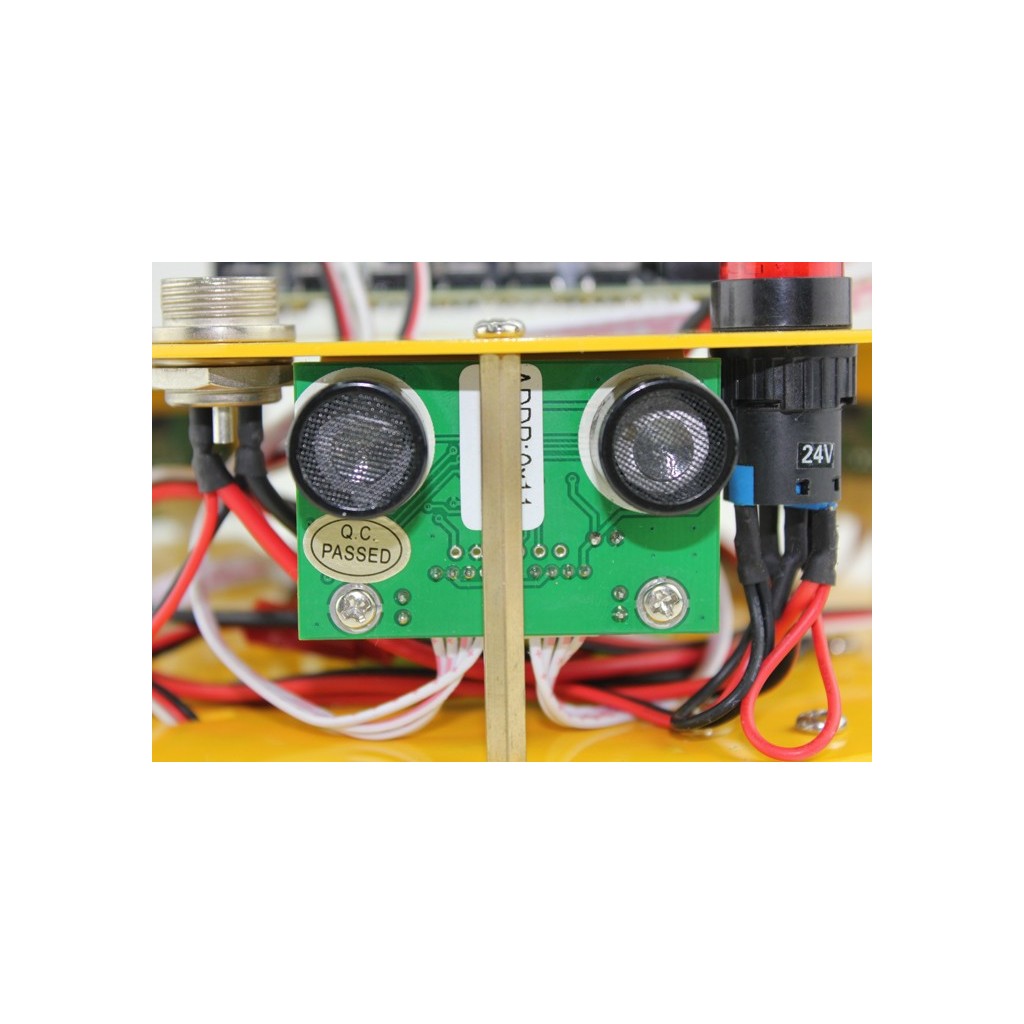

- Includes Ultrasonic sensors
- With Arduino microcontroller and IO expansion board
- Programmable with C, C++
Specification:
- Appearance: Circle
- Dimension：230mm X 230mm X 120mm
- Body Material: Aluminum Alloy
- Speed: 0.2m/s
- Power: 3w
- Load Capacity: 2kg
- Net Weight: 1kg
Parts included:
- 48mm Omni-wheel X 3
- Servo Motor
- Arduino 328 Controller
- Arduino IO Expansion
- Ultrasonic Range Finders X 3
- 12V NI-MH Battery X 1
- 12V Charger
file-1342627200__1__jq.pdf (2233 Kb)
