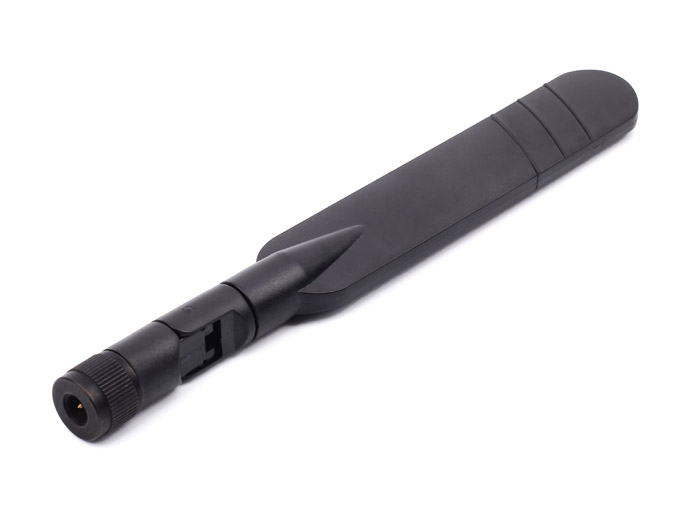

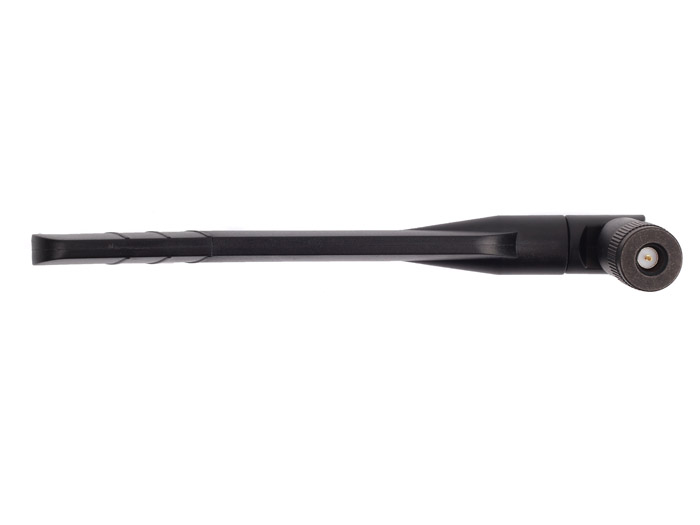

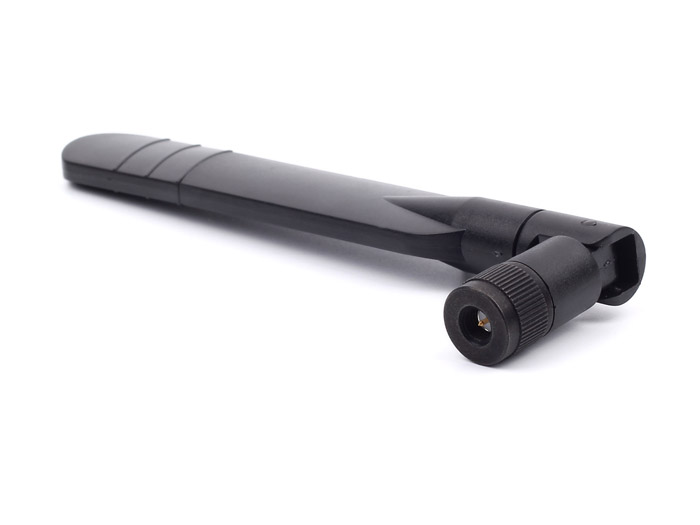

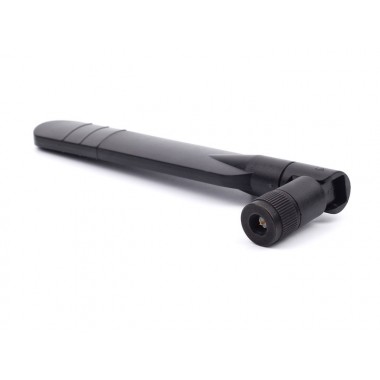

LTE Antenna
Antena multibanda para LTE / 4G
COD: SE318020023
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 30667.00
El producto no está disponible para la venta en este momento
Características
The omnidirectional LTE multiband antenna is designed for worldwide LTE / 4G cell reception, and can be used for other purposes in the supported frequency range of Frequency: 698-960 / 1710-2170 / 2500-2700 MHz.
It comes in a compact, robust articulated lightweight design, making it an ideal choice for handheld RF Explorer Spectrum Analyzer.
Feature:
- Compact multiband antenna for LTE / 4G with SMA male connector
- Omnidirectional in the horizontal plane
Specification:
- Impedance: 50 ohm
- Characterized response: 698-960 / 1710-2170 / 2500-2700 MHz
- VSWR: <2.0
- Gain: up to 5dBi
- Max power: 50W
- Connector: SMA male
- RoHS compliant
Part List:
LTE antenna X 1
