PhoBot

Shield para control de motores, diseñado para Spark Core y Photon.

COD: SE114990229

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 37514.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

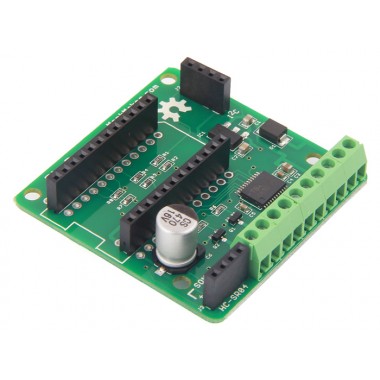

A simple to use motor shield for the Spark Core and Photon. This board is designed to simplify the process of making small roving robots using a Photon or Spark Core. The shield is designed to be used with low cost robot chassis to make simple autonomous robots.

Features:
  • Dual bi-directional motor control using TB6612FMG dual H-bridge
  • Dual open drain 2A MOSFET outputs
  • Socket for HC-SRo4
  • Socket for 5V I2C Interface
  • Provides 5V regulated power to Photon or Core

Specification:
  • Max. Input voltage: 12V
  • Min. Input voltage: 6V
  • Max. Current M1 and M2: 2A
  • Max. current I2C 5V supply: 80mA

Part List:
1 x PhoBot v1.0

The board has an accompanying C library that can be found on GitHub here
