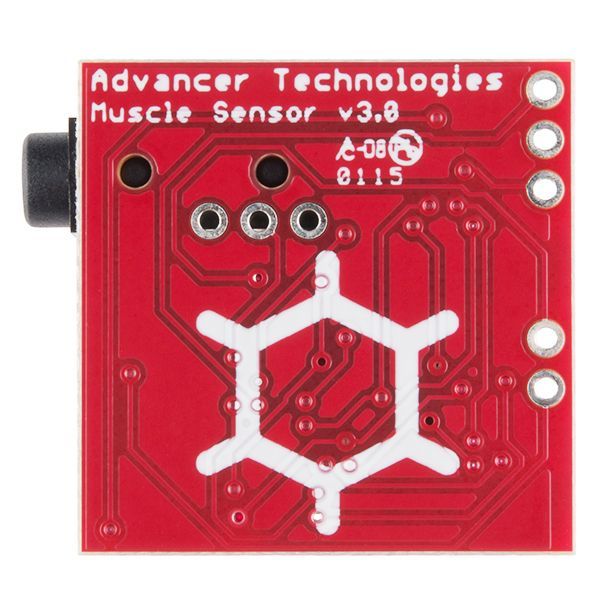

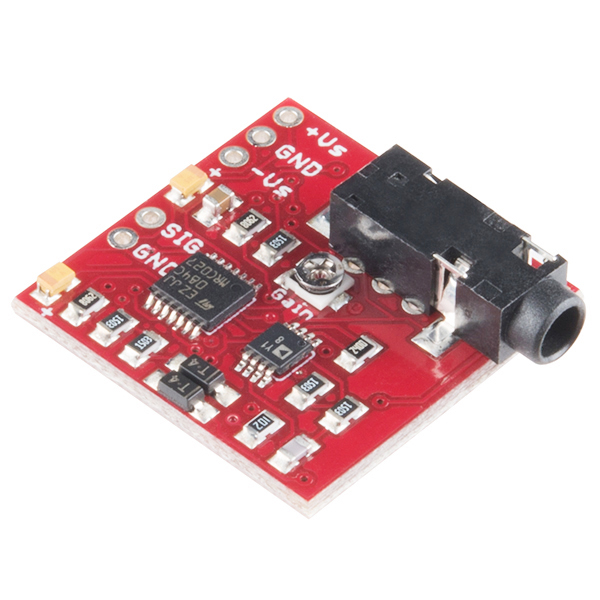

Muscle Sensor v3
Tomá las señales eléctricas directamente de tu músculo y usalas en tu dispositivo! Útil también como sensor de pulso cardíaco.
COD: SFSEN13027
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 80561.00
El producto no está disponible para la venta en este momento
Características
Sensor de impulsos eléctricos musculares o cardíacos. Requiere electrodos y cables para electrodos (no incluidos).
Granted, using our muscles to control things is the way that most of us are accustomed to doing it. We push buttons, pull levers, move joysticks… but what if we could take the buttons, levers and joysticks out of the equation? That’s right, take the electrical signal straight from the muscle and put it into your device. Thanks to shrinking amplifier technology, we can now do exactly that!
Measuring muscle activity by detecting its electric potential, referred to as electromyography (EMG), has traditionally been used for medical research. However, with the advent of ever shrinking yet more powerful microcontrollers and integrated circuits, EMG circuits and sensors have found their way into all kinds of control systems.
This sensor will measure the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. It’s that easy: stick on a few electrodes (not included), read the voltage out and flex some muscles!
Note: The Muscle Sensor v3 no longer includes biomedical sensor pads and cables as its previous version did. Both the pads and cable can be found in the Recommended Products section below to be purchased separately.

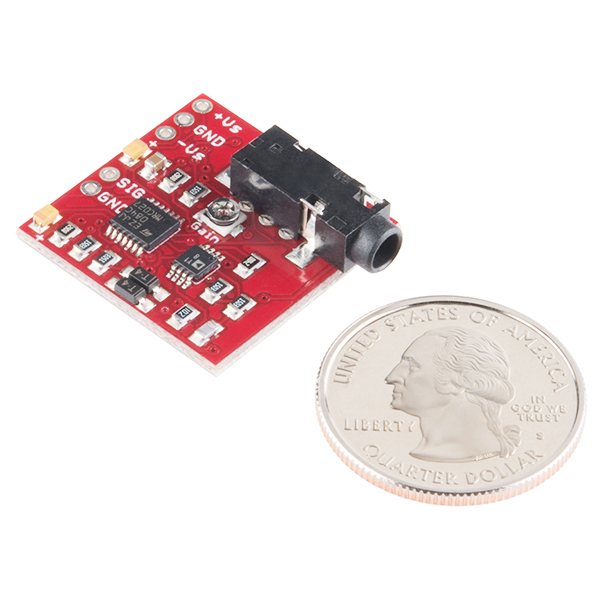

Dimensions: 1.0" x 1.0"

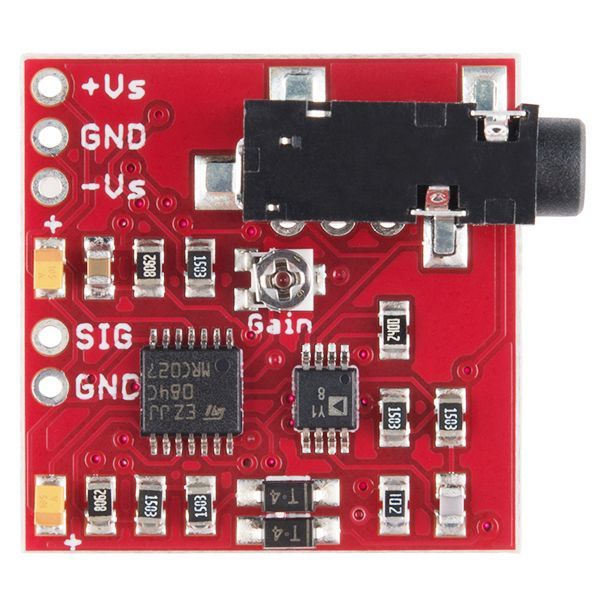

Features:
- Small Form Factor
- Specially Designed For Microcontrollers
- Adjustable Gain
- 3.5mm Connector
- Breadboard Compatible
- Power supply voltage: min. +-3.5V
Documents:
- Fabric Electrode Tutorial
- Iron Man Armor Tutorial
- GitHub (Example Code & Design Files)
Archivos
Comentarios
Escribir ComentarioOpenHacks (08/09/2016 - 16:47)
Hola Camilo, esta placa está discontinuada. Tenemos una muy similar: https://www.openhacks.com/page/productos/id/1741/title/MyoWare-Muscle-Sensor#.V9HABk3hCUk . Saludos!
Camilo (07/09/2016 - 14:36)
Hola quisiera saber para cuando tenes stock..necesitaría dos modulos...gracias
OpenHacks (04/11/2015 - 16:24)
Hola Fernando, esta semana probablemente ya estén. Saludos!
Fernando (28/10/2015 - 16:51)
Tenes los cables con electrodos???
