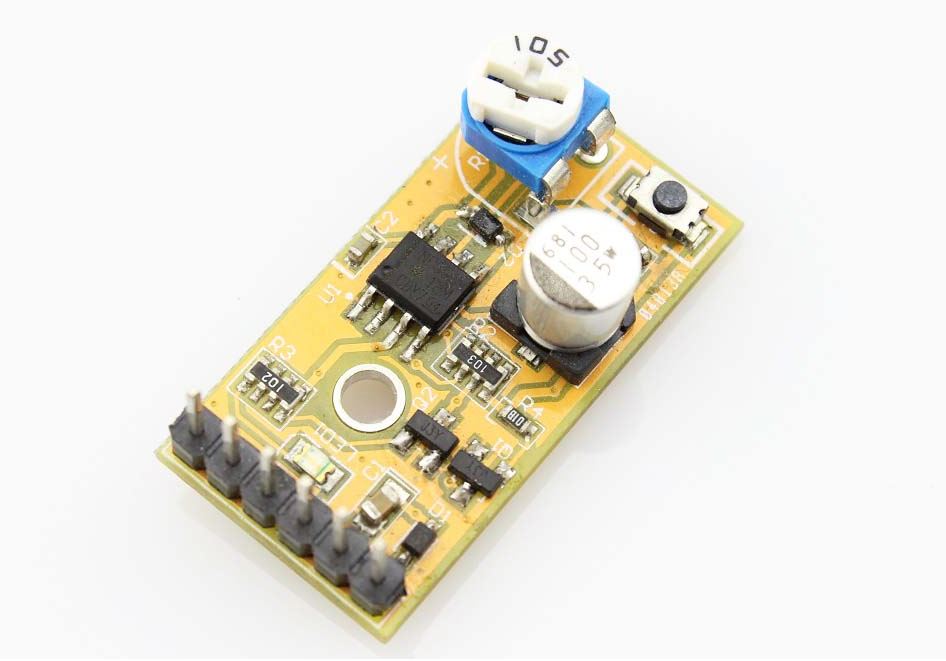

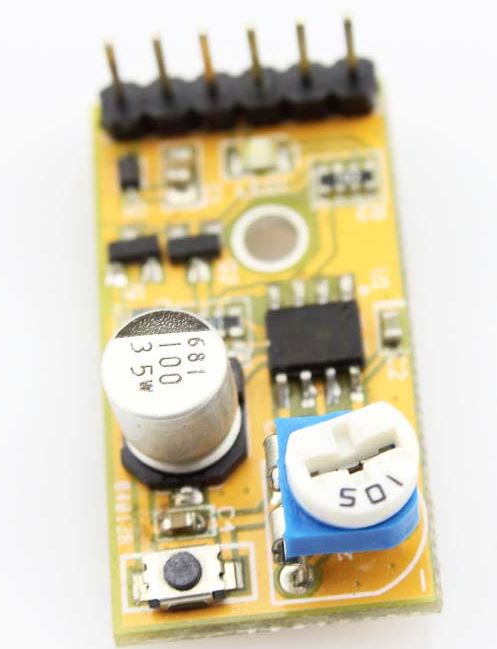

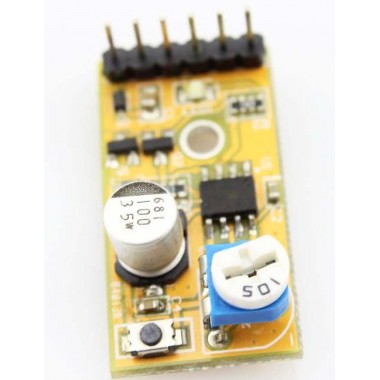

Electronic Time Delay Module
Módulo temporizador, con tiempo seteable entre 0 y 14 minutos mediante un potenciómetro.
COD: ESPTD014M
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 13691.00
El producto no está disponible para la venta en este momento
Características
This time delay module provides you a way to control the time. Some time, you may want to control a LED on/off within some time, a microcontroller would be ok for such an application, but it would be troublesome, and expensive! This module would be help in these applications. With this module, you can set a delay time 0~14 minutes with the onboard potentiometer, unlike the other mechanic timer, this module is also friendly to microcontrollers, you can set the module start/stop timing, which makes it convenient in actual projects.
Specification
- Working Voltage: 5V
- LED indicator
- Multi-output, works with microcontroller
- Delay time adjustable by potentiometer, 0~14 mins
- Current Output, Max output current: 300 mA
- Dimension: 31*17mm
delay_timer_module.pdf (152 Kb)
