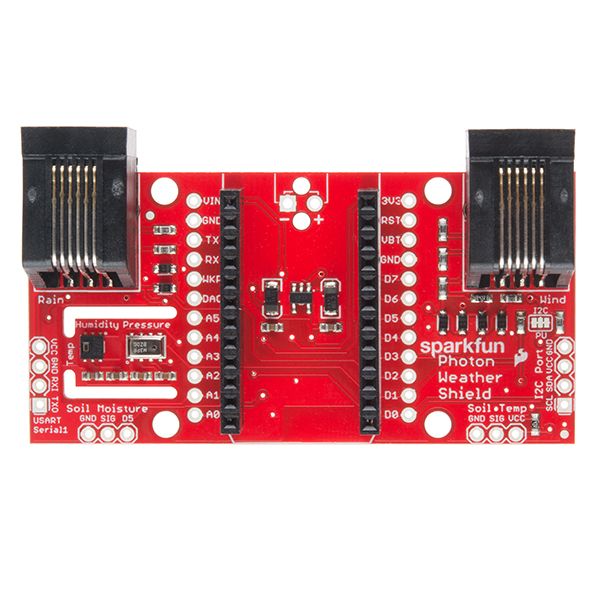

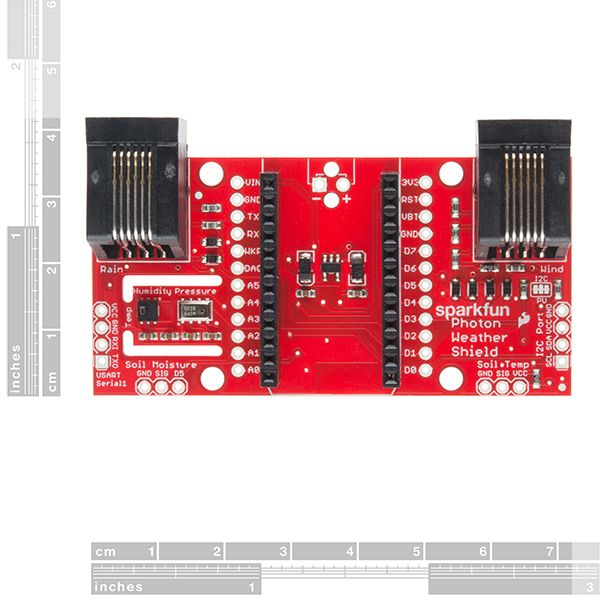

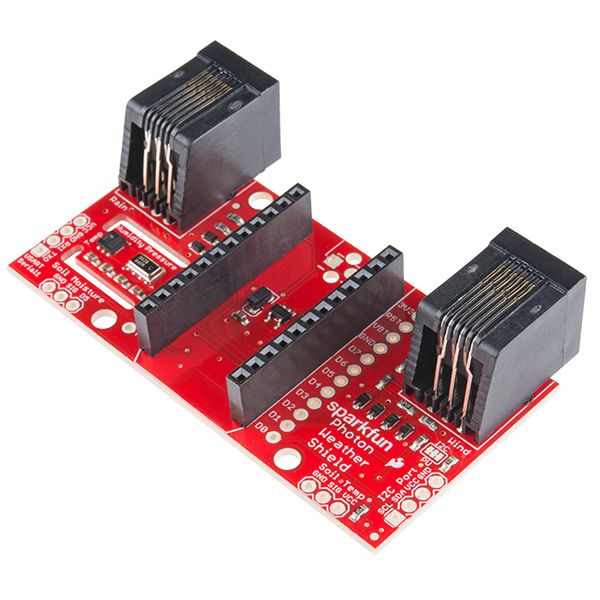

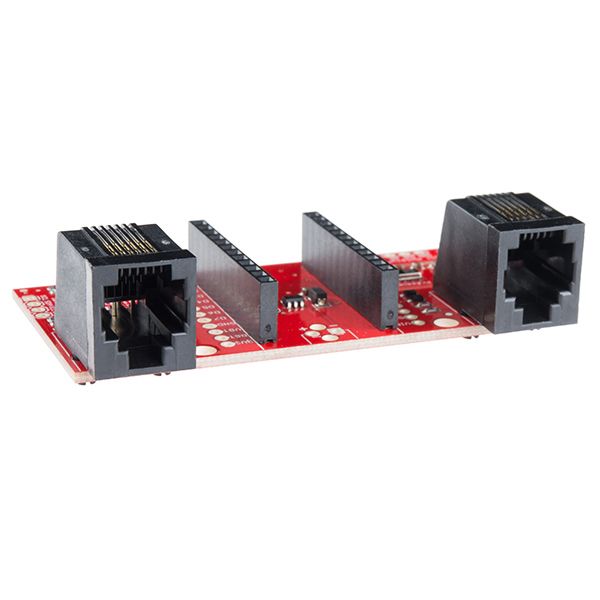

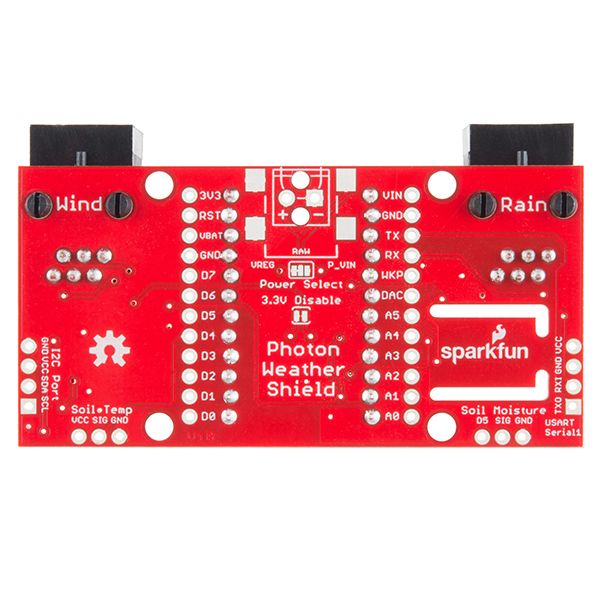

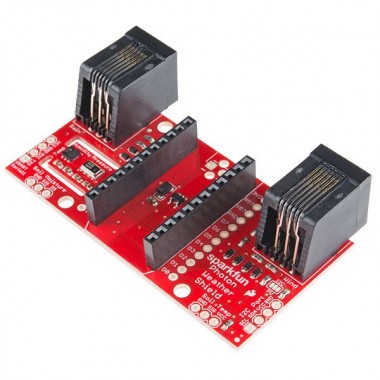

SparkFun Photon Weather Shield
Shield de estación meteorológica para Photon, brinda acceso a presión barométrica, HR% y temperatura y posibilidad de conexión a mas sensores.
COD: SFDEV13630
Peso: 0.019 Kg
Disponibilidad: Sin Stock
ARS 39934.00
El producto no está disponible para la venta en este momento
Características
The SparkFun Photon Weather Shield is an easy to use add-on board that grants you access to barometric pressure, relative humidity, and temperature. There are also connections on this shield to optional sensors such as wind speed, direction, rain gauge and soil readings!
These Weather Shields utilize the HTU21D humidity and MPL3115A2 barometric pressure sensors. Each shield comes with two RJ11 connectors (for optional hook up of rain and wind sensors) and a 3-pin soil temperature and moisture hookups. Finally, each Weather Shield can attach effectively and easily to your Photon in no time at all!
The Particle Photon is a tiny WiFi development kit for creating connected projects and products. Sporting a 120Mhz ARM Cortex M3 and built-in WiFi, the Photon is not only powerful, but easy to use. The small form factor is ideal for IoT projects with cloud-connectivity.
Note: Not only can this shield operate with the Photon, it can also be used with the Particle Core! We understand that there are a ton of you out there who still haven’t been able to get your hands on a Photon yet and would like to start playing with this shield now. If that person is you we hope we have obliged!
Features:
- Humidity/Temperature Sensor - HTU21D
- Barometric Pressure - MPL3115A2
- Headers and Connectors Pre-Soldered
- Compatible with the Photon and the Core
Documents:
525778d4757b7f50398b4567_w0.pdf (1472 Kb)
sparkfun_photon_weather_shield_v10a.zip (160 Kb)
