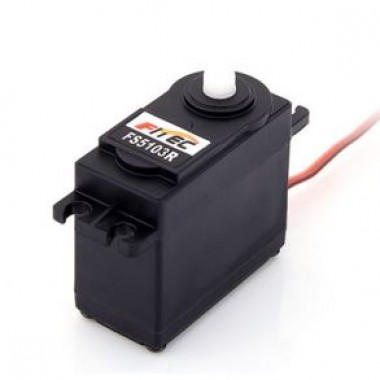

3 KG standard continues rotation servo

3 KG standard continues rotation servo

Servo de rotación continua, torque 3kg.cm.

COD: FTFS5103R

Peso: 0.036 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 15506.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

This servo rotates fully forward or backwards instead of moving to a position. You can use any servo code, hardware or library to control these servos. Good for making simple moving robots. Comes with four different horns, as shown.

To control with an Arduino, we suggest connecting the control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "90" (1.5ms pulse) is stop, "180" (2ms pulse) is full speed forward, "0" (1ms pulse) is full speed backwards. They may require some simple calibration, simply tell the servo to 'stop' and then gently adjust the potentiometer in the recessed hole with a small screwdriver until the servo stops moving.



TECHNICAL DETAILS

Details:
  • Operating Voltage: 4.8V~6V (5V works best)
  • Average Speed: ~0.18sec/60°
  • Stall Torque (4.8V): 3kg.cm/41.74oz.in
  • Stall Torque (6V): 3.2kg.com/44.52oz.in
  • Required Pulse: 500us-2500us
  • Connector Wire Length: 30cm / 11.8"
  • Dimensions: 37mm x 54mm x 20mm / 1.5" x 2.1" x 0.8"
  • Weight (no horns): 40g
  • Spline Count: 25



Galería de Imágenes

Galería de Videos

Comentarios

Escribir Comentario

OpenHacks (07/06/2016 - 12:08)

Hola Daniel, el sentido puede elegirse. En la descripción del producto hay un link con un ejemplo. Saludos!

Daniel (06/06/2016 - 22:28)

Hola! Por que dice dirección antihoraria(CCW)? Acaso solo pueden girar en un solo sentido o este puede elegirse? Gracias
