Particle Photon

Pequeña placa de desarrollo con WiFi basada en un poderoso ARM Cortex M3, ideal para IoT.

COD: SE114990286

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 42988.00


El producto no está disponible para la venta en este momento

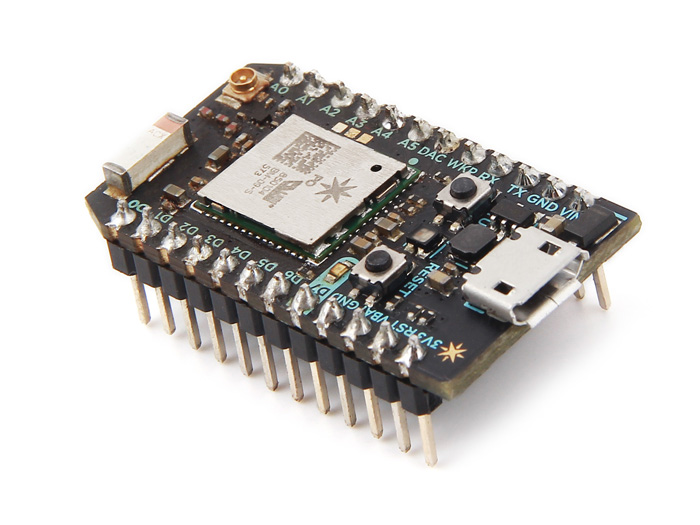

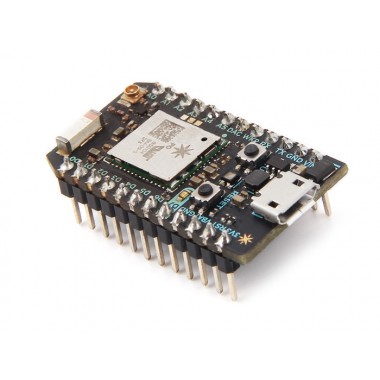

Particle�??s Photon, is a tiny Wi-Fi development kit for creating connected projects and products for the Internet of Things (IoT). It is easy to use, powerful and connected to the cloud. Particle combines a powerful ARM Cortex M3 microcontroller with a Broadcom Wi-Fi chip in a tiny thumbnail-size module called the P0 (P-Zero).
To get you started quickly, Particle adds a rock solid 3.3VDC SMPS power supply, RF and user interface components to the P0 on a small single-sided PCB called Photon. The design is open source, so when you are ready to integrate the Photon into your product, you can.
The tools that make up the Photon�??s ecosystem (and come along with the board) are designed to let you build and create whether you are an embedded engineer, web developer, Arduino enthusiast or IoT entrepreneur. You�??ll be able to write your firmware in Particle web or local IDE, deploy it over the air, and build your web and mobile apps with ParticleJS and our Mobile SDK.

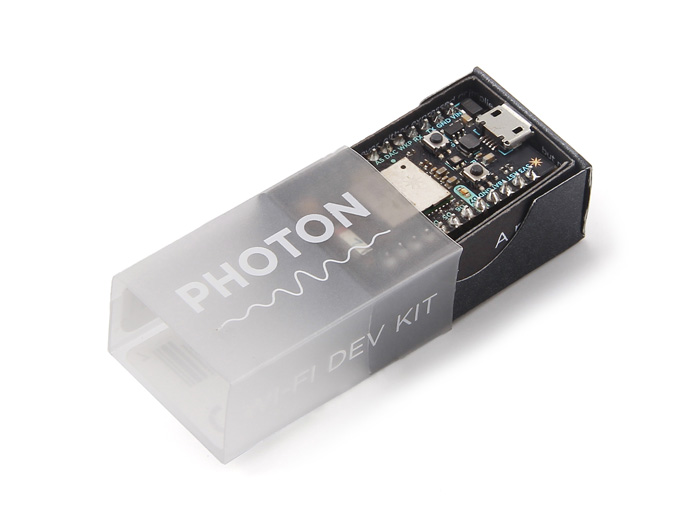

The Photon comes in with headers. Prototyping is easy with headers as the Photon plugs directly into standard breadboards and perfboards, and may also be mounted with 0.1�?� pitch female headers on PCB.

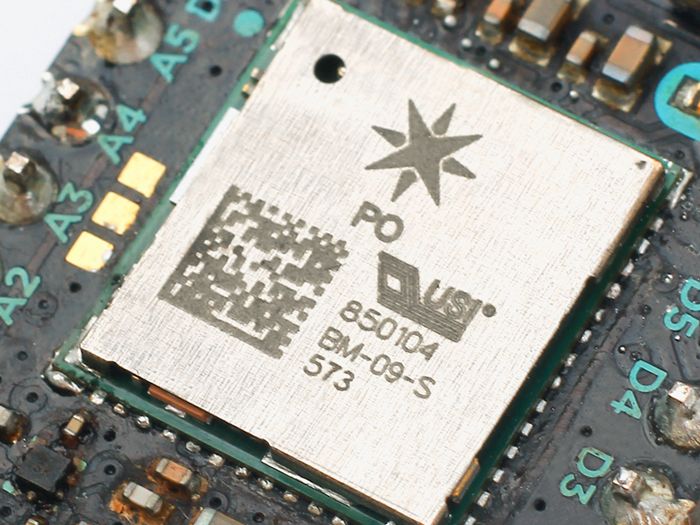

  • Particle P0 Wi-Fi module
    Broadcom BCM43362 Wi-Fi chip
    802.11b/g/n Wi-Fi
    STM32F205 120Mhz ARM Cortex M3
    1MB flash, 128KB RAM
  • On-board RGB status LED
  • 18 Mixed0signal GPIO and advanced peripherals
  • Open source design
  • Real-time operating system (FreeRTOS)
  • Soft AP setup
  • FCC, CE and IC certified
Part List:
  • 1 x Particle Photon
For any technical support or suggestion, please kindly visit our�??forum.
