Relay Shield v1.1

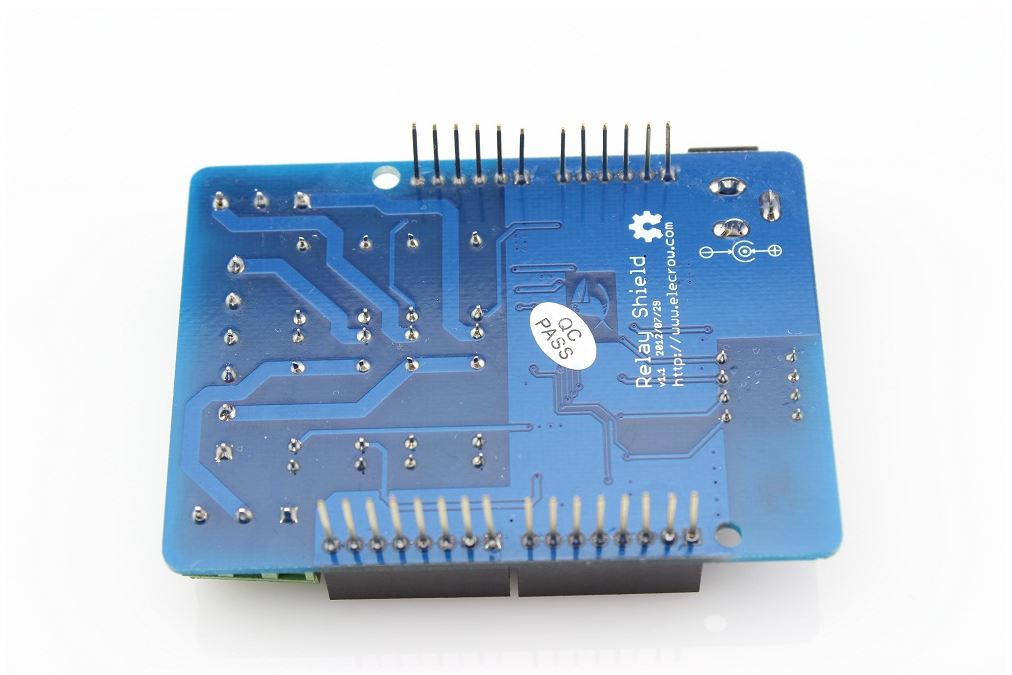

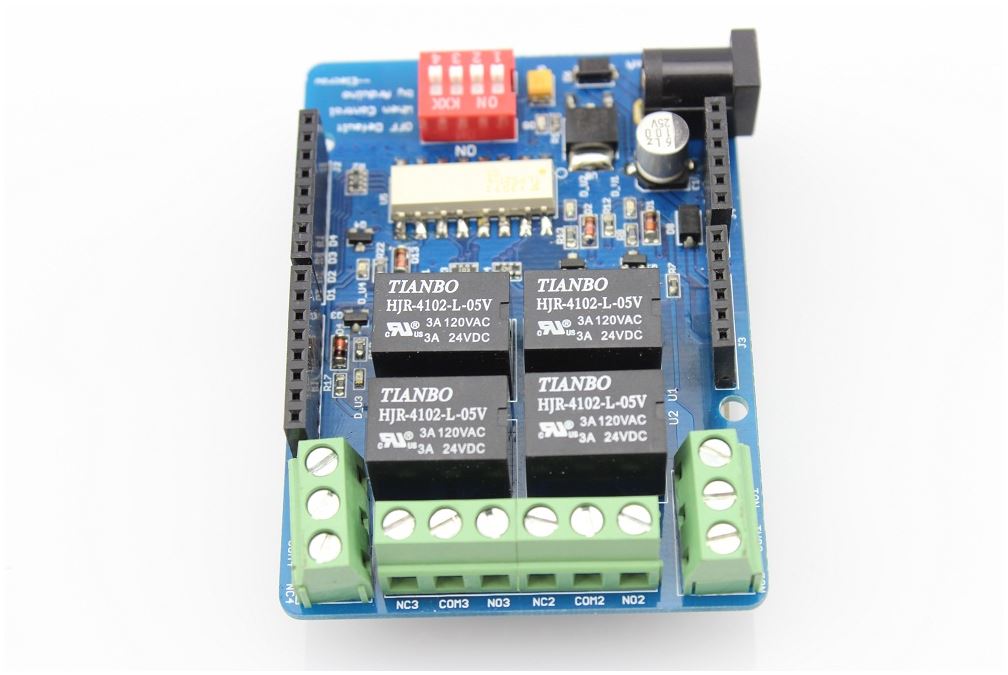

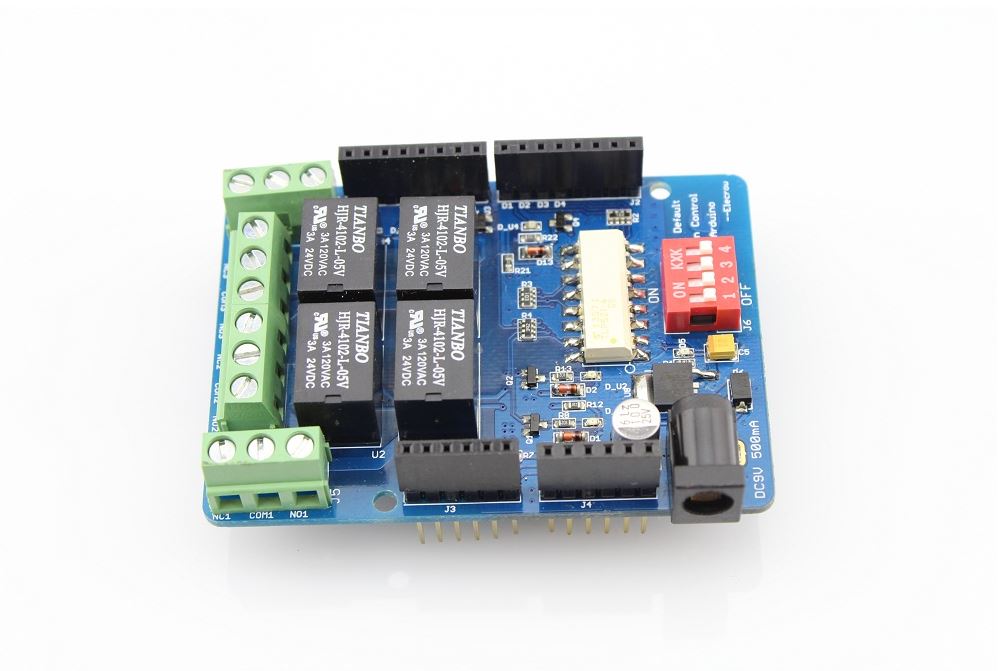

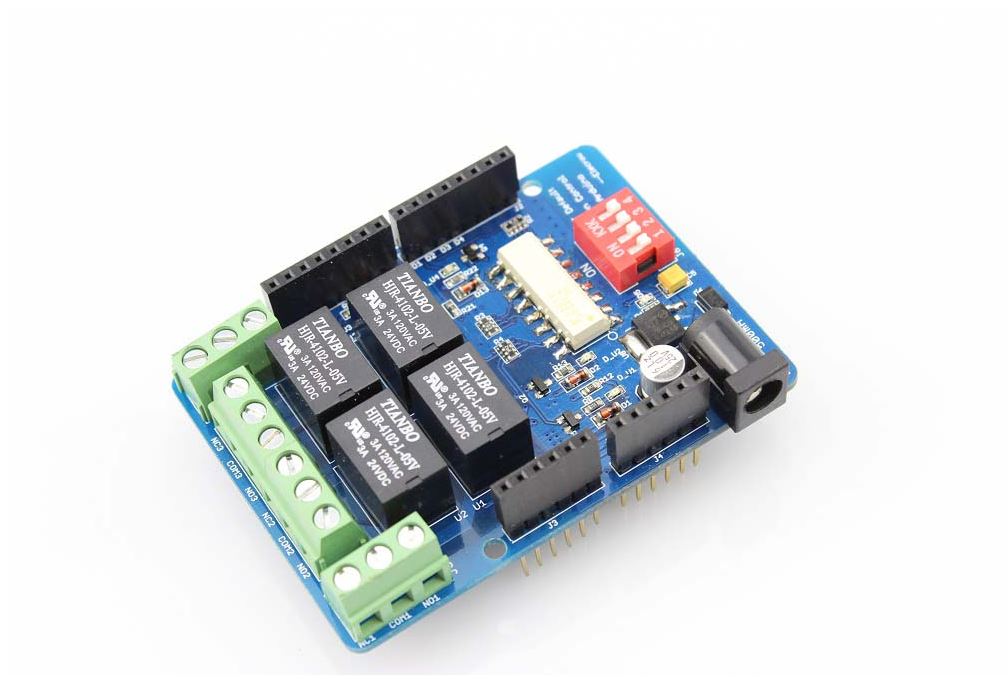

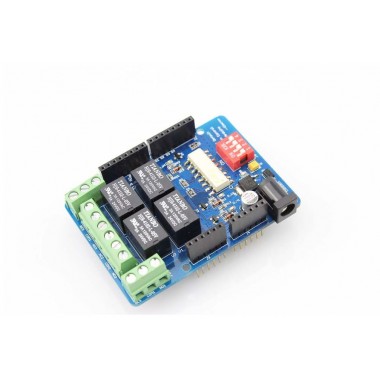

Relay Shield v1.1

Shield que incluye 4 relés, brindando una manera simple de controlar mayores potencias con Arduino.

COD: EMCS01584R

Peso: 0.054 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 12809.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Relay Shield v1.1 is an Arduino compatible smart module with 4 mechanical relays providing an easy way to control high voltage. The max switching power is 35VDC 70W for each channel. It can be directly controlled by Arduino/Crowduino through digital IOs with external 9V DC supply. Compared to the Relay shield1.0, the v1.1 version use 4 selector instead of those push buttons used on version1.0, to make it more convenient to control the relays manually.

    Note: Please note that the pins on relay shield should not touch the USB connector of Arduino UNO when they are connected.

Features

  • Arduino,Crowduino, Arduino Mega compatible
  • Automatic control and manual control
  • 4 mechanical relays with photo-coupled circuit
  • Equipped with screw holes for easy installation
  • Light weight
  • Small form factor
  • Extendible

Specification

  • Voltage: 7~12V
  • Current: 8~250mA
  • Switching Voltage: Max 35V
  • Switching Current : Max 2A
  • Frequency Response: -1~1dB
  • Switching Power: Max 70W
  • Relay Life: > 100000

Caution

    Placing 2 layers of electrical tape on the top of the Arduino's usb connector will prevent the relay shield from making contact. Do not operate voltage more than 35V DC.

Package list

  • Relay shield PCBA x1
