AC Current Detection Module - 50A Digital Output

AC Current Measurement Module - 50A Digital Output

Sensor de corriente alterna con salida relé, puede detectar hasta 50A y presenta resolución configurable.

COD: ESES40287S

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 35929.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

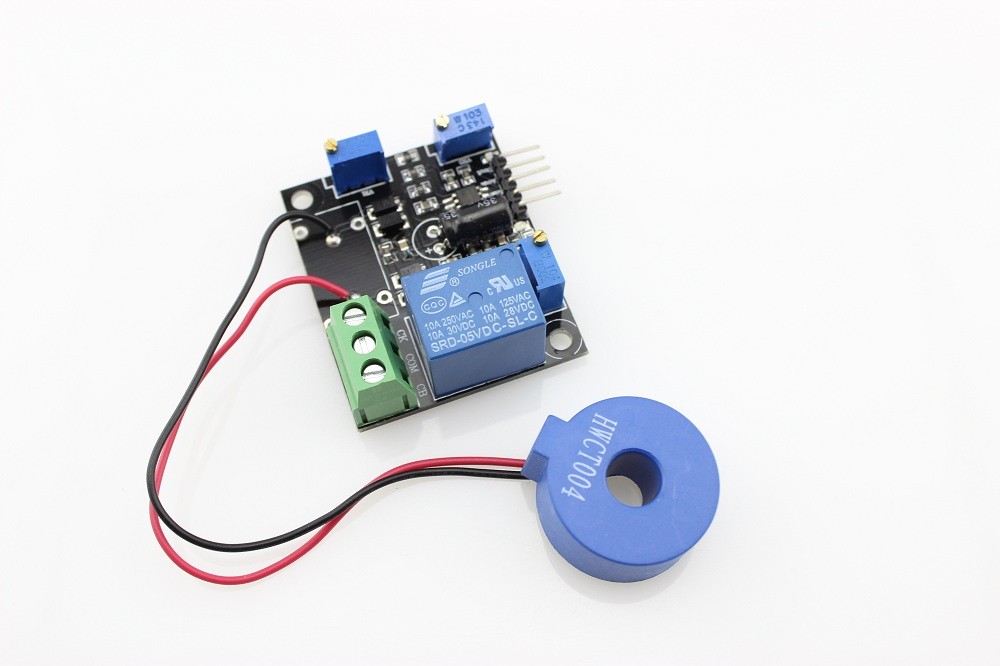

This is a current detection module, it can detect the Short circuit of the AC circuit. The Maximum Current detection of it is 50A and output digital signal.

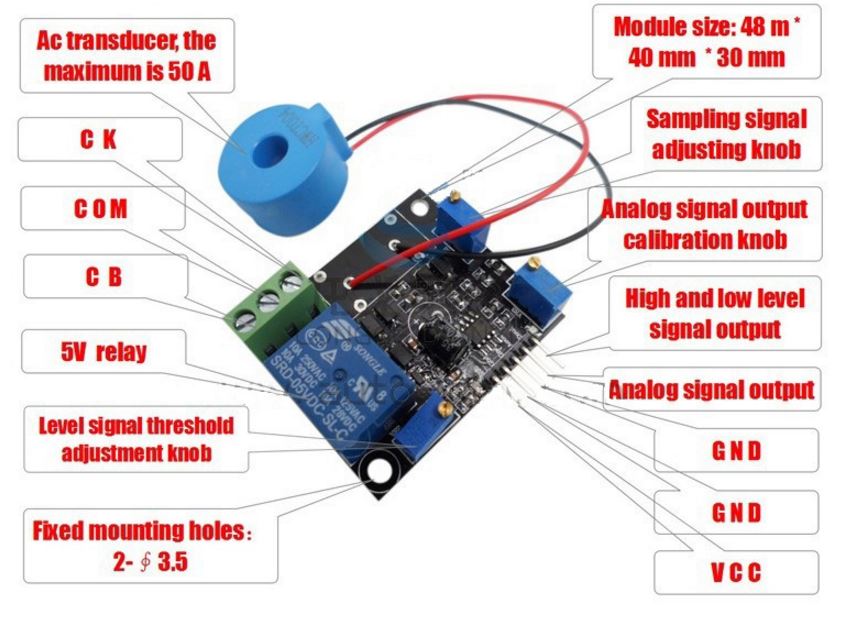

Features

  • Dimensions: length 48mmX high 30mm wide 40mm
  • Main chip: op amp, transformers
  • Working voltage: DC5V
  • Digital output
  • The current detection range: AC Maximum 50A
  • The current sense resistor resolution parameter settings can be changed
  • The critical point set overcurrent signal is adjustable, set the resolution 0.3A
  • With fixed mounting holes for easy fixed installation
