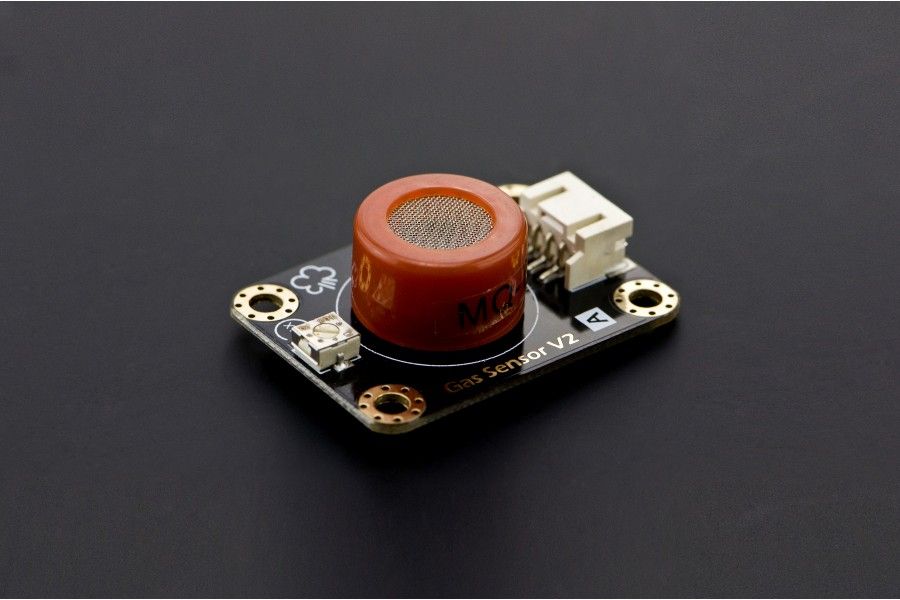

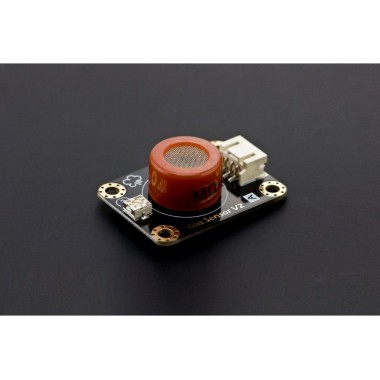

Gravity:Analog Carbon Monoxide Sensor (MQ7)
![Gravity:Analog Carbon Monoxide Sensor (MQ7)](/library/timthumb/timthumb.php?src=/uploadsproductos/_dsc0771-900x600.jpg&w=380&h=380&zc=2)
Sensor de Monóxido de Carbono, desde 20 a 2000ppm (sensibilidad ajustable)
COD: DFSEN0132
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 23909.00
El producto no está disponible para la venta en este momento
Características
Gravity:Analog Carbon Monoxide Sensor (MQ7)
The MQ7 is a simple-to-use Carbon Monoxide (CO) sensor suitable for sensing CO concentrations in the air. It can detect CO-gas concentrations anywhere from 20 to 2000ppm. The sensitivity can be adjusted by the potentiometer.
Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.
![](http://www.dfrobot.com/image/data/SEN0127/pin%20mapping%20comparison.jpg)
RELATED BLOGS
SPECIFICATION
- Power supply needs: 5V
- Interface type: Analog
- Pin Definition: 1-Output 2-GND 3-VCC
- High sensitivity to carbon monoxide
- Fast response
- Stable and long life

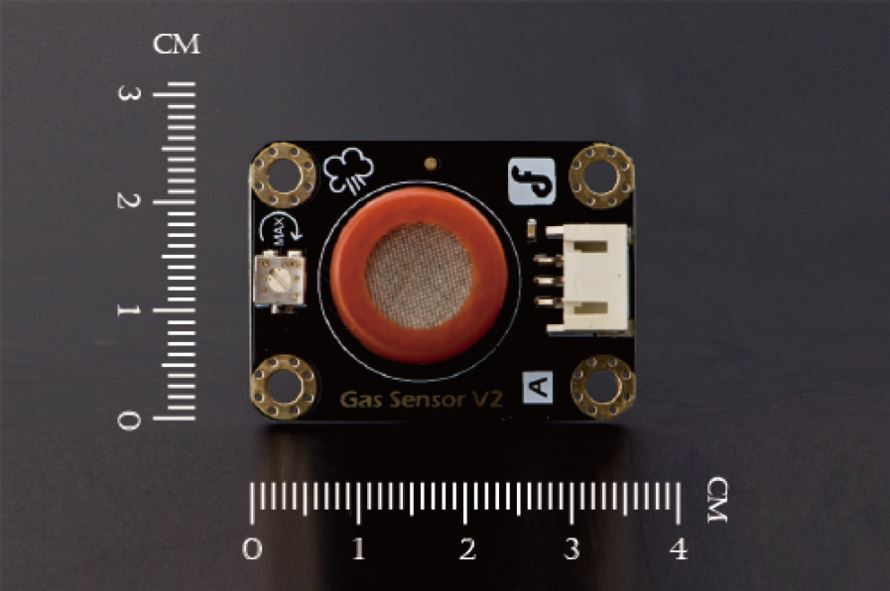

- Size: 40x20mm
