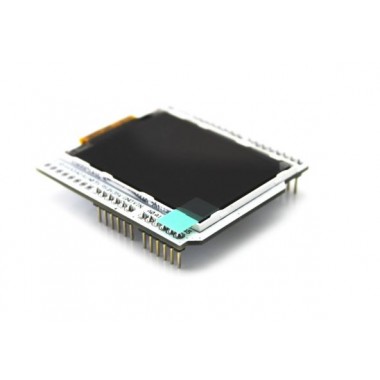

TFT2.2SP Shield
Shield TFT compatible con Aruino, con zócalo SD Dual!
COD: EF02004
Peso: 0.018 Kg
Disponibilidad: En Stock
ARS 28563.00
El producto no está disponible para la venta en este momento
Características

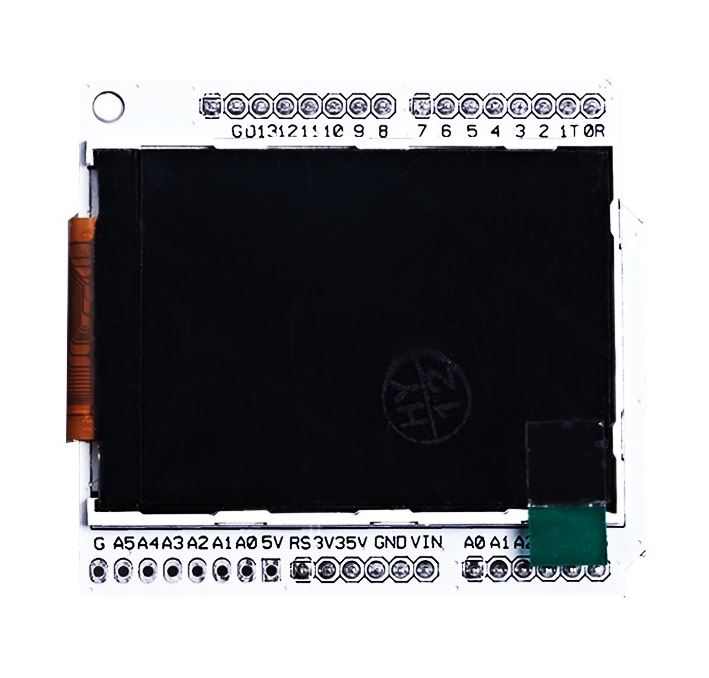

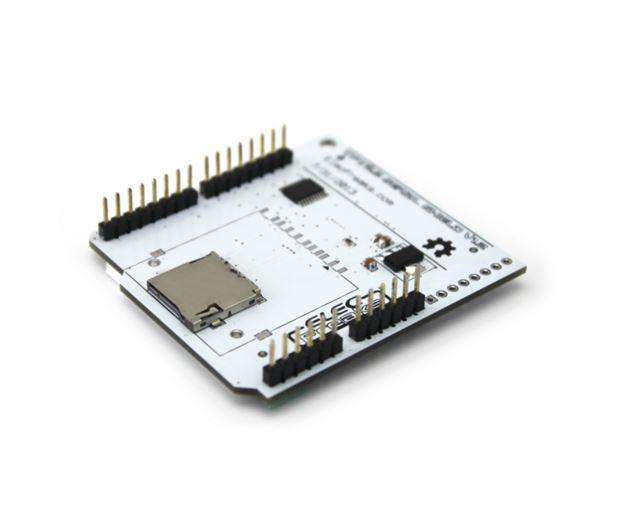

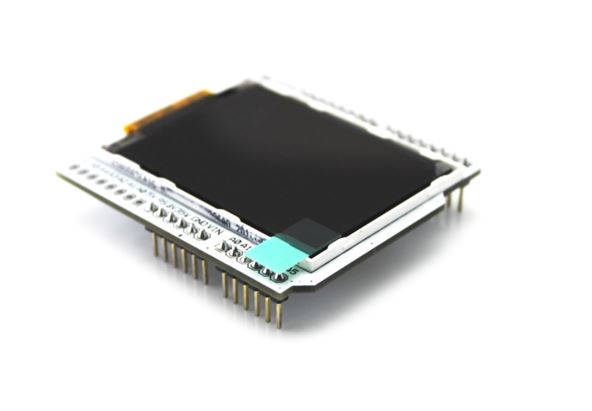

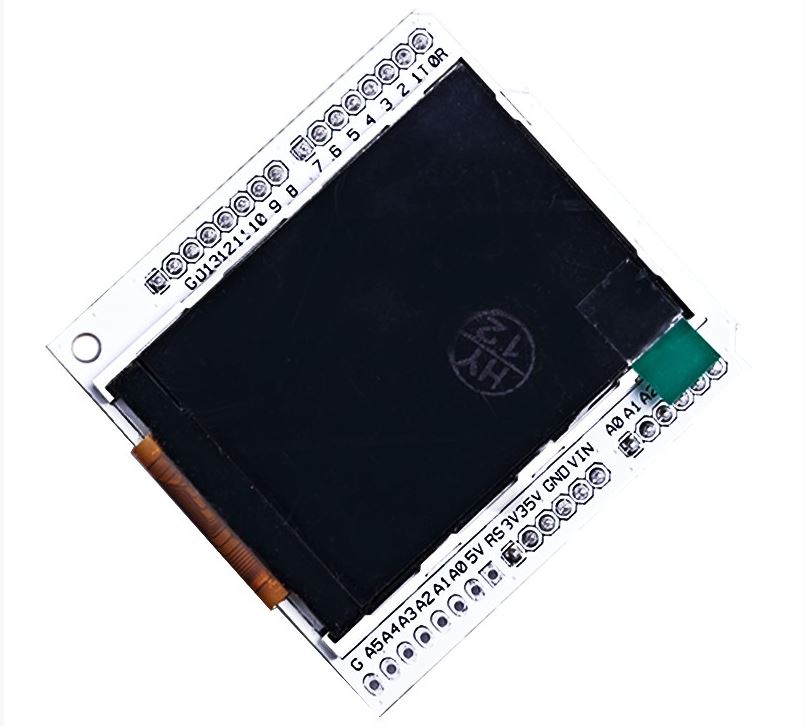

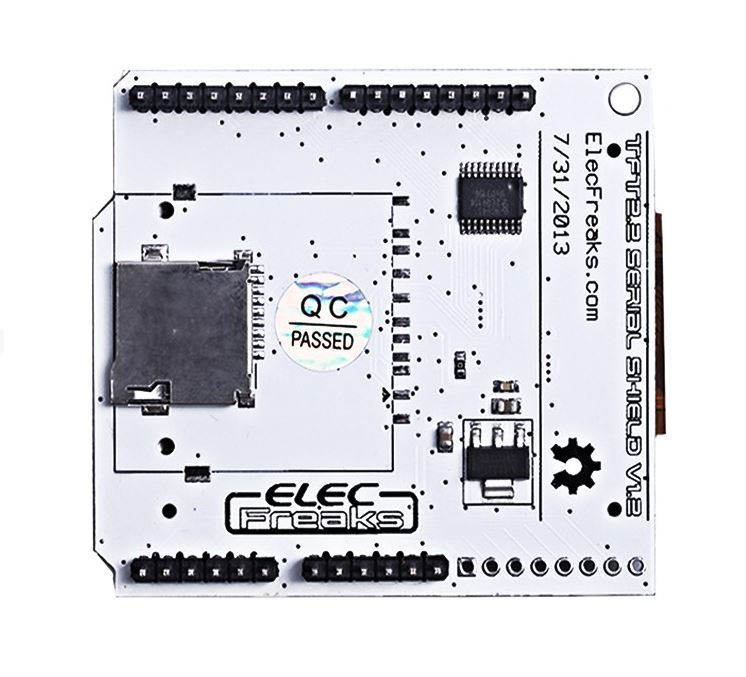

TFT2.2_Serial_Shield is the 2.2-inch LCD SPI serial expansion board with dual SD card socket, as the SPI serial 2.2-inch LCD's operating voltage is 3.3V, we specially added a 3.3V LDO regulator circuit in the shield, therefore, you can directly use the 5V power supply. It is fully compatible with Arduino UNO board, so you can achieve the required functionality only by assembling the TFT2.2_Serial_Shield with the Arduino UNO board. In addition, it comes with two SD card socket, a large one and a small one, we just solder on mircSD.
Feature:
- 3.3 V / 5 V operating voltage
- SPI serial interface (CS, RS, SCL, SDA, RST)
- Resolution: 240 * 320
- Support any single-chip driver
- TFT controller / driver: ILI9341
Package List:
- 1 x TFT2.2SP Shield
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
ef02004-ili9341_ds_v1.09_20110315.zip (3614 Kb)
ef02004-tft2.2_serial_shield_v1.2_sch.pdf (32 Kb)
