Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL
Antena GSM/Celular cuatribanda adhesiva, con cable de 75mm y 3dBi de ganancia.
COD: D001991
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 6284.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION

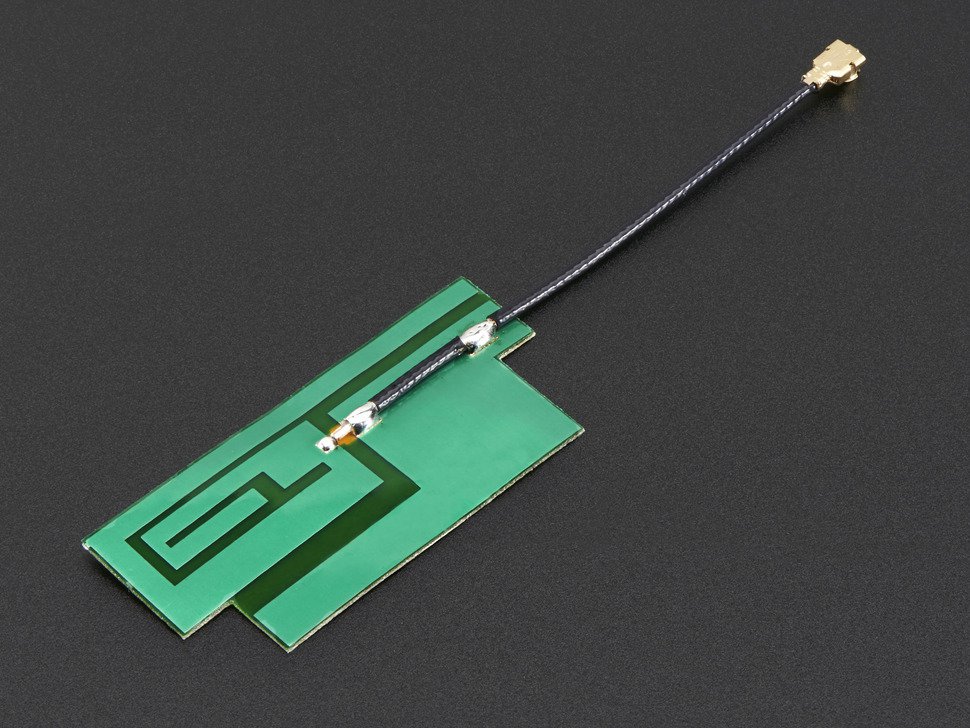

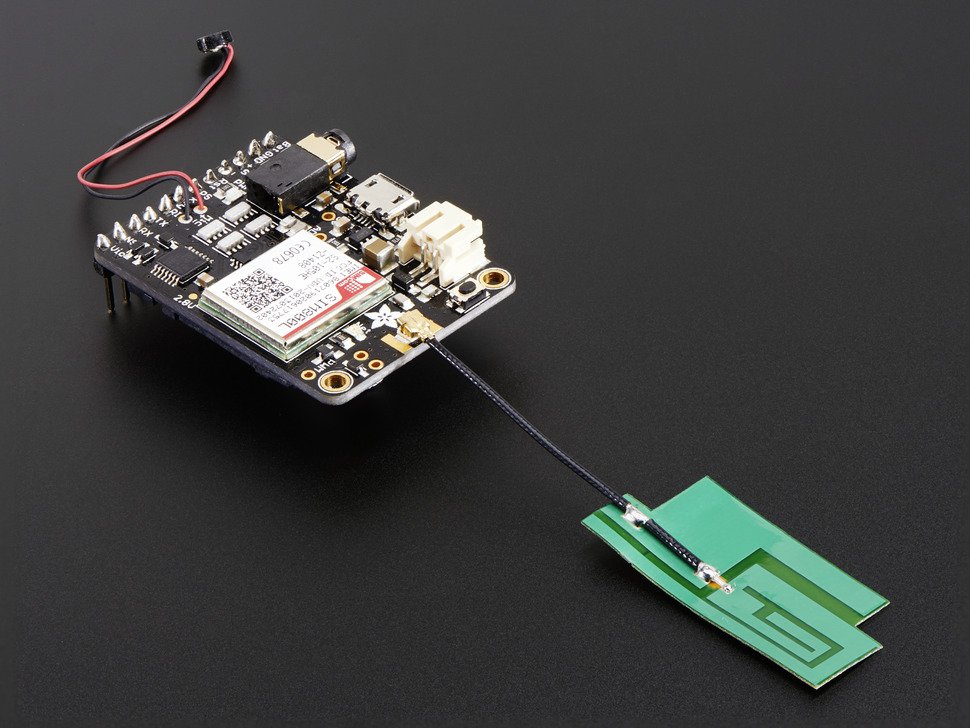

That's one slim cellular antenna! At just 75mm long from tip to tip and and with a thickness of just 2mm, this 3dBi GSM antenna is slim, compact and sensitive, with a 3dBi gain. The antenna juts out from its base with stick-on back so you attach it to an enclosure if you're making something like, say, a DIY phone. It has a tiny uFL connector on the end - which is perfect for the FONA - but will also work well for any other RF project on the 850/900/1800/1900/2100 bands, such as any other Cellular or GSM/GPRS device.
TECHNICAL DETAILS
Dimensions:

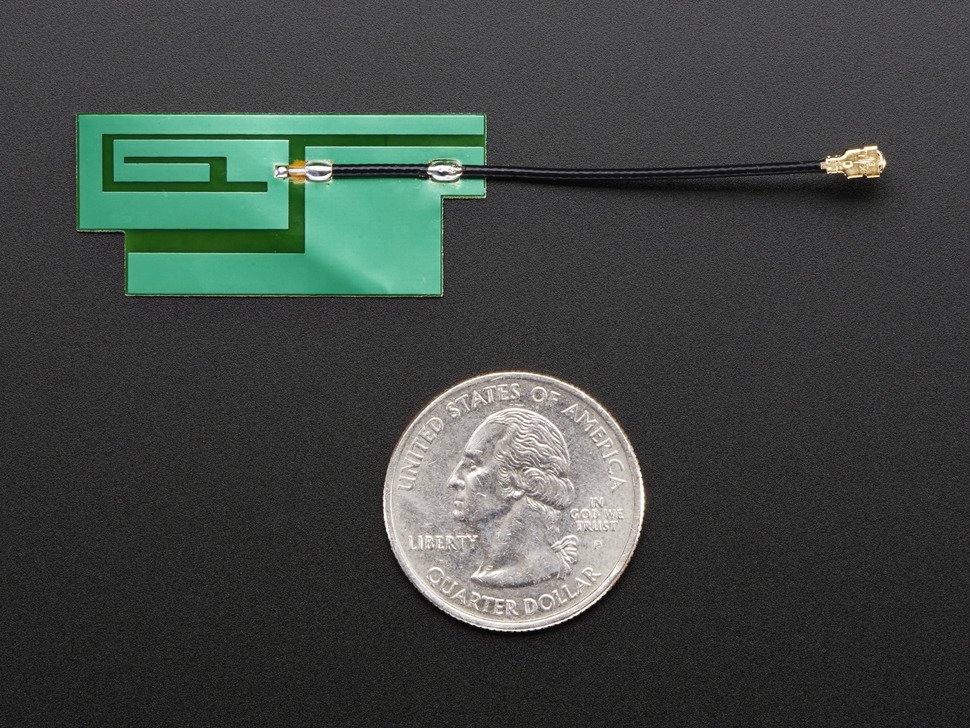

- Length w/ stick-on back: 75mm/3.0" long with stick-on back
- Antenna length: 38mm/1.5"
- Weight: 0.5g
1991datasheet.pdf (1930 Kb)
