315M RF Controller Kit

315M RF Controller Kit

Kit control remoto RF de cuatro pulsadores en 315MHz, incluye receptor. El transmisor está dotado de una antena telescópica.

COD: EWRF315KIT

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 8368.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

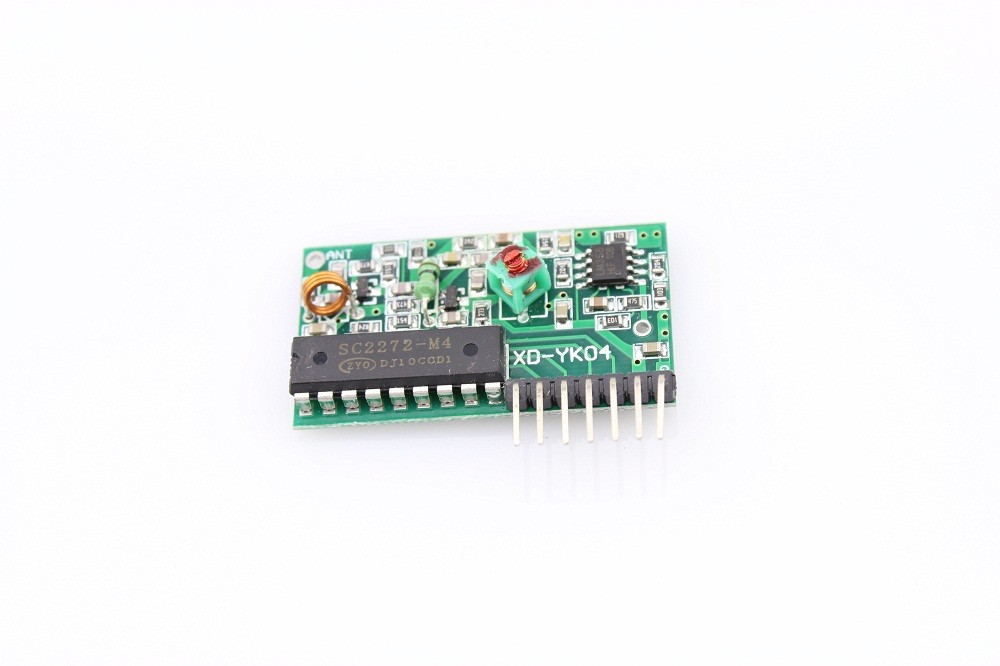

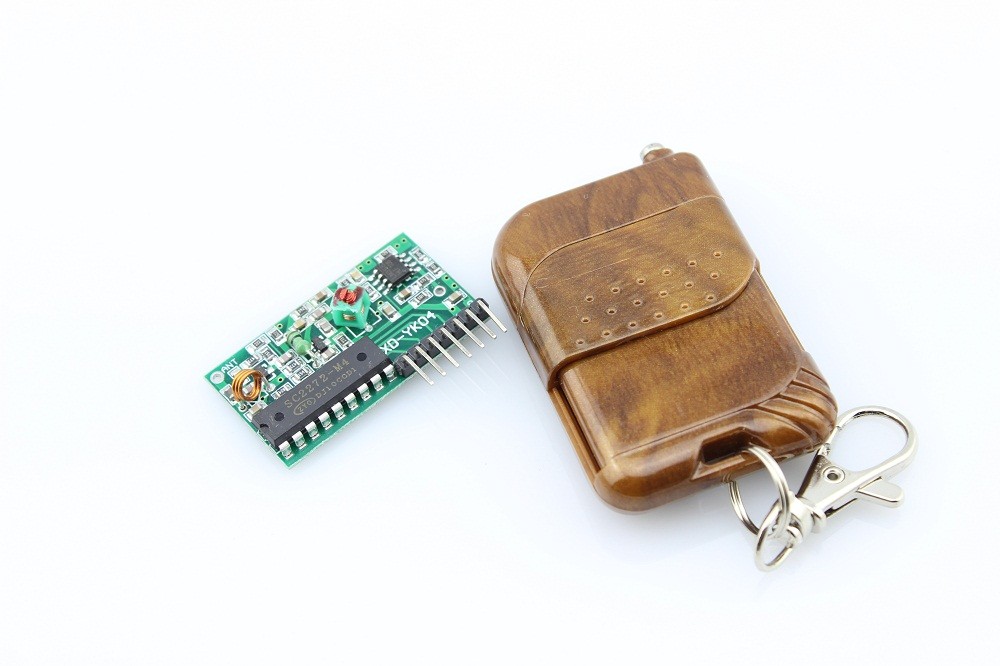

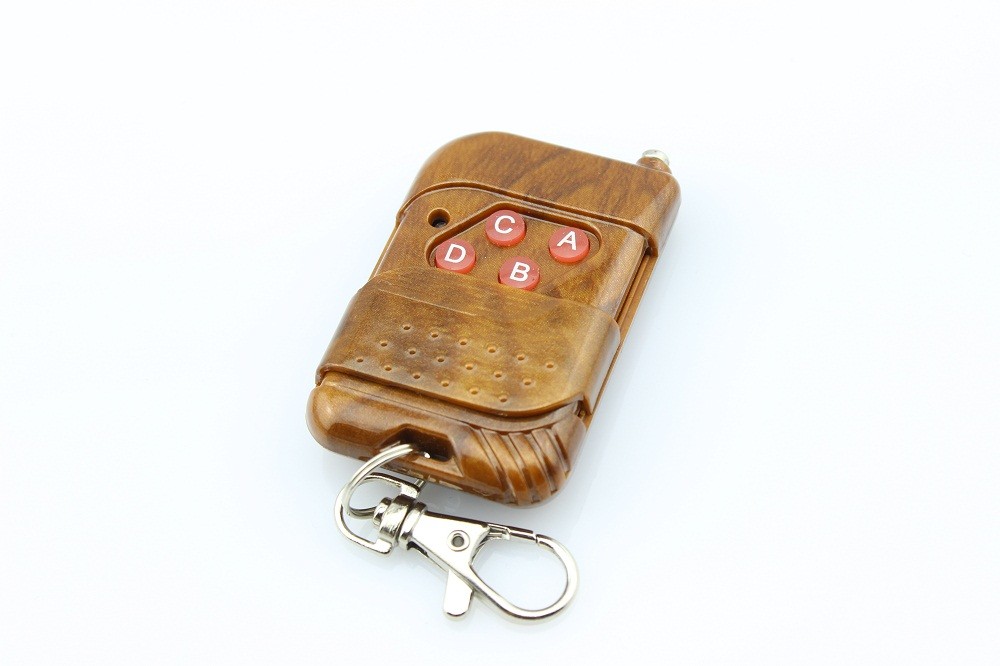

This wireless controller kit uses the SC2273-L4 SC2272-M4 to encode& decode, very suit for simple wireless controls. It is consist of a keyfob 4-Button RF remote controller and a simple RF M4 receiver, There's no programming, configuring or addressing - simply power the receiver with 5VDC and press the buttons on our matching RF keyfob remote. When the A button is pressed, it activates the first pin, when the B button is pressed, it activates the second one, and so forth for all four buttons. There's no microcontroller required, it’s just a simple one-to-one link.

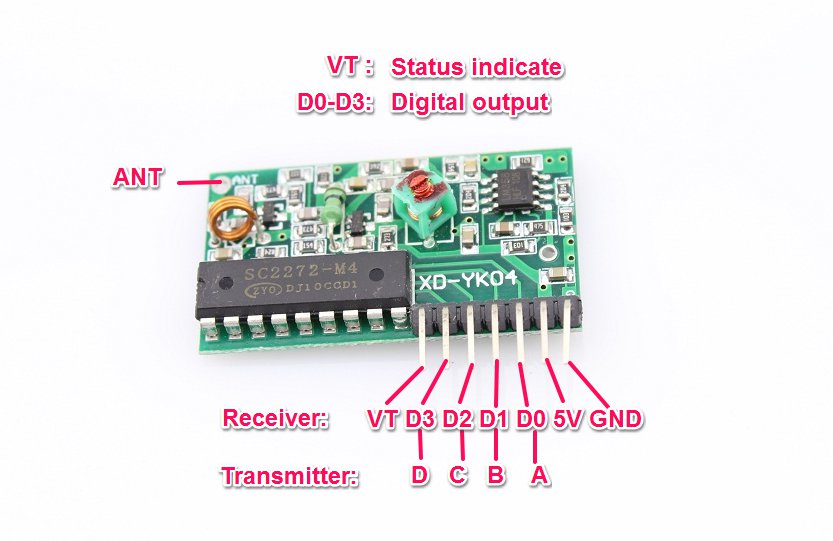

    The voltage of corresponding outputs pins of the receiver will change to HIHG while related button on the keyfob pressed, and thus to change to LOW while the button released.



Specification

  • Modulation schemes: amplitude modulation (AM)
  • Standard Current: 4.5mA
  • Keyfob Battery voltage: DC12V
  • Receiver Voltage:DC5V
  • Operating temperature: -10 ℃ ~ +70 ° C

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (04/07/2016 - 14:51)

Hola Daniel. Si, es de tipo momentary. Mientras esté pulsado el botón, su salida correspondiente estará en alto. En cuanto a la antena, se puede hacer con un cable enrollado de 47 o 24cm. Saludos!

Daniel (03/07/2016 - 13:17)

El receptor es el mismo que el producto D001096 tipo momentary? y la antena del receptor hay que hacerla?
