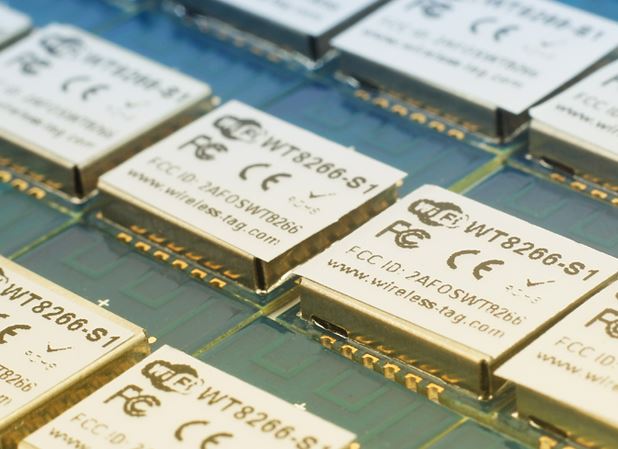

SE317060019 WT8266-S1 FCC/CE/RoHS/ Wi-Fi Module based on ESP8266

Características

DESCRIPTION

WT8266-S1 FCC/CE/RoHS/ Wi-Fi Module based on ESP8266 is a low consumption, high performance embedded Wi-Fi network control module designed by Wireless-Tag. It can meet the IoT application requirements in smart power grids, building automation, security and protection, smart home, remote health care etc.

Features:

Operating Voltage: 3.3V

Operating Temperature?-40°C -85°C

CPU Tensilica L106

RAM 36KB?Available?
Flash 32Mbit

System:

802.11 b/g/n
IntegratedTensilica L106 ultra-low power 32-bitmicro MCU, with 16 bit compact mode,main frequency
support 80 MHz and 160 MHz, support RTOS
WIFI 2.4 GHz?supportWPA/WPA2

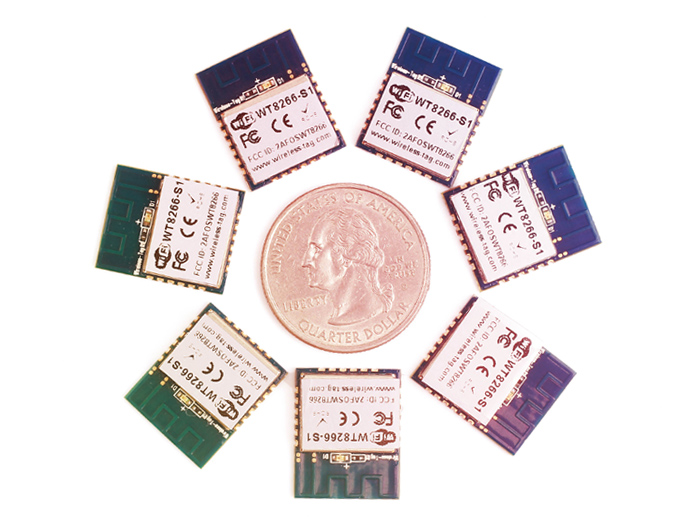

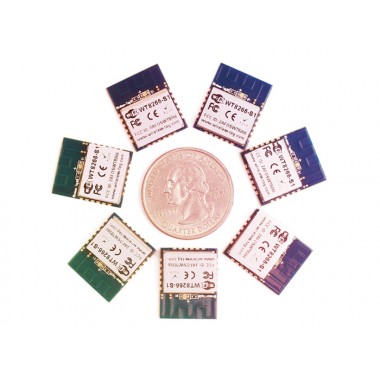

Ultra-Small 18.6mm*15.0mm
Integrated 10 bit high precision ADC
Integrated TCP/IP Stack
IntegratedTR switch? balun? LNA?Power amplifier and matching network
Integrated PLL?Regulator and power source management components, +20 dBm output power in 802.11b mode
Supports antenna diversity
Deep sleep current < 20uA, Power down leakage current < 5uA
It can use an application processor SDIO 2.0?SPI? UART
Polymerization of STBC? 1x1 MIMO? 2x1 MIMO A-MPDU ?A-MSDU and 0.4 sguard interval
Wake up within 2ms, connect and transfer data packets
Standby power consumption < 1.0mW (DTIM3)
Support AT remote upgrades and cloud OTA upgrade
Support STA/AP/STA+AP operation modes

Feature summary:

Distance 280meters--3 Bars, 350meters no prolem. Up to 400 meters
Industrial temp grade
CE, FCC, RoHs compliance
AT command
Transparent transmission
Ultra-low power consumption
32M flash

Specification:

WT8266-S1 FCC/CE/RoHS/ Wi-Fi Module based on ESP8266 is a low consumption, high performance embedded Wi-Fi network control module designed by Wireless-Tag. It can meet the IoT application requirements in smart power grids, building automation, security and protection, smart home, remote health care etc.

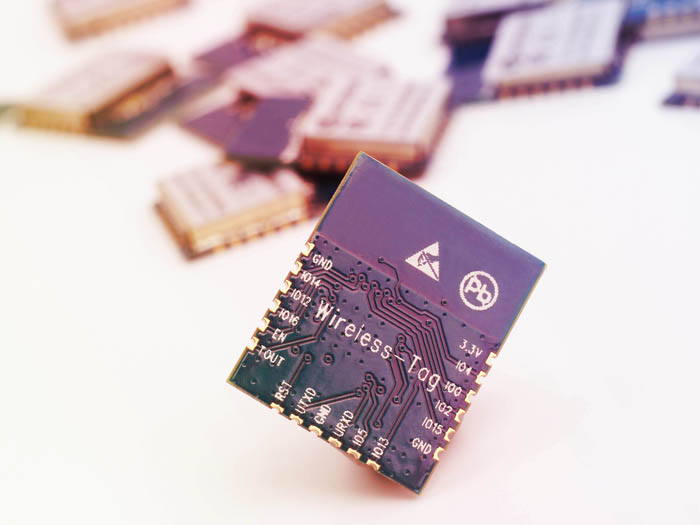

The module's core processor ESP8266 integrates an enhanced version of Tensilica's L106 Diamond series 32-bit processor with smaller package size and 16 bit compact mode, main frequency support 80 MHz and 160 MHz, support RTOS, integrated Wi-Fi MAC / BB / RF / PA / LNA, on-board PCB antenna.

The module supports standard IEEE802.11 b / g / n protocol, a complete TCP / IP protocol stack. Users can use the module to add networking capabilities for existing equipment , also can build a separate network
