Productos

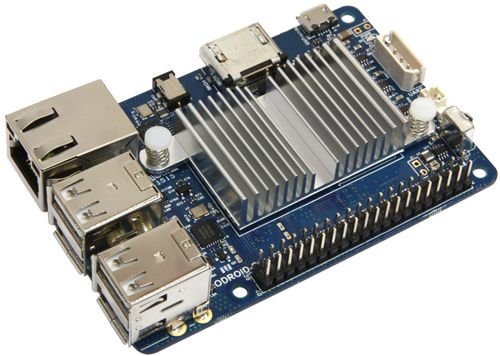

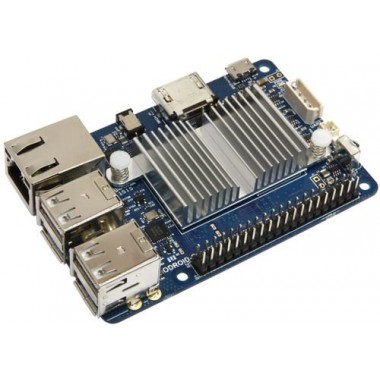

ODROID-C1-Plus

La placa-computadora Odroid C1+ es ideal para procesos de uso general en desarrollos software.

COD: OD058A

Peso: 0.040 Kg

Disponibilidad: Sin Stock

ARS 123067.00

El producto no está disponible para la venta en este momento

Características

Why settle for a lower specification single-board computer? For less money, get a quad-core CPU + dual-core GPU + 1GB DDR3 RAM + Gigabit Ethernet + 4x USB2.0 ports + infrared receiver + more!

The C1+ makes the perfect single-board computer for general purpose computing, software development and projects. The ODROID-C1+ gives loads of satisfaction and fun with incredible performance at a tiny price.

Check out the December 2014 issue of ODROID Magazine for all the details of this great board.

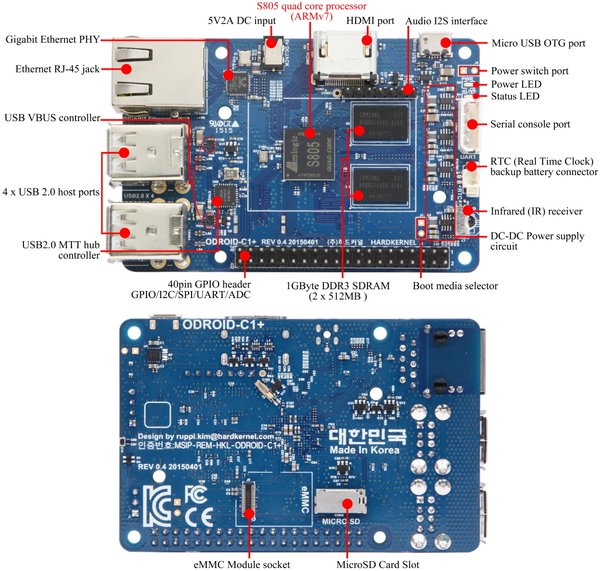

KEY FEATURES

Powerful Linux/Android Computer
1.5GHz quad-core CPU, dual-core GPU, 1GB RAM
10/100/1000Mbps Ethernet with RJ-45 LAN jack
4 x high speed USB2.0 host ports
40 GPIO pins (quasi-Raspberry Pi compatible - pins 37, 38, and 40 are not compatible with the Pi B+ as they are dedicated for analog inputs)
Linux or Android available
Size: 85 x 56 x 18 mm, Weight: 40g
Package includes main board

UPGRADED FEATURES

Full-sized HDMI connector (Type A)
Heat sink included (a $3.95 value)!

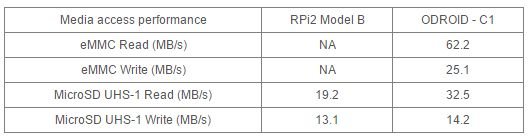

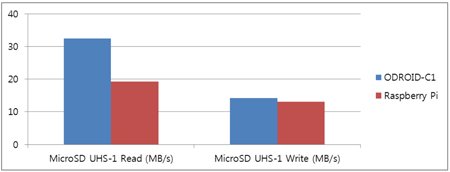

Expanded microSD card compatibility - The original C1 worked optimally with a specific set of microSD cards, and using a non-compliant card would sometimes result in a slow-booting or non-booting image. The C1+ is compatible with a wider array of microSD cards.
Improved CEC functionality - The CEC hardware has been updated to operate regardless of the presence of an RTC backup battery.
USB OTG power path - A small hardware modification could be performed on the original C1 to allow it to be powered via the USB OTG port. This modification is now standard with the C1+ model.
I2S signals exposed for external audio DAC - The I2S signals can be easily accessed on the C1+ in order to permit the use of an external audio Digital-to-Analog Converter (DAC).

NOT INCLUDED

No power supply included - Consider an ODROID 5VDC/2A power supply or an ODROID Smart Power supply, both available on this site
No microSD or eMMC card included - eMMC memory is much faster than microSD memory
No case included
No HDMI cable included - needed to connect to a display device

RECOMMENDED ACCESSORIES
