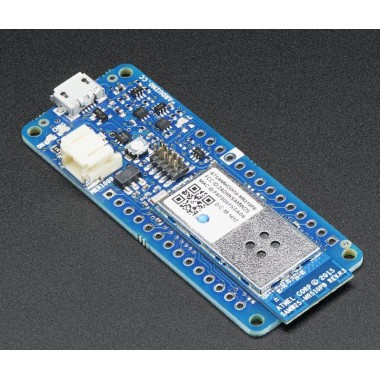

Genuino MKR1000
Arduino con WiFi y cargardor de baterías LiPo! Especial para proyectos IoT.
COD: GBX00004
Peso: 0.012 Kg
Disponibilidad: Sin Stock
ARS 74733.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION

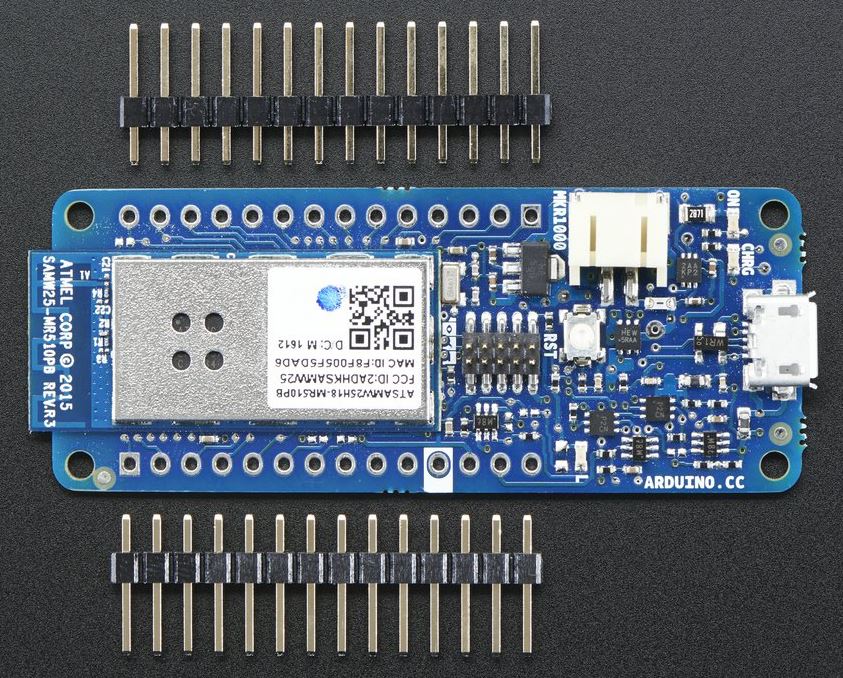

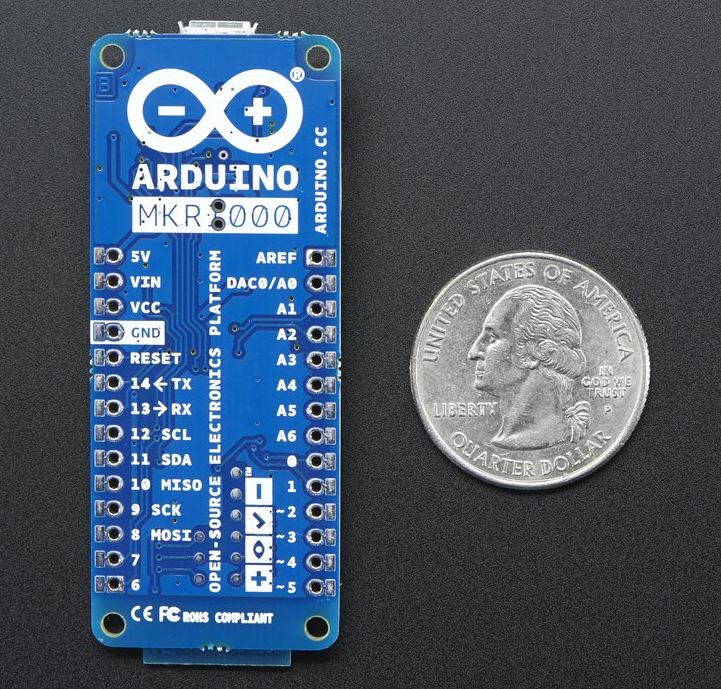

WiFi!? On an Arduino!? You shouldn't have! The MKR1000 from arduino.cc gives the functionality of the Arduino Zero with the added bonus of a WiFi chip. Based around the Atmel ATSAMW25 SoC (which is basically an Arduino Zero + WINC1500 WiFi all-in-one), the MKR1000 is specifically designed for IoT Projects and devices.
Like our Adafruit Feathers, the board includes a LiPo charging connector so you can take your IoT project on the go. This lets the board run on battery power in addition to an external 5V. You can also charge your LiPo battery while running on external power and switching from power source to power source happens automatically.
There's also the usual set of I/O interaces from the Arduino team, including low power Wi-Fi with soft AP SSL support with an ATMEL cryptochip for securing communication and the ease of use of the Arduino IDE so you can develop code and program your board. This is a great choice for IoT battery-powered projects.
Warning: Unlike most Arduino & Genuino boards, the MKR1000 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.
TECHNICAL DETAILS
- Microcontroller: SAMD21 Cortex-M0+ 32bit low power ARM MCU
- Board Power Supply: 5V USB
- Supported Battery: Li-Po single cell, 3.7V, 700mAh+
- Digital I/O Pins: 8
- Circuit Operating Voltage: 3.3V
- PWM Pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 or 18, A4 or 19)
- UART: 1
- SPI: 1
- I2C: 1
- Analog Input Pins: 7 (ADC 8/10/12 bit)
- Analog Output Pins 1 (DAC 10 bit)
- External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 - or 16-, A2- or 17)
- DC Current per I/O Pin: 7 mA
- Flash Memory: 256 KB
- SRAM: 32 KB
- EEPROM: No
- Clock: 32.768 kHz (RTC), 48 MHZ
- Full speed USB Device and embedded host
Product Dimensions: 65.0mm x 25.0mm x 6.0mm / 2.6" x 1.0" x 0.2"
mkr1000-schematic.pdf (43 Kb)
