LoPy

LoPy

Módulo Lopy v1.0 que integra red Lora, WiFi y Bluetooth, y con un micro capaz de correr MicroPython.

COD: PY00002

Peso: 0.007 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 116000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

The LoPy is a compact triple network MicroPython enabled development board (LoRa, Wifi, Bluetooth). It’s the perfect enterprise grade IoT platform for your connected Things. With the latest Espressif ESP32 chipset the LoPy offers a perfect combination of power, friendliness and flexibility. Create and connect you things everywhere. Fast.

The LoPy can act as both a LoRa Nano Gateway and a multi-bearer (LoRa, WiFi and BLE) development platform suitable for all LoRa networks around the globe. It is programmable with MicroPython and the Pymakr plugin IDE for fast IoT application development, easy programming in-field and extra resilience with network failover. The best blend of speed to deployment and access to new LPWAN networks rolling out across Europe, USA, Africa and India. The LoPy is CE, FCC approved and is LoRaWAN certified.

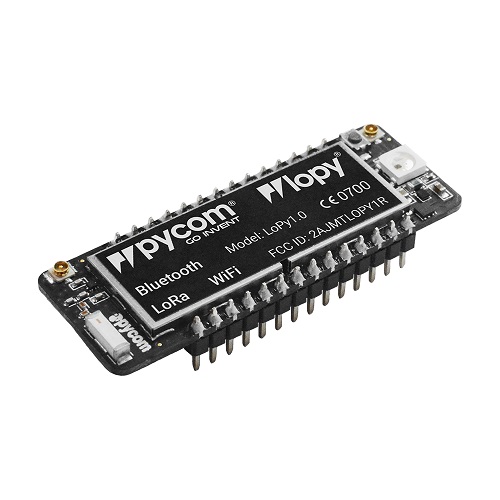

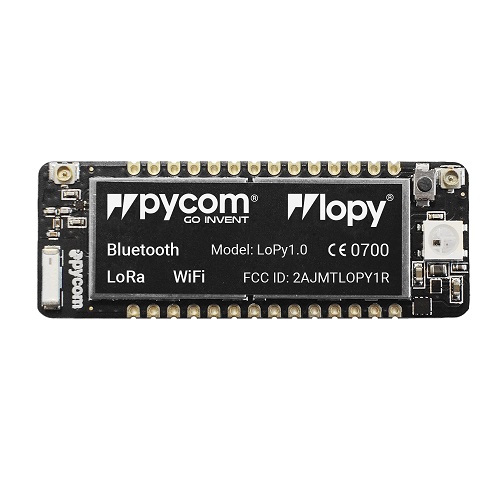

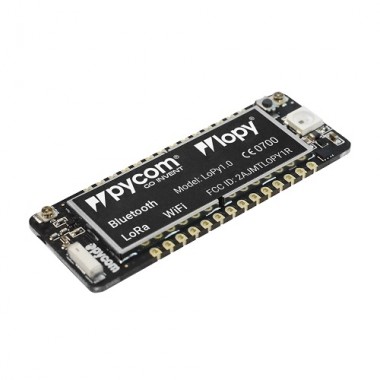

The board ships with or without male headers mounted as seen on the pictures.

NOTE: Using the LoRa radio without the external antenna can lead to damage of the device and is therefore not recommended.

If you are purchasing the LoPy and wish to connect via USB to your computer, you will also need to purchase either the Expansion Board 2.0Pysense or Pytrack.



LoPy Features:

– Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi Range
– Can also double up as Nano LoRa gateway
– MicroPython enabled
– Fits in a standard breadboard (with headers)
– Ultra-low power usage: a fraction compared to other connected micro controllers

Processing:

– Espressif ESP32 chipset
– Dual processor + WiFi radio System on chip
– Network processor handles the WiFi connectivity and the IPv6 stack
– Main processor is entirely free to run the user application
– An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA

Operating Frequencies:

– 868 MHz (Europe) at +14dBm maximum
– 915 MHz (North and South America, Australia and New Zealand) at +20dBm maximum

Range Specification:

– Node range: Up to 40km
– Nano-gateway: Up to 22km
– Nano-gateway capacity: Up to 100 nodes

Interfaces:

– 2 x UART, 2 x SPI, I2C, I2S, micro SD card
– Analog channels: 8×12 bit ADCs
– Timers: 4×16 bit with PWM and input capture
– DMA on all peripherals
– GPIO: Up to 24

Security & Certifications:

– SSL/TLS support
– WPA Enterprise security
– FCC – 2AJMTLOPY1R
– CE 0700

Memory:

– RAM: 512KB
– External flash: 4MB
– Hardware floating point acceleration
– Python multi-threading

Hash / encryption:

SHA, MD5, DES, AES

WiFi:

802.1b/g/n 16mbps

Bluetooth:

Low energy and classic

RTC:

Running at 32KHz

Power:

– Input: 3.3V – 5.5V
– 3v3 output capable of sourcing up to 400mA
– WiFi: 12mA in active mode, 5uA in standby
– LoRa: 15mA in active mode, 1-uA in standby

LoRa Specification:

– Semtech LoRa transceiver SX1272
– LoRaWAN stack
– Class A and C devices



Info and links:

https://docs.pycom.io/

Size:

55mm x 20mm x 3.5mm (Without Headers)

Weight:

– 7g
– 31g (Packaged)
