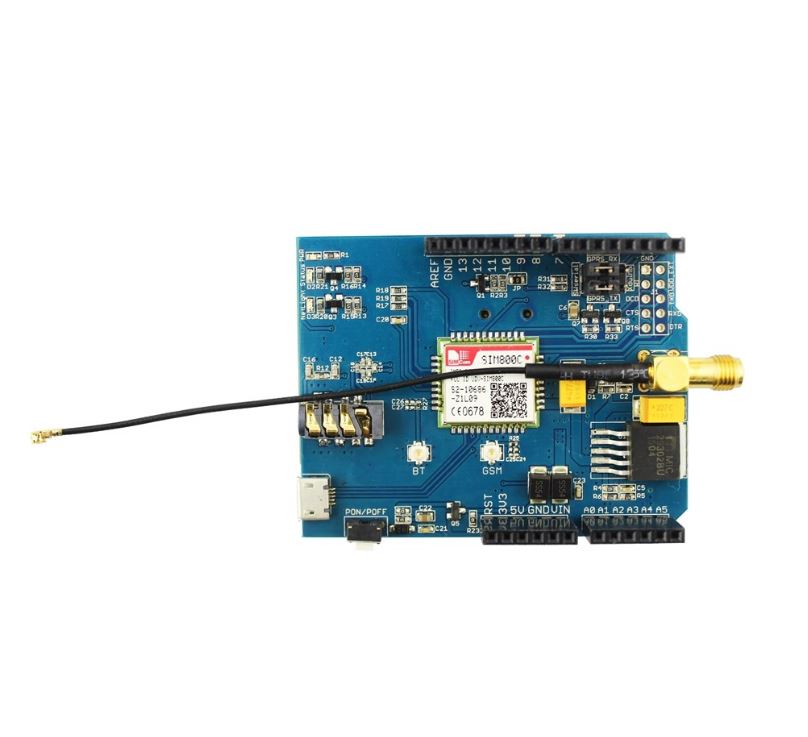

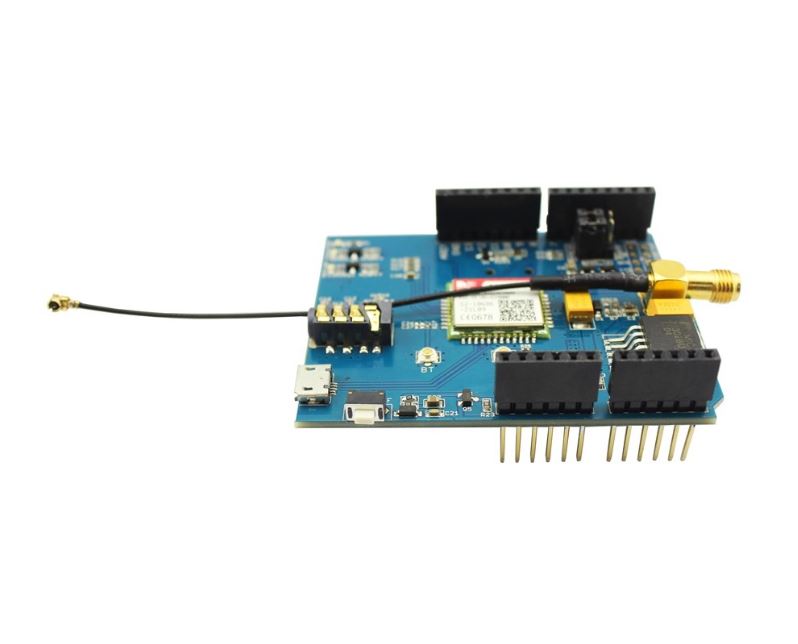

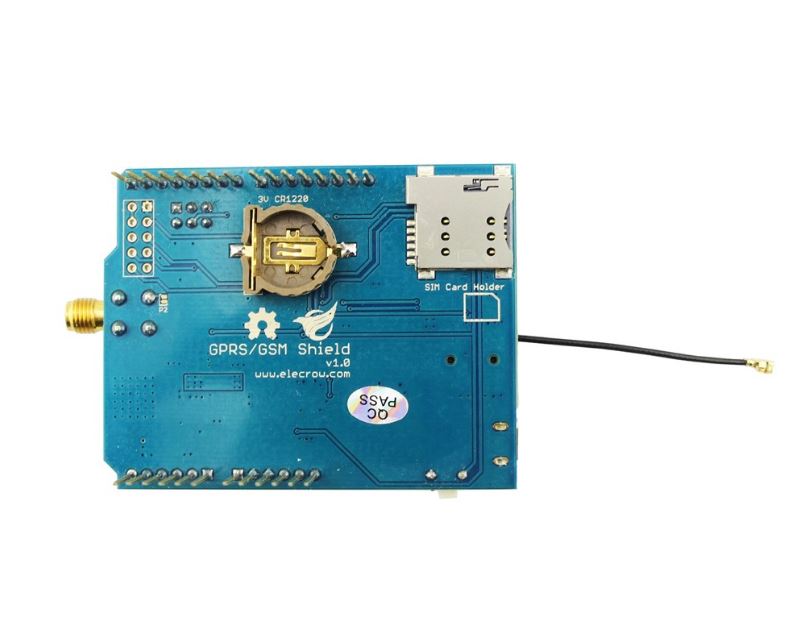

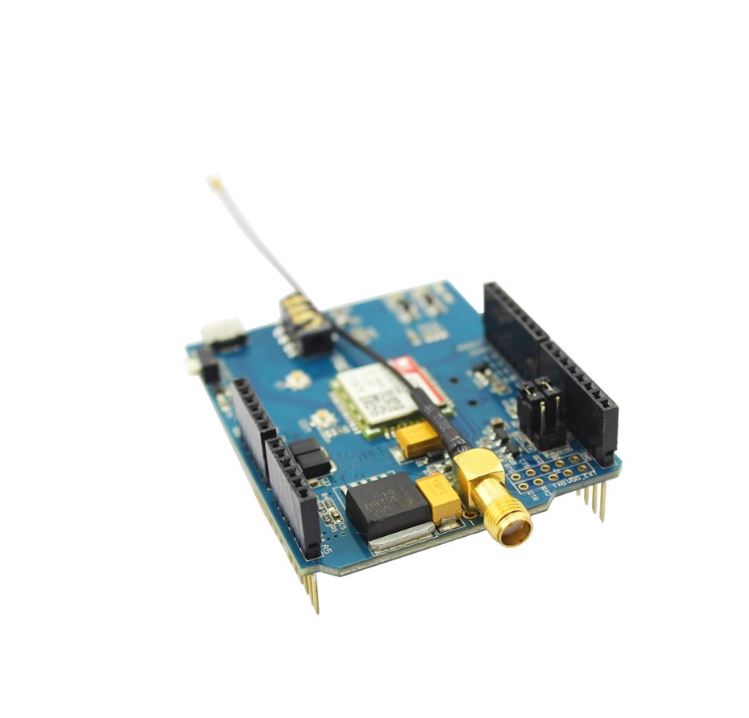

SIM800C GPRS/GSM Shield for Arduino
Este Shield te permite recibir y enviar datos desde una ubicación remota gracias a la red GPRS/GSM. Basado en el chip SIM800C.
COD: EACS38658S
Peso: 0.039 Kg
Disponibilidad: Sin Stock
ARS 151461.00
El producto no está disponible para la venta en este momento
Características
The GPRS/GSM Shield provides you a way to use the GSM phone network to receive data from a remote location, and it is compatible with all boards which have the same form factor (and pin out) as a standard Arduino Board. This shield can also be applied to DIY phones for calling, receiving and sending messages, making GPS tracker or other applications like Smart home etc.
SIM800C GPRS/GSM Shield delivers GSM/GPRS850/900/1800/1900MHz signals for Audio, SMS and GPRS Service. Also, it runs at low power consumption of about 0.6mA in sleep mode but acts compliant to GSM phase 2/2+: Class 4 (2 W @850/ 900 MHz), Class 1 (1 W @ 1800/1900MHz) with two-in-one headset jack.
What’s more, to make your project more flexible and efficient,we have prepared two different antennas for you. One is the traditional GPRS antenna which is more sensitive while another one is on-board antenna which is more compact and easy to install.
Features
- Quad-Band 850/ 900/ 1800/ 1900 MHz
- GPRS multi-slot class 10/12
- GPRS mobile station class B
- Compliant to GSM phase 2/2+
- 2-in-1 headset jack
Specifications
- Low power consumption: 0.6mA(sleep mode)
- Supply voltage range : 5 -12V
- Operation temperature: -40°C to +85 °C
- Compliant to GSM phase 2/2+: Class 4 (2 W @850/ 900 MHz), Class 1 (1 W @ 1800/1900MHz)

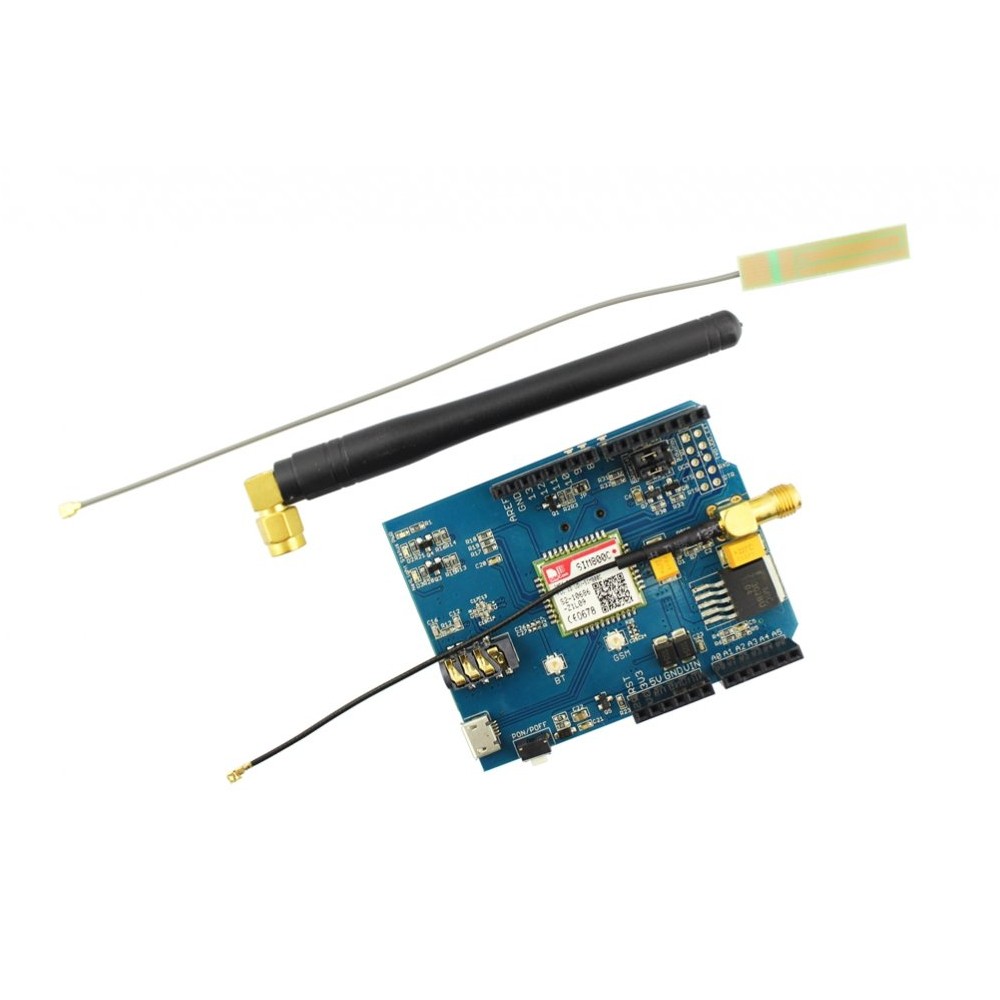

Package list
- GPRS Shield PCBA x 1
- Antenna x 1
- PCB Antenna x 1
Resources
- Detailed Usage In Wiki
- SIM800C Hardware design
- SIM800 AT Command Manual
- SIM800C Eagle files
sim800c_gprs_gsm_shield_v1.0.zip (81 Kb)
sim800_series_at_command_manual_v1_wf.pdf (3146 Kb)
