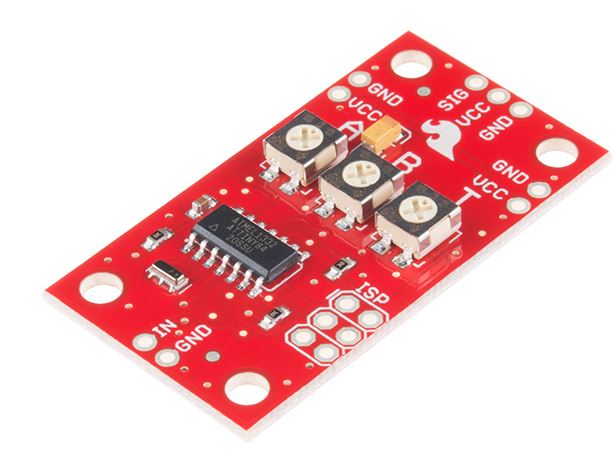

SparkFun Servo Trigger - Continuous Rotation

Principal

Placa de control para servos de rotación continua que permite, a través de 3 potenciometros, configurar la posición inicial, la posición final y el tiempo de transición entre ambas posiciones.

COD: SFWIG13872

Peso: 0.007 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 28143.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description: The SparkFun Continuous Rotation (CR) Servo Trigger is a small robotics board that simplifies the control of hobby RC servo motors. When an external switch or logic signal changes state, the CR Servo Trigger is able to tell an attached servo motor to move from position A to position B. To use the CR Servo Trigger, you simply connect a hobby servo and a switch, then use the on-board potentiometers to adjust the start/stop positions and the transition time. You can use a hobby servo in your projects without having to do any programming!

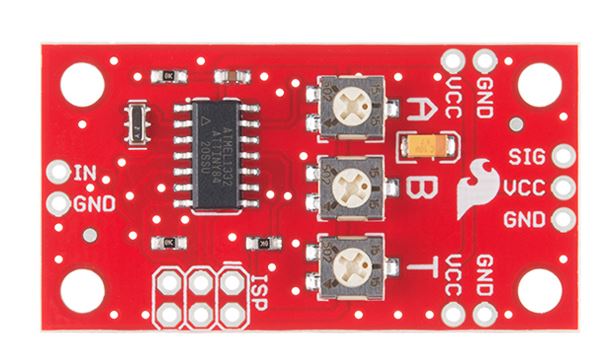

The heart of the CR Servo Trigger is an Atmel ATtiny84 microcontroller, running a small program that implements the servo control features designed for continuous rotation servos. On board each of these CR Servo Triggers you will find three potentiometers: “A” sets the position the servo sits in while the switch is open, “B” sets the position the servo moves to when the switch is closed, and “T” sets the time it takes to get from A to B and back.

Compared with a servo motor, the CR Servo Trigger board draws very little current, roughly 5mA at 5V. Be sure to note that if you’re using the CR Servo Trigger to control your motor, the absolute maximum supply voltage that should be applied is 5.5 VDC. Additionally, the SparkFun CR Servo Trigger is designed to make it easy to daisy chain boards – you can simply connect the VCC and GND pads on adjacent boards to each other.

Features:

  • Recommended Voltage: 5VDC
  • Max Voltage: 5.5VDC
  • Current Draw: 5mA
  • Control Continuous Rotation Servos
  • Three Control Settings
    • A - sets the position the servo sits in while the switch is open
    • B - sets the position the servo moves to when the switch is closed
    • C - sets the time it takes to get from A to B and back
  • Easy Control with Potentiometers

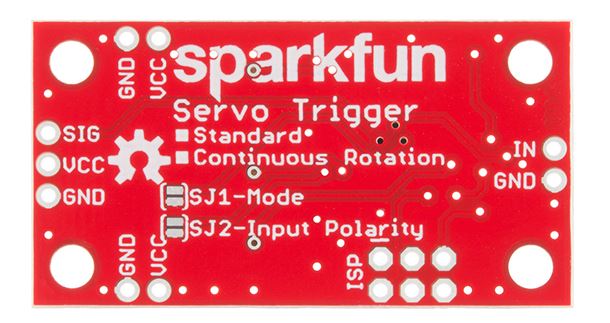

  • Configurable Input Polarity
  • Configurable Response Mode
  • Compatible with Analog Servos
  • ISP Header Pins Available for Reprogram
