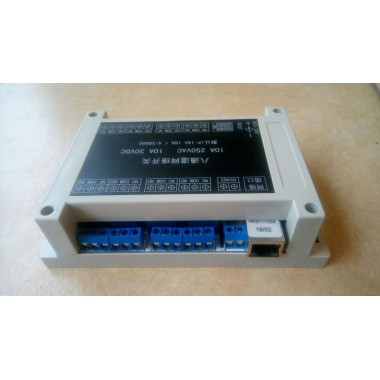

8-way network relay module
Modulo de reles con conexión Ethernet, con gabinete.
COD: FUT30602
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 57158.00
El producto no está disponible para la venta en este momento
Características
Specification
8 -way network relay module
Technical parameters:
1. PCB size: long (122.5 mm) wide (86.5 mm) high (12 mm)
single weight: 500
2. working power supply: 7-30 VDC
3. communication, network (TCP)
4. the control channel: 8 road (can control eight equipment)
5. trigger mode: computer command control
6. trigger signal: low level trigger
7. the maximum load: every 30 VDC / 250 vac 10 a
8. the control mode: TCP network connection, the connection need to input the IP and port, after the right can be normal use
9. operation mode: computer instruction control (TCP protocol control)
PCB size: 132 (long) x72 (wide) x40 (high) mm;
Service life: p 10 million times;
