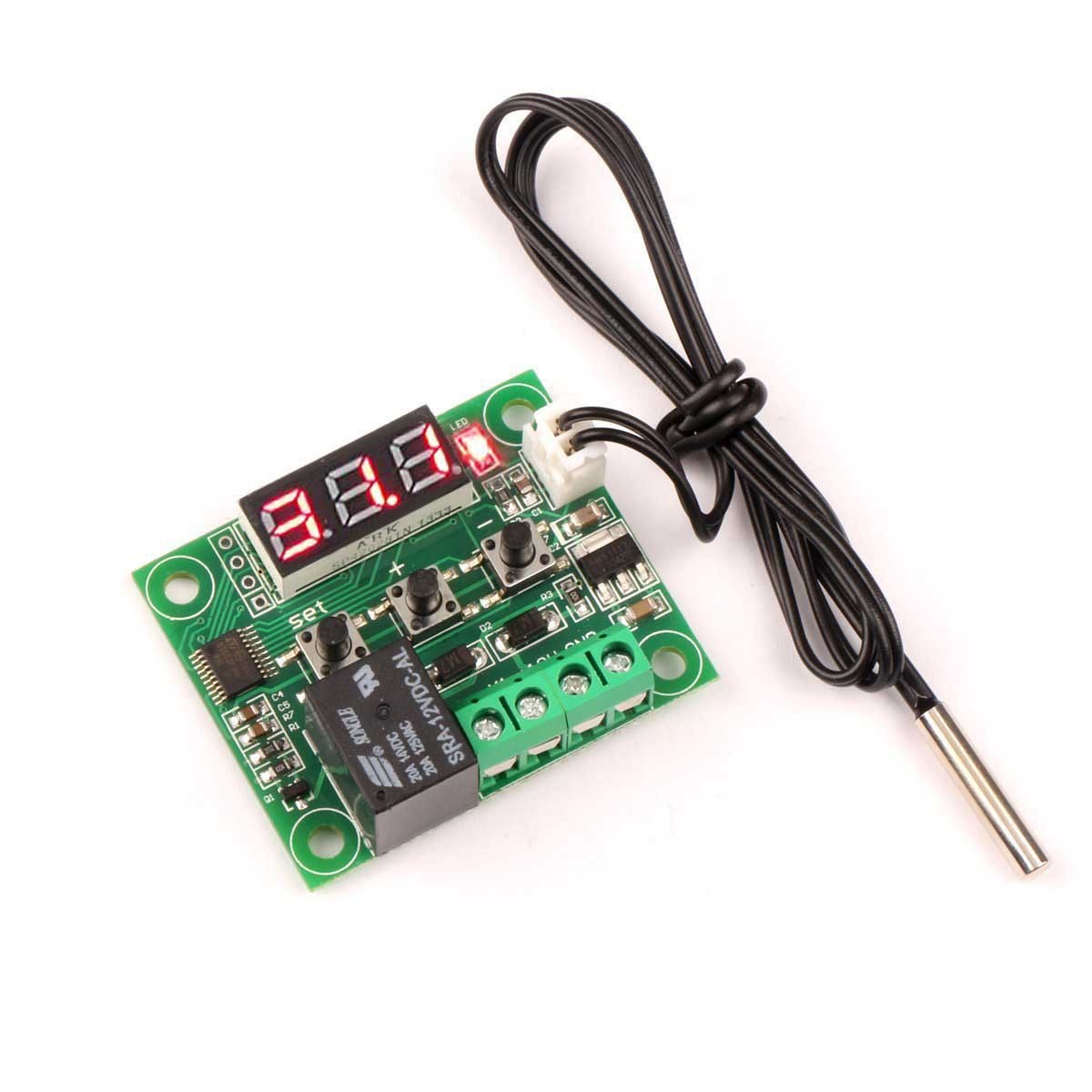

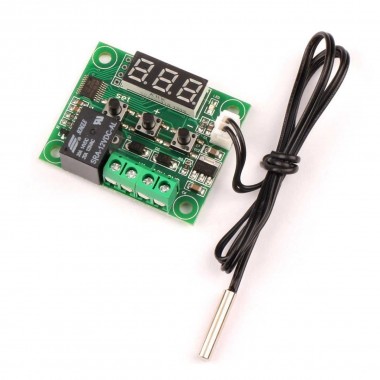

XH-W1209 Digital Thermostat
Termostato digital programable, con salida relé.
COD: FUT3065-2
Peso: 0.023 Kg
Disponibilidad: En Stock
ARS 7136.00
El producto no está disponible para la venta en este momento
Características

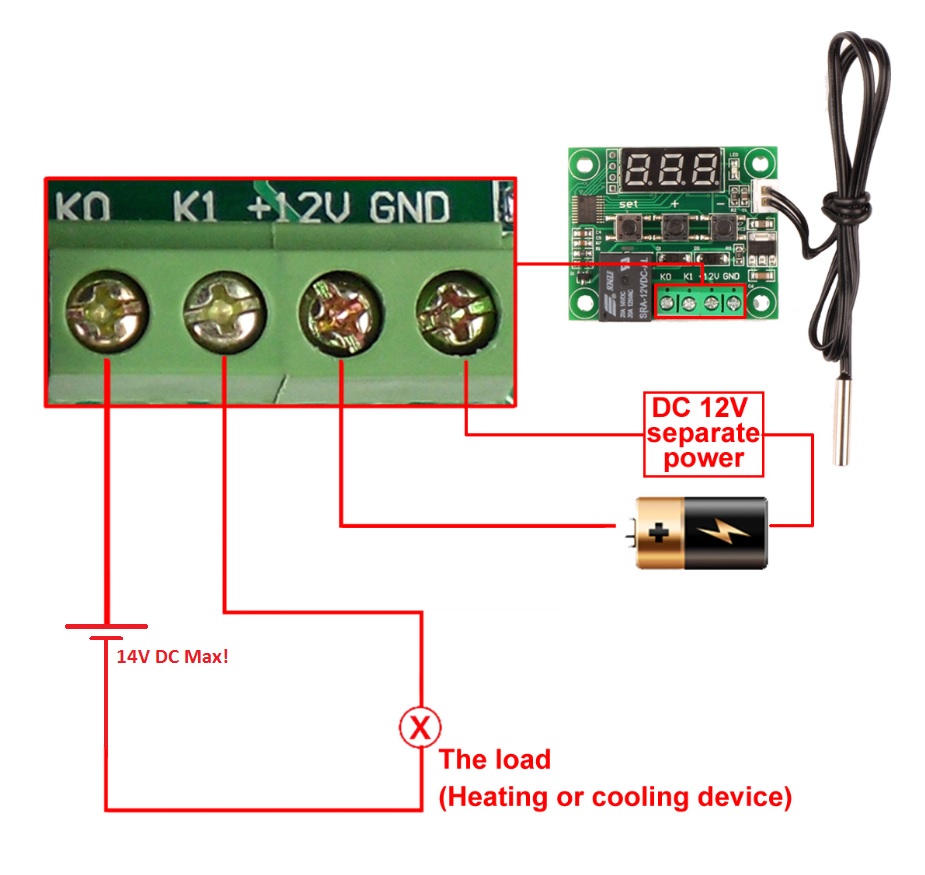

ATENCIÓN: No utilizar mas de 14V en el relé!
Control: - 50 ~ 110 ° C;
Resolution: 9.9 ~ 99.9 0.1 ° C, the other 1 ° C temperature period;
Temperature measuring accuracy: 0.1 ° C;
Control precision: 0.1 ° C;
Back to the bad accuracy: 0.1 ° C;
Refresh rate: 0.5 S;
High temperature protection: 0-110 ° C;
The input power supply: DC 12 v.
Measuring input: NTC (0.5% and 10 k) waterproof type sensor;
Input range: 1 road 10 a relay;
Environmental requirements: - 10 ~ 60 ° C, humidity 20% to 85%.
Size: 48 * 40 mm;
The machine power consumption: static current: 35 ma and current or less: 65 ma or less;
Display type: 0.28 inches Three digital tube
