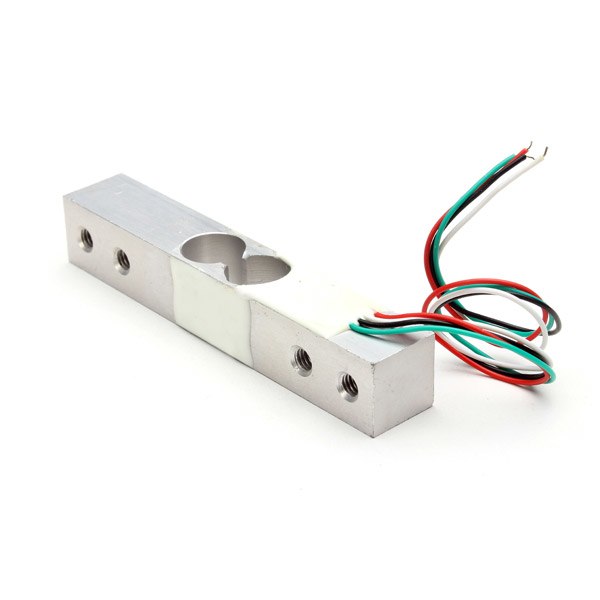

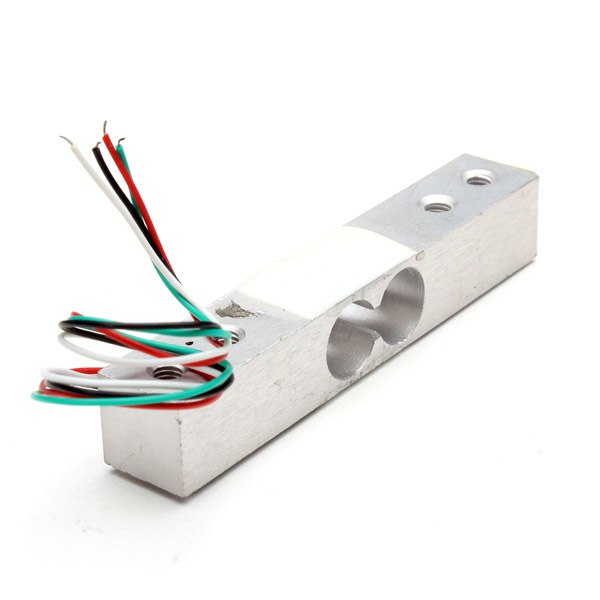

Kitchen scales weighing sensor 1kg

Kitchen scales weighing sensor 1kg

Celda de carga, con rango de 0 a 1kg.

COD: FUT3479

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 10623.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Kitchen scales weighing sensors
Four-lead, easy to use, plus 5-10V drive voltage, the force changes to a voltage signal output directly.

Dimensions: 12.7mm * 12.7mm * 75mm
One end of the sensor through the screw hole is fixed, and the other end left floating state, applying a gravity direction according to label directions. Particular attention must not directly pressing the white plastic cover part, so as not to disrupt the sensor.
