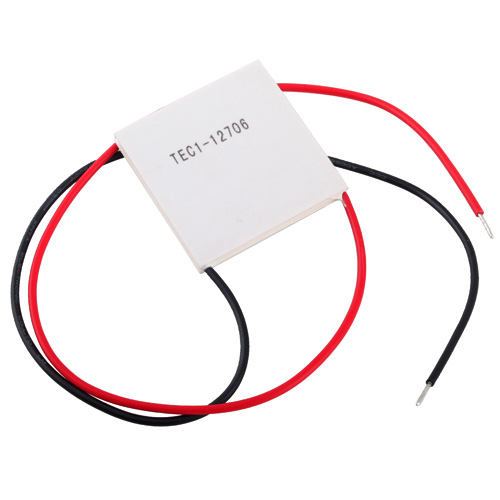

Semiconductor refrigeration TEC1-12706
Enfriador termoeléctrico - Celda Peltier
COD: FUT3550
Peso: 0.025 Kg
Disponibilidad: Sin Stock
ARS 7026.00
El producto no está disponible para la venta en este momento
Características
Chip: TEC1-12706
The external size: 40 * 40 * 3.75 mm
Internal resistance value: 2.1 ~ 2.4 Ω (23 + / - 1 ?, environment temperature 1 KHZ Ac test)
The largest temperature difference: delta Tmax (Qc = 0) more than 67 ºC.
Working current: Imax = 4.3-4.6 A rated (12 v)
Rated voltage: 12 v starting current (Vmax: 15 v 5.8 A)
Cooling power: Qcmax 60-72 w
Working conditions: temperature range and ºC ~ 80 ºC (high environmental temperature drop directly affect the cooling efficiency).
datasheet_pt.pdf (119 Kb)
