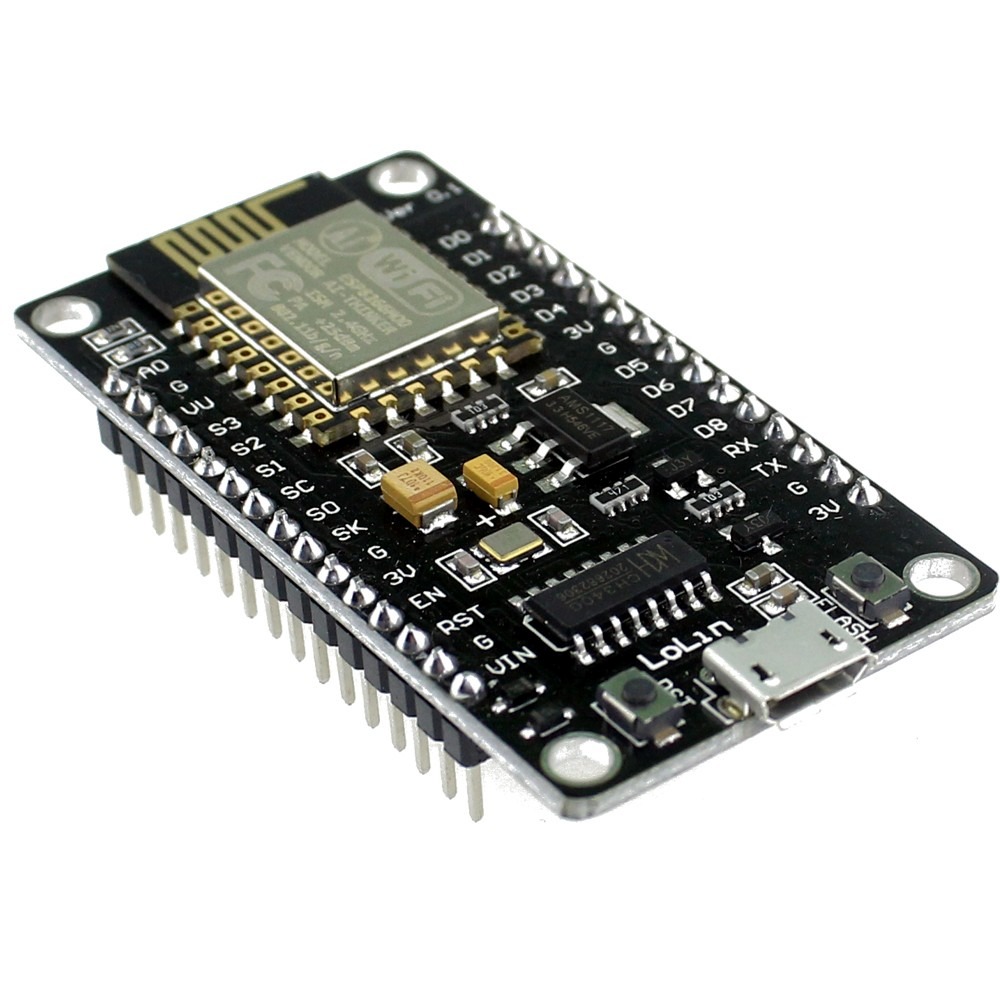

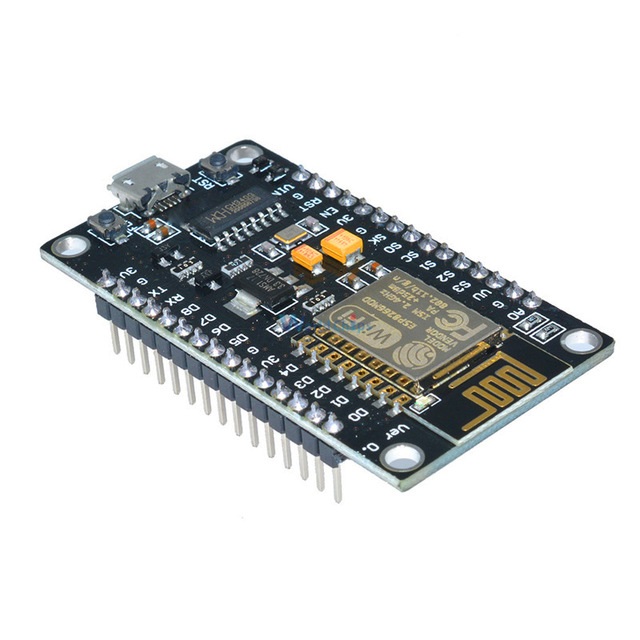

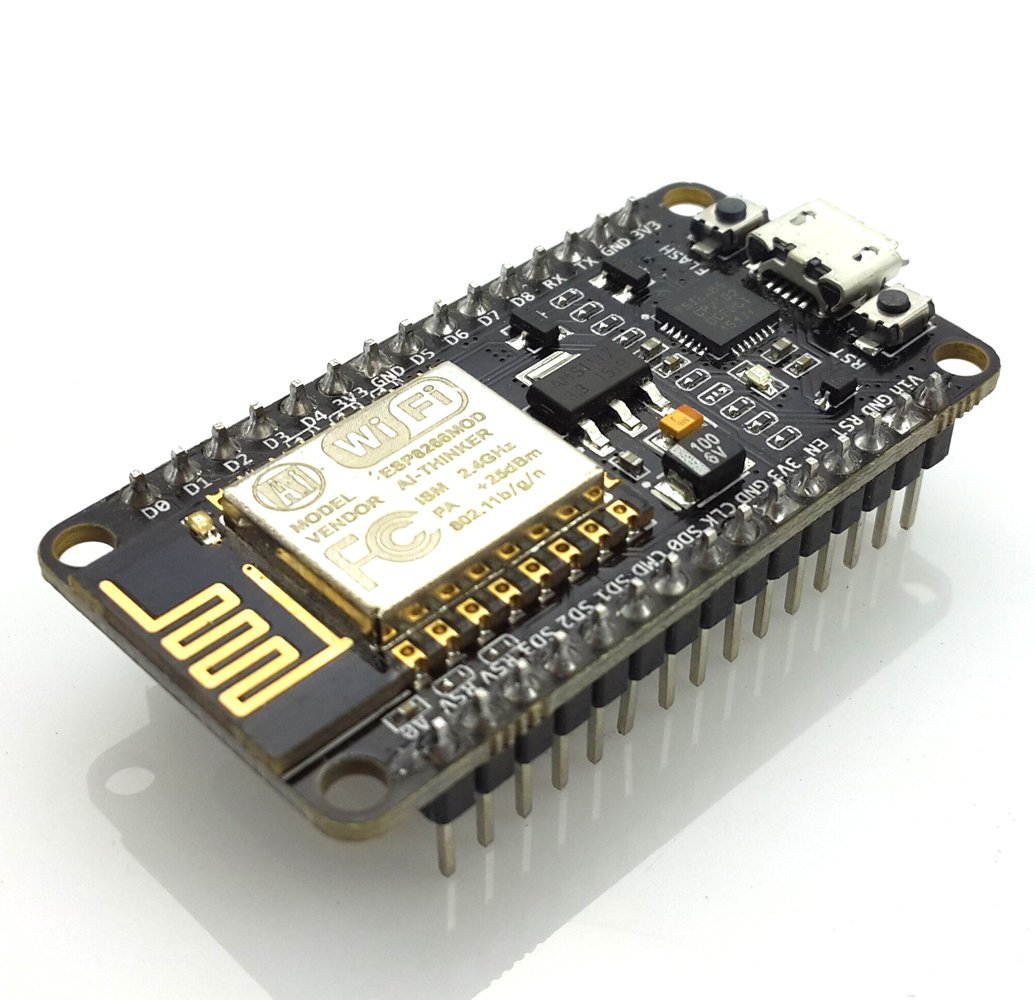

Wireless module CH340 NodeMcu V3 Lua WIFI

Wireless module CH340 NodeMcu V3 Lua WIFI

Placa de desarrollo NodeMcu Lua ESP-12E, basado en el popular ESP8266, ideal para proyectos de IoT (Internet of Things). La interfaz USB está implementada con el CH340.


Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 14154.00


El producto no está disponible para la venta en este momento


Doit NodeMcu Lua ESP8266 ESP-12E WIFI Development Board


Wireless 802.11 b / g / n standard
Support STA / AP / STA + AP three operating modes
Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 channel ADC
Power input: 4.5V ~ 9V (10VMAX), USB-powered
Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
Transfer rate: 110-460800bps
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
Working temperature: -40 ºC ~ +125 ºC

Package included:

1 x NodeMcu Lua ESP-12E WIFI Development Board
