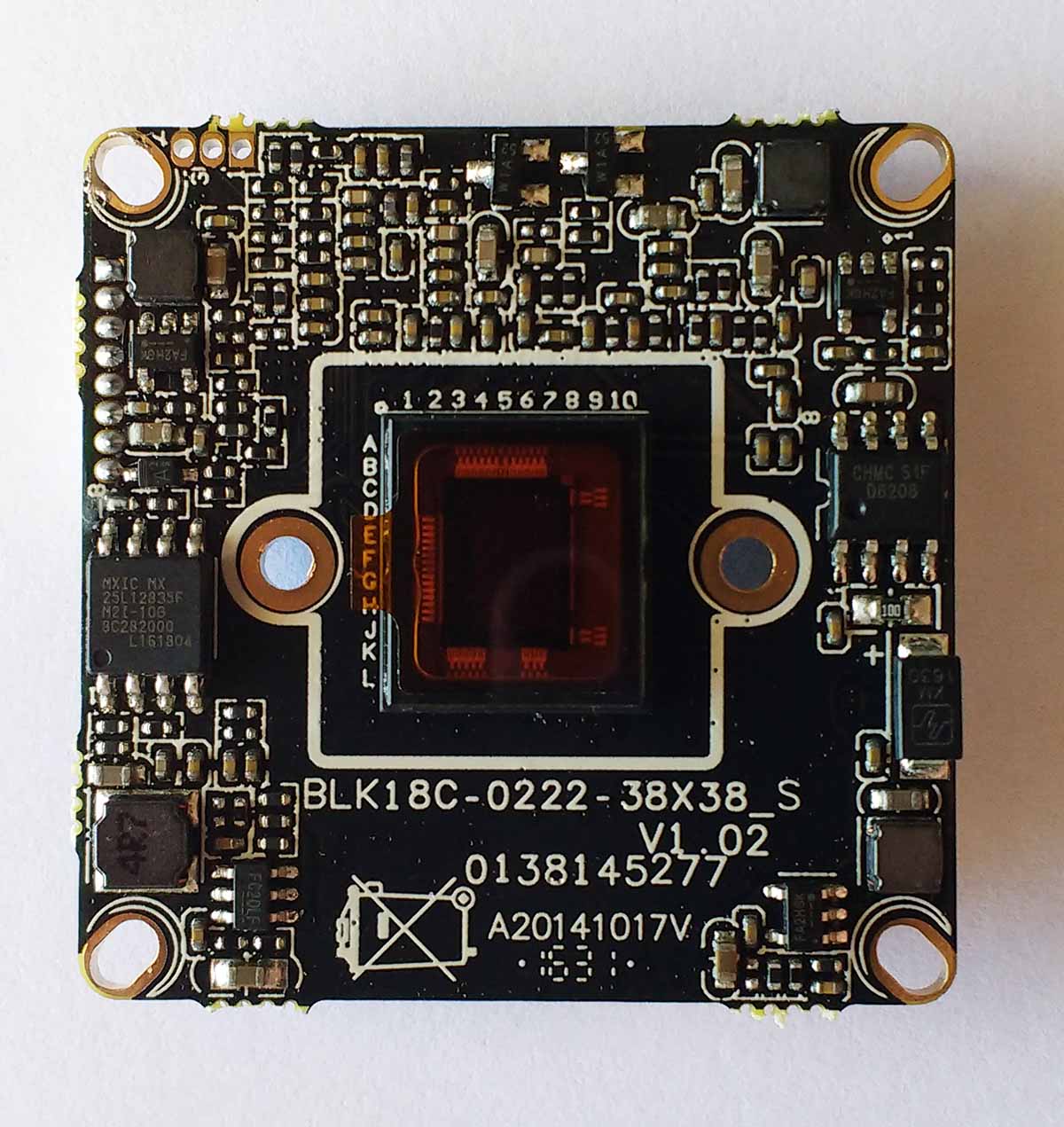

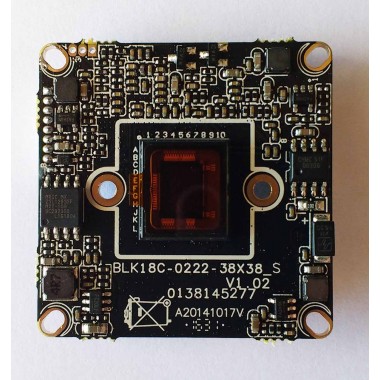

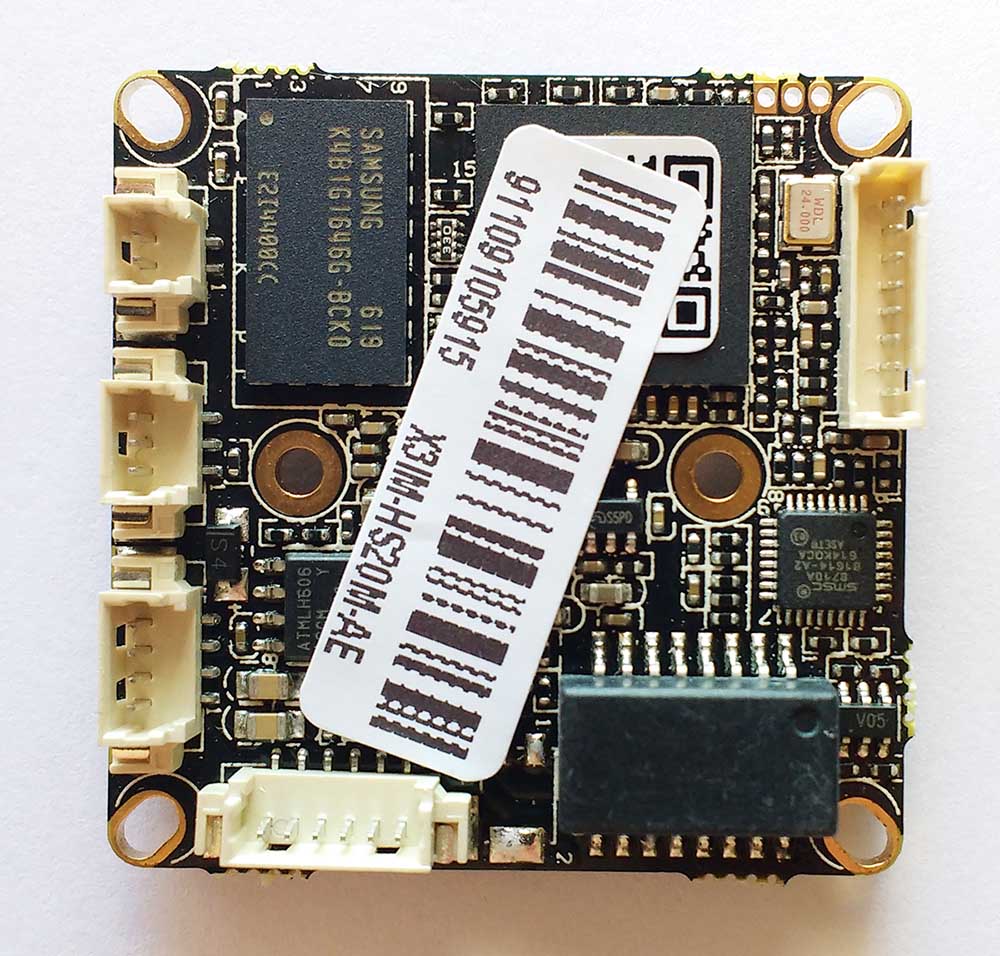

2MP IP camera module X3IM-H200M-AE
Cámara IP CMOS de 2 megapixels con salida FullHD. Compatible ONVIF y compresión H.264. Incluye CD con software de configuración. Soporta WiFi (no incluído)
COD: GOX3IMHS20MAE
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 117719.00
El producto no está disponible para la venta en este momento
Características
|
Model |
X3IM-HS20M-AE |
|
System Structure |
Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog; |
|
image sensor |
1/2.9" imx322 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.6Lux@F1.2,black/white:0.08 Lux@F1.2 |
|
Video compression |
H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable; |
|
Image output |
main stream: 1920*1080; 1280*720; sub-stream:704*576; |
|
audio interface |
input,level:2Vp-p,impedance:1kΩ,supportsound pick-up input; |
|
audio compression |
G.711 |
|
network interface |
1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc; |
|
photo resistance |
one photo resistance interface,support photo resistance signal links to IR-CUT |
|
USB |
1*USB, support WIFI/3G |
|
alarm input |
1ch alarm input |
|
alarm output |
no |
|
SD |
no |
|
Features |
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture; united remote client monitoring software; MYEYE; perfect SDK; |
|
ONVIF |
support |
|
mobile monitoring |
support multiple mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android) |
|
Other functions |
DC12V,3W(consumption),38mm*38mm; |

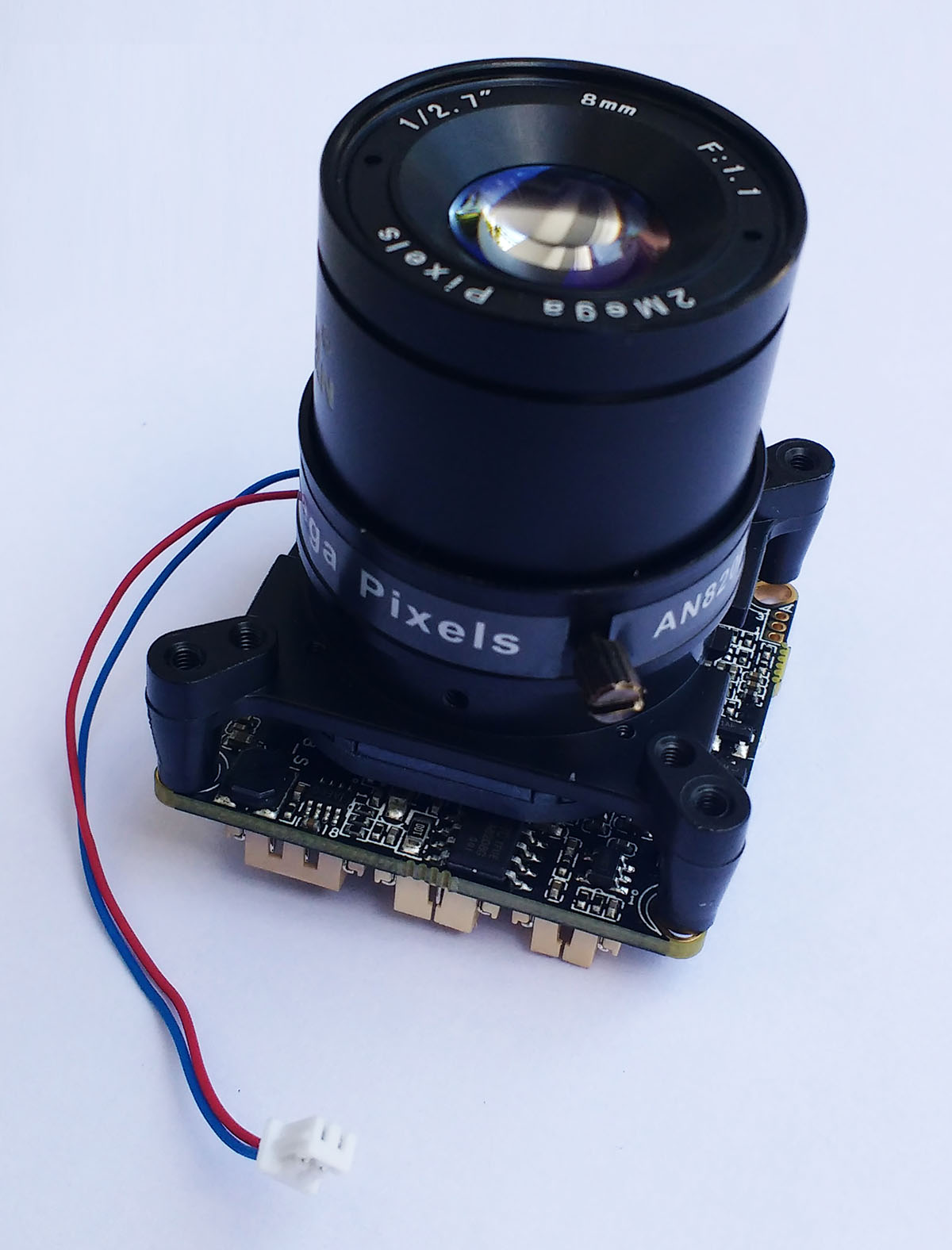

ATENCIÓN: NO INCLUYE LENTE CON MONTAJE, CABLE ETHERNET Y ALIMENTACIÓN (GOGTIMC1)
Soporte de WiFi por medio del módulo GOGTIMW1
Pinout (212 Kb)
