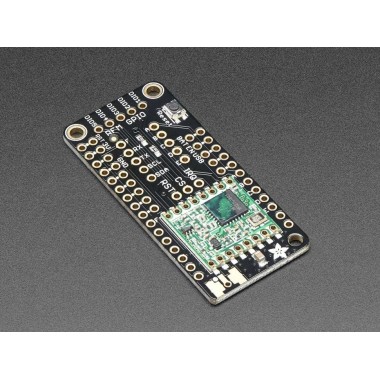

Adafruit LoRa Radio FeatherWing - RFM95W 900 MHz

Adafruit LoRa Radio FeatherWing - RFM95W 900 MHz

Módulo LoRa 868/915MHz apto para trabajar en conjunto con las placas Feather ESP8266, Teensy 3 Feather, Feather 32u4 y Feather M0.

COD: D003231

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 34137.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

Add short-hop wireless to your Feather with these Radio Featherwings. These add-ons for any Feather board will let you integrate packetized radio (with the RFM69 radio) or LoRa radio (with the RFM9x's). These radios are good options for kilometer-range radio, and paired with one of our WiFi, cellular or Bluetooth Feathers, will let you bridge from 868/915 MHz to the Internet or your mobile device.

This is the LoRa 9x @ 900 MHz radio version, which can be used for either 868MHz or 915MHz transmission/reception - the exact radio frequency is determined when you load the software since it can be tuned around dynamically. These are +20dBm LoRa packet radios that have a special radio modulation that is not compatible with the RFM69s but can go much much  farther. They can easily go 2 Km line of sight using simple wire antennas, or up to 20Km with directional antennas and settings tweakings
  • SX127x LoRa® based module with SPI interface
  • Packet radio with ready-to-go Arduino libraries
  • Uses the license-free ISM bands
  • +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)
  • ~300uA during full sleep, ~120mA peak during +20dBm transmit, ~40mA during active radio listening.
  • Our initial tests with default library settings: over 1.2mi/2Km line-of-sight with wire quarter-wave antennas. (With setting tweaking and directional antennas, 20Km is possible).

Currently tested to work with the Feather ESP8266, Teensy 3 Feather, Feather 32u4 andFeather M0 series, some wiring is required to configure the FeatherWing for the chipset you plan to use.

All radios are sold individually and can only talk to radios of the same part number. E.g. RFM69 900 MHz can only talk to RFM69 900 MHz, LoRa 433 MHz can only talk to LoRa 433, etc.

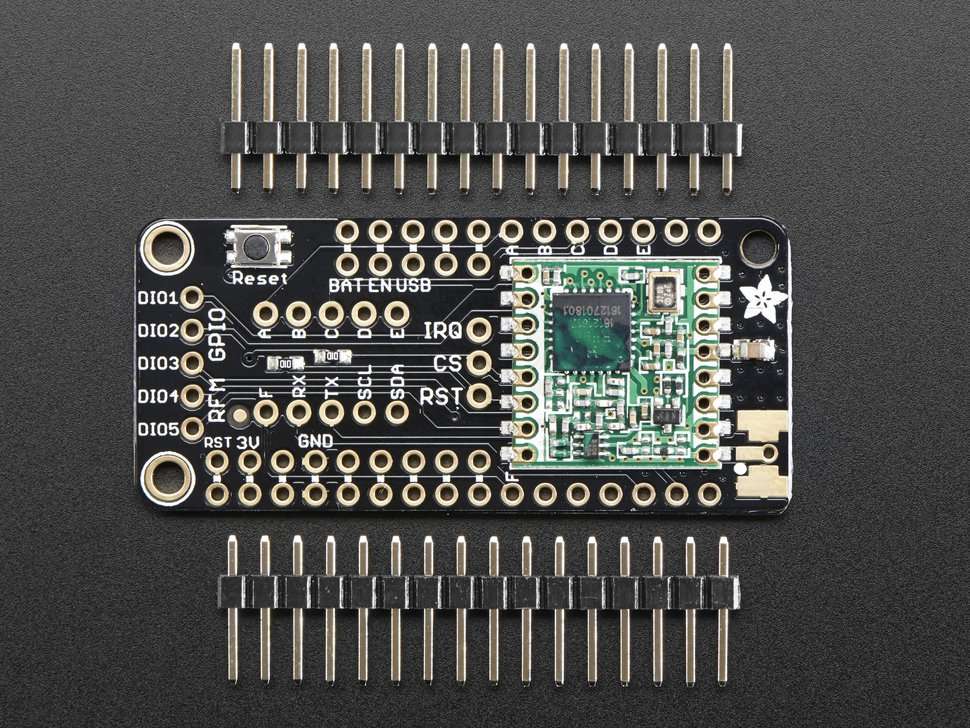

Each radio 'Wing comes with some header. Some soldering is required to attach the header. You will need to cut and solder on a small piece of wire (any solid or stranded core is fine) in order to create your antenna. Optionally you can pick up a uFL or SMA edge-mount connector and attach an external duck.

TECHNICAL DETAILS

Product Dimensions: 51.0mm x 22.8mm x 3.7mm / 2.0" x 0.9" x 0.1"

Product Weight: 4.6g / 0.2oz

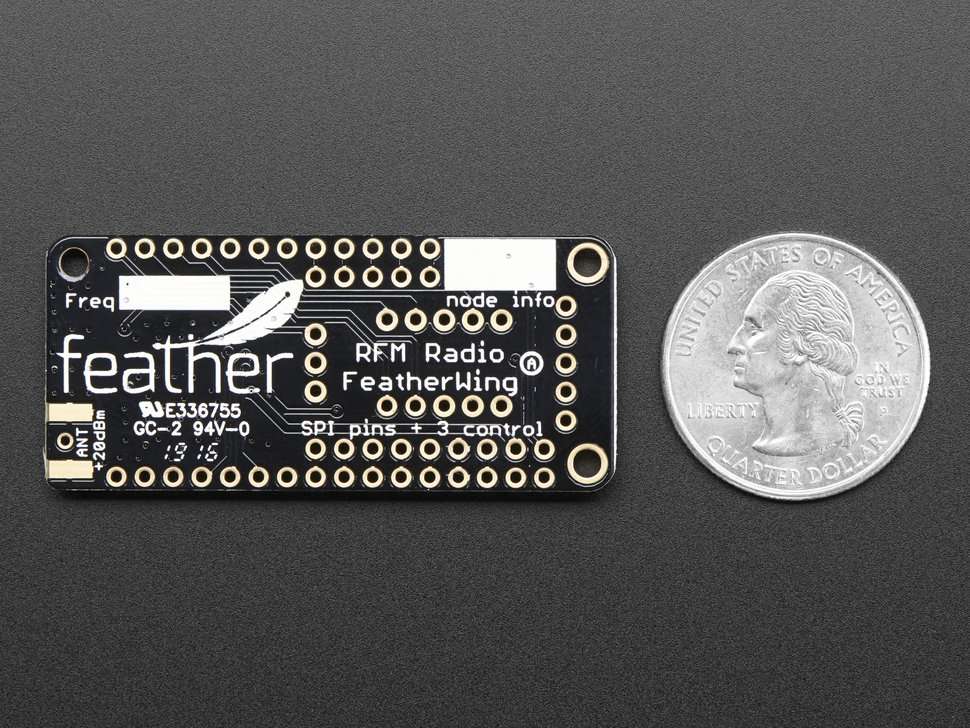

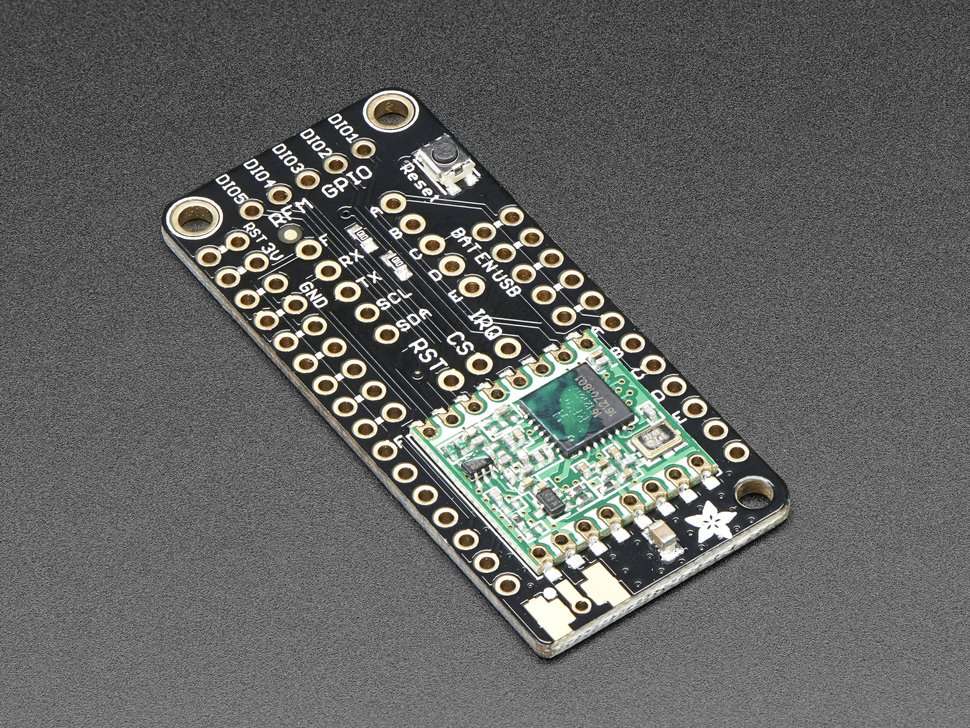

Galería de Imágenes
