B3603 DC-DC Digital Control Step-down Module

Principal

Fuente DC-DC Step-Down con display para ver tensión, corriente y potencia. Posee ademas pulsadores para setear la tensión de salida.

COD: EPCB3603DC

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 40261.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

 The B3603 DC-DC Digital Control Step-down Module is a digital control and digital display step-down module, it has small volume, high power, high efficiency and works steady. It controlled by high speed micro controller, and the output voltage and current can be adjusted accurately. There are also 10 groups of storage space, which be used to store and bring up the parameters at any time. This module is equipped with four 8-segment LED digital tube, which can display voltage, current, power, capacity and other parameters real-time.

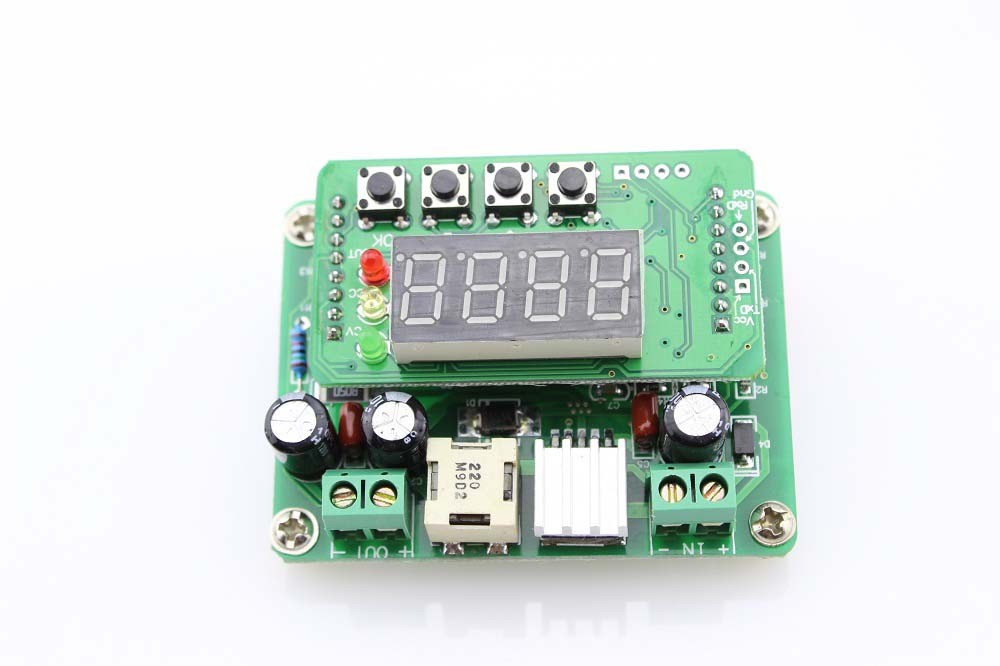

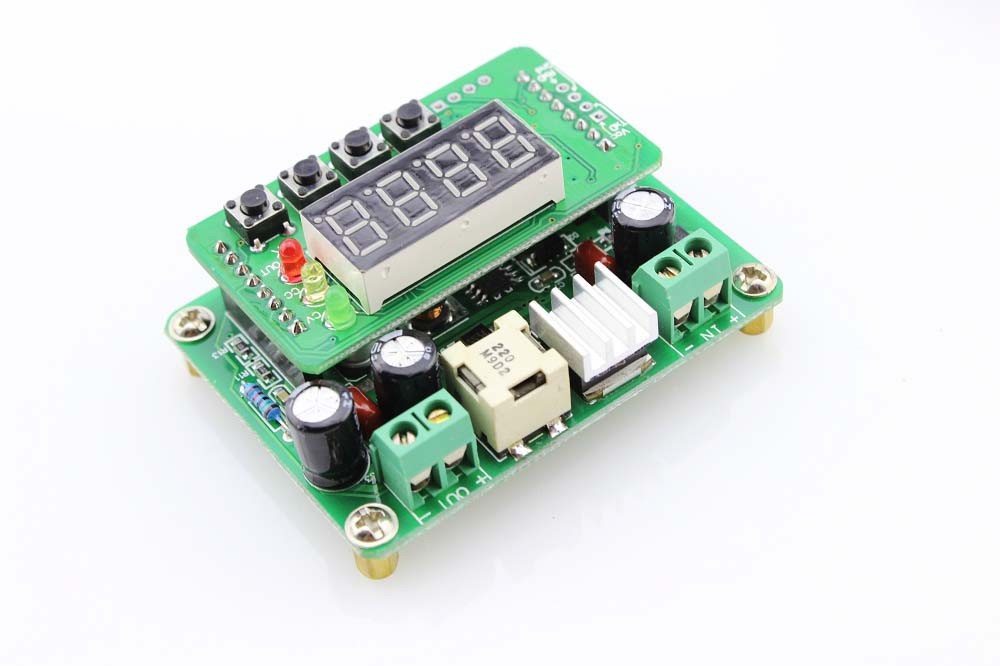

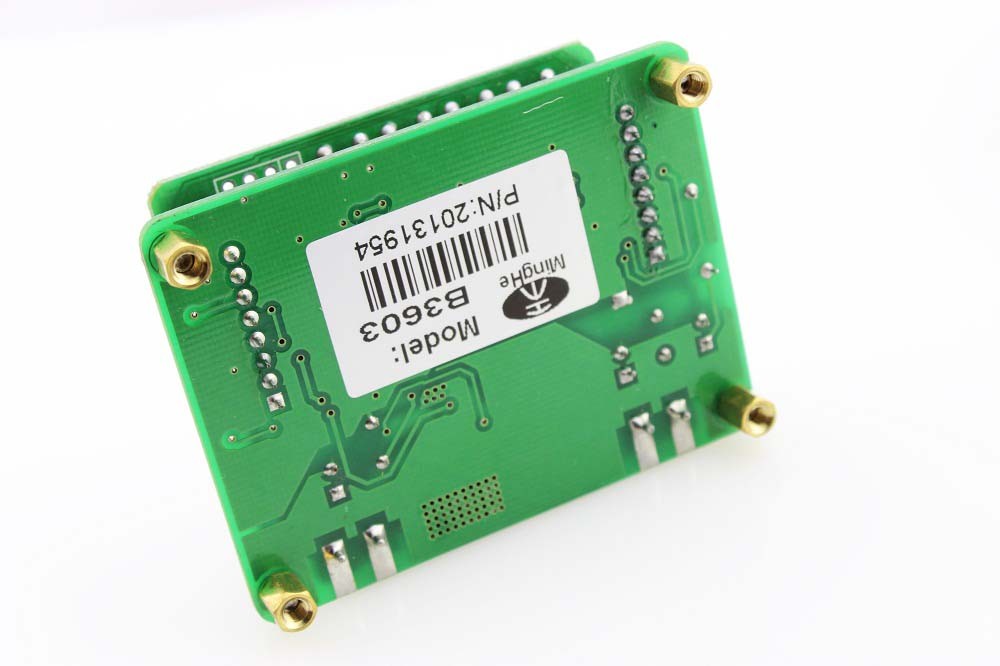

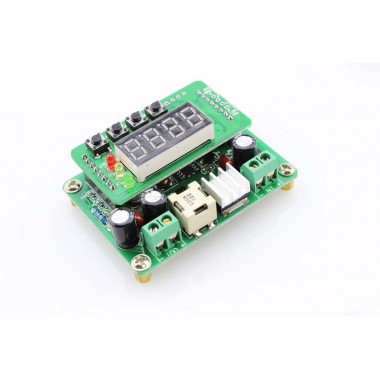

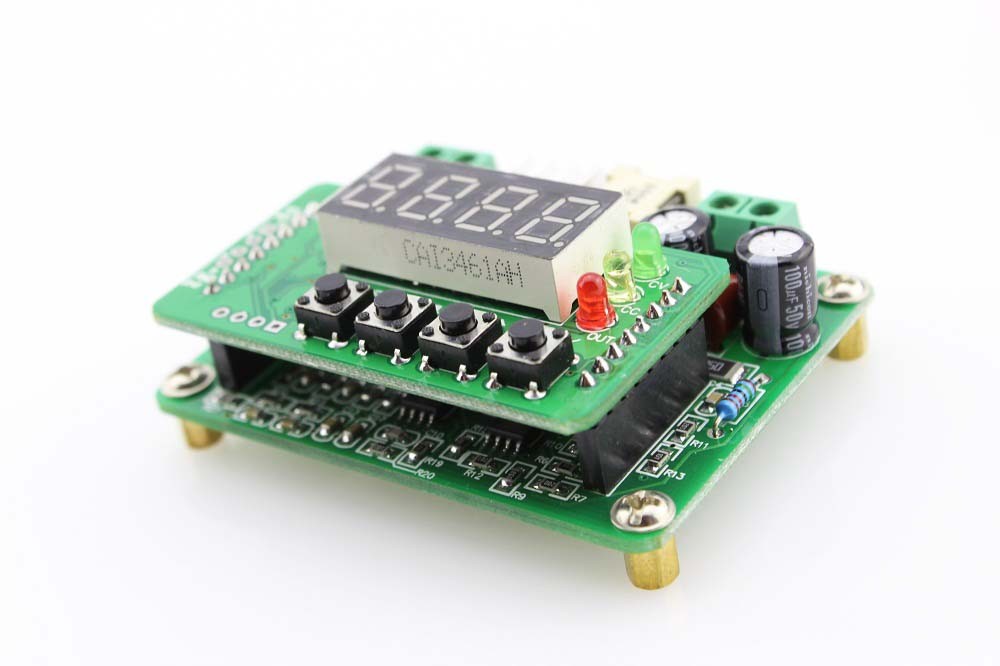

    B3603 DC-DC Digital Control Step-down Module

Features

  • Digital display, convenient and easy to use.
  • Constant voltage and constant current state.
  • OUT,CV and CC indicator light.
  • Adjust output voltage and current value accurately.
  • Automatic/manual switch voltage, current, power, capacity and other parameters display.
  • It can be set whether automatically output or not after electrify.
  • It can be set whether take turns to show voltage, current, power and capacity or not after output.
  • 10 groups of storage location, free storage and bring up.
  • One key to save voltage and current value

Specifications

  • Input voltage: 6V ~ 40V
  • Output voltage: 0 ~ 36V
  • Output current: 0 ~ 3A
  • Voltage regulation / display resolution: 0.01 V
  • Current regulation / display resolution: 0.001 A
  • Power display resolution: 0.001 W
  • Capacity display resolution: 0.001 AH
  • Conversion efficiency: up to 92%
  • Output ripple: < 50 mV
  • Working temperature: - 40~ + 85 degrees
  • Working frequency:150 KHz
  • Short circuit protection:Constant current
  • Input reverse connect protection: No, if necessary please install diode
  • Connection mode: Terminals
