Transistor Array - ULN2803 (3 Pack)

Principal

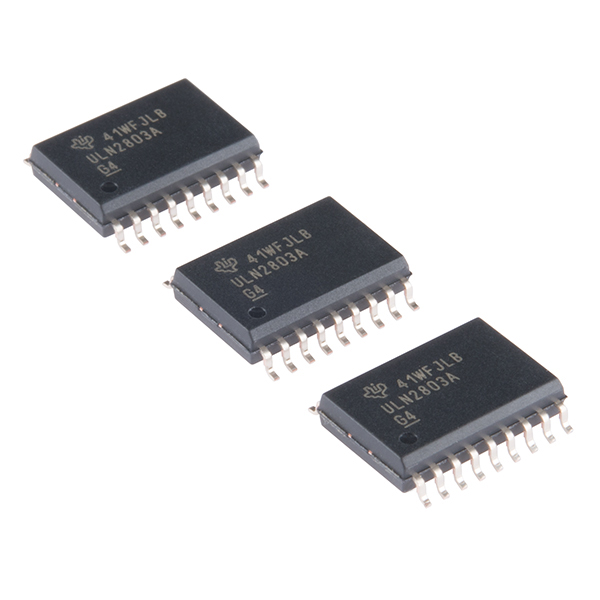

Pack de 3 unidades del popular integrado ULN2803 en versión de montaje superficial (SMD), el cual contiene un arreglo de 8 transistores Darlington NPN de 50V 500mA y diodos de protección. Ideal como driver de relés, LEDs o pequeños motores.

COD: SFCOM13885

Peso: 0.002 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 4437.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

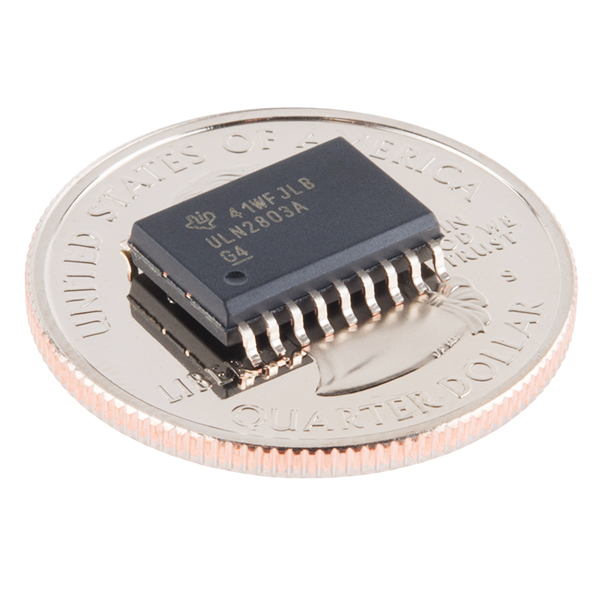

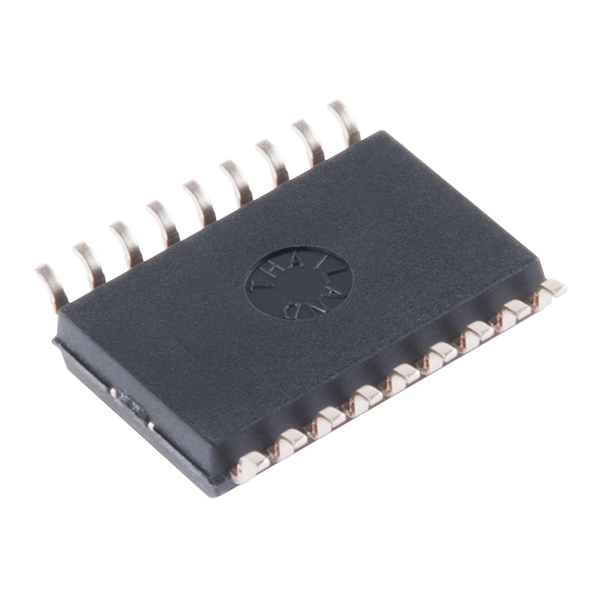

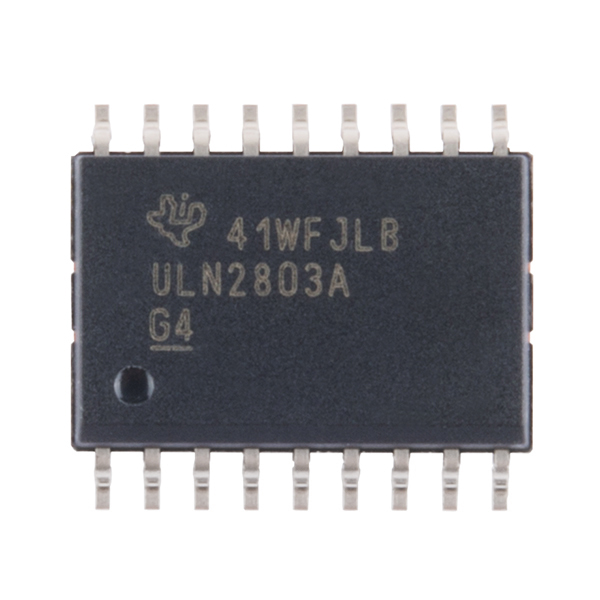

Description: This simple Transistor Array pack contains three SMD ULN2803 ICs from Texas Instruments. Each of these tiny ICs consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching a board’s inductive loads with a collector current of 500mA. Each ULN2803 can absolutely be connected in parallel to achieve higher current capability.

The ULN2803 chips in the Transistor Array are ideal when used in applications like relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. Additionally, each ULN2803 has a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5V CMOS devices.

Features:

  • 500mA-Rated Collector Current
  • High-Voltage Outputs: 50V outputs
  • Output Clamp Diodes
  • Inputs Compatible with Various Types of Logic
  • Relay-Driver Applications
  • Compatible with ULN2800A Series
  • Three Units in Each Order
