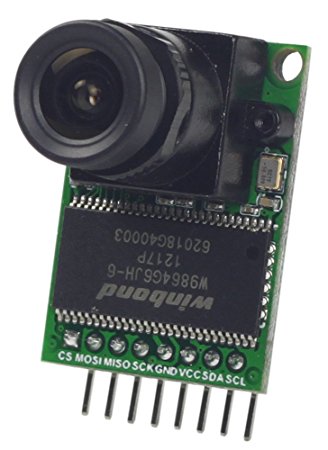

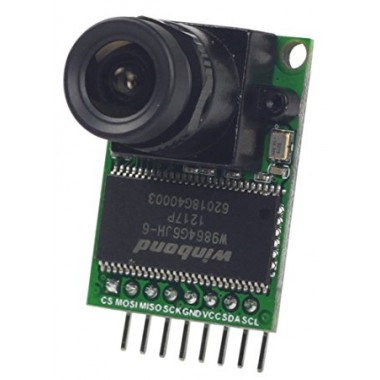

Arducam Mini module Camera Shield w/ 5 MP OV5642
Cámara ArduCAM-M-5MP que integra el sensor de imagen de 5 MP OV5642. Puede ser utilizada en varias plataformas como Arduino, Raspberry Pi, BeagleBone black entre otras mientras tengan interfaces I2C y SPI.
COD: UCB0068
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 105168.00
El producto no está disponible para la venta en este momento
Características
Item Description:
ArduCAM-M-5MP is optimized version of ArduCAM shield Rev.C, and is a high definition 5MP SPI camera, which reduce the complexity of the camera control interface. It integrates 5MP CMOS image sensor OV5642, and provides miniature size, as well as the easy to use hardware interface and open source code library. The ArduCAM mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards. ArduCAM mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.
Application:
- IoT cameras
- Robot cameras
- Wildlife cameras
- Other battery-powered products
- Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
Features:
- 5MP image sensor OV5642
- M12 mount or CS mount lens holder with changeable lens options
- IR sensitive with proper lens combination
- I2C interface for the sensor configuration
- SPI interface for camera commands and data stream
- All IO ports are 5V/3.3V tolerant
- Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
- Well mated with standard Arduino boards
- Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
- Small form of factor
arducam_mini_5mp_camera_shield_hardware_application_note.pdf (205 Kb)
