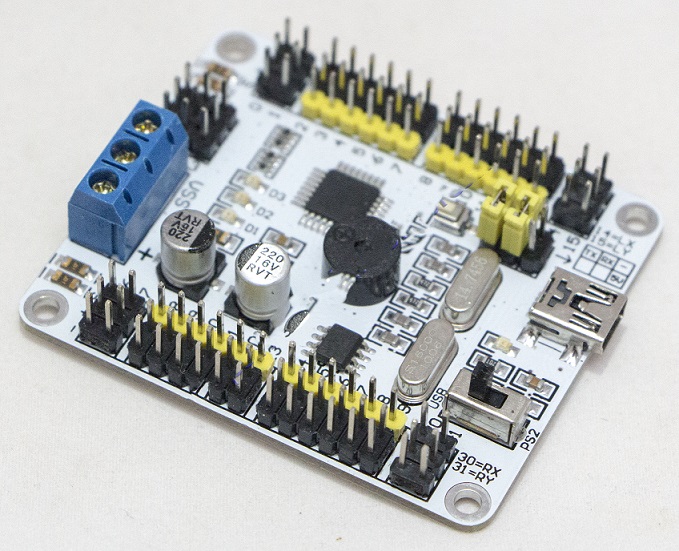

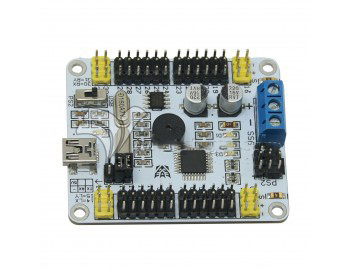

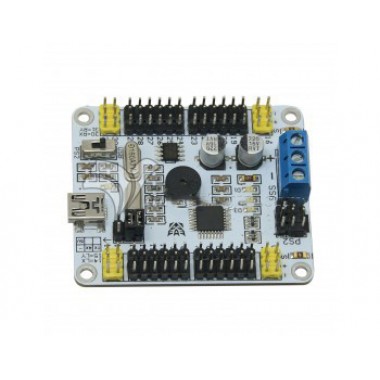

32 channel robot servo control board

32 channel robot servo control board

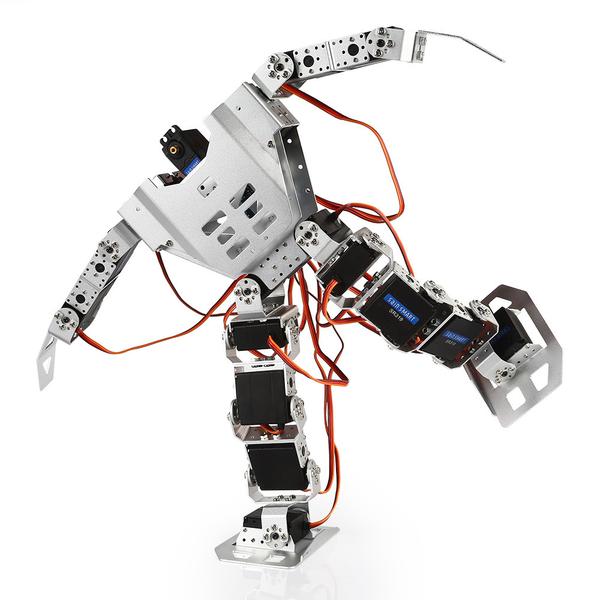

Placa para control de hasta 32 servos. La misma posee 32 canales. Provee interfaz UART, además de poder ser controlada desde la propia pc mediante un cable USB incluido en el producto. Especial para el control de robots bípedos y humanoides.

COD: FUT2007

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 84313.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description:


This is servo controller board with 32 channel can be control up to 32 servo motors at the same time, either by using a software on a PC, or UART communication (TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation. Wireless device compatible, it can also being set by the program we provided

Description of 32 Channel servo controller:

  • Up to 32 servo motors can be controlled at the same time, to send commands to control the Servo. Can also download instructions to the servo motor controller for offline operation.
  • Powerful MCU.
  • High controlling accuracy.
  • Offline operation function.
  • Identify baud rate automatically.
  • Flash memory: onboard 512K ROM (If every command is used to control the 32 motors at the same time, more than 500 commands can be saved).
  • Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from been hurted by the reverse USB).
  • Servos power supply: DC (depends on the motors, generally 5V DC).
  • Control channels: 32. (can be controlled at the same time and the accuracy can be adjusted).
  • Dimensions: 60mm x 50mm x 1.6mm.
  • Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software).



Control Panel Information
Using manual

Package included:

  • 1 32-Channel Motor Controller Board.
  • 1 USB Cable.
